Honeywell FS-TSDI-1624 Safe Digital Input FTA

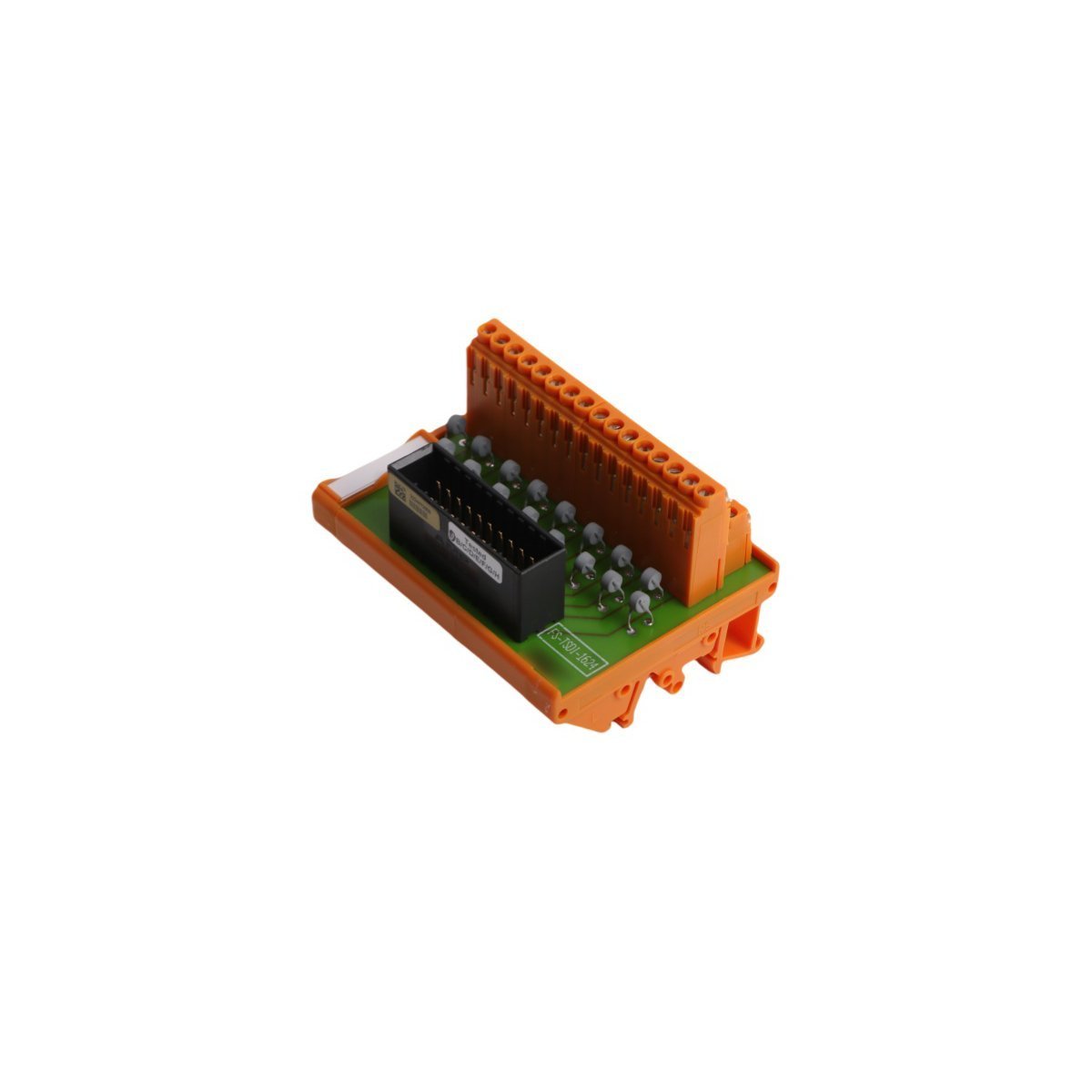

Configured for high-integrity signal acquisition within industrial safety systems, the Honeywell FS-TSDI-1624 (FS-TSDI-1624 Safe Digital Input FTA) provides direct electrical termination and interface for 16 discrete input channels.

Hardware Specifications

Safety System Execution & Signal Integrity

The Honeywell FS-TSDI-1624 module architecture focuses on high-availability signal processing within safety instrumented systems. To that end, the unit incorporates robust galvanic isolation between input channels; consequently, it effectively mitigates ground loops and transient interference common in field-level wiring. Moreover, the design incorporates comprehensive diagnostic routines that facilitate rapid fault detection. Furthermore, the module supports fail-safe state execution. In the event that an input fault or circuit degradation is detected, the module automatically forces output signals to a pre-defined safe state; in this manner, it maintains system stability. In addition to this, the FTA provides 2oo3 architecture compatibility when deployed in redundant configurations, thereby ensuring that individual channel discrepancies do not compromise the overall safety logic solver’s performance. Ultimately, through these coordinated processes, the module sustains both signal transparency and operational loop integrity across the entire safety lifecycle.

Frequently Asked Questions

Q: Does the FS-TSDI-1624 support hot-swapping under load?

A: Yes, the module is engineered for hot-swap operations within designated safety system backplanes, allowing for maintenance without interrupting the signal path of adjacent channels.

Q: How is the RS-485 communication terminated on this FTA?

A: The module features an integrated 50 ohm termination resistor to minimize signal reflections and ensure transmission stability across the field bus interface.

Field Installation Guidelines

• Mounting Stability: Secure the FTA to a panel or DIN-rail using the designated mounting holes. Ensure the surface is vibration-resistant to maintain long-term physical integrity of the terminal connections.
• Wiring Specifications: Utilize shielded twisted-pair cabling for all input signal runs. Terminate the shield at the cabinet ground bar to prevent electromagnetic interference (EMI) from inducing noise into the high-impedance input circuits.
• Termination Torque: Ensure all field wiring terminals are tightened to the manufacturer-specified torque limits to prevent intermittent contact resistance or physical loosening due to thermal cycling.
• Post-Installation Test: Verify input status loop-back at the control console to confirm correct mapping and signal scaling before transitioning the system to operational status.
