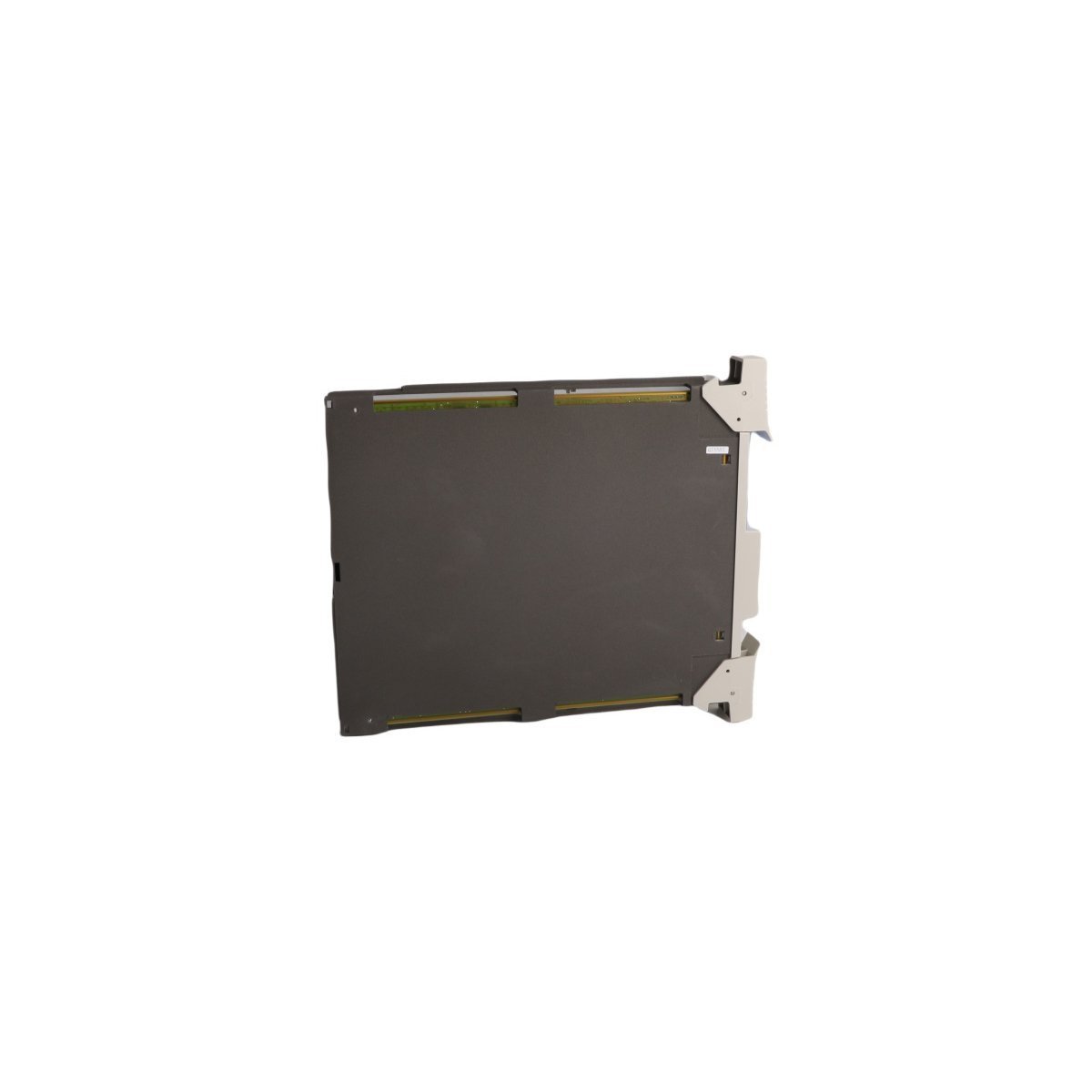

Honeywell MU-PAOX03 51304672-100 Analog Output Module

The Honeywell MU-PAOX03 (51304672-100) is a high-precision 4–20 mA analog output module designed for TDC 3000 and Experion PKS systems. It provides reliable control of field actuators with integrated diagnostics and support for redundant configurations.

Product Overview

The Honeywell MU-PAOX03, identified by part number 51304672-100, functions as a high-integrity Analog Output (AO) module specifically engineered for the TDC 3000 and Experion PKS control systems. Primarily, this module serves as a critical bridge between the digital control logic and the analog field environment. Consequently, it converts processed digital signals into precise 4–20 mA current loops, which are essential for driving final control elements such as proportional valves, actuators, and variable speed drives. By maintaining high signal fidelity, the MU-PAOX03 ensures that process variables remain within strict operational tolerances.

Technical Performance and Functional Features

Multi-Channel Output Capability: In addition to its safety-certified design, the module supports multiple independent output channels, which allows for the simultaneous control of several field devices from a single hardware footprint.
Redundancy Support: Furthermore, the MU-PAOX03 is designed for high-availability configurations. As a result, when paired with a redundant partner, it ensures continuous process control even in the event of a single module failure.
Precision Signal Regulation: To ensure maximum control accuracy, the internal circuitry utilizes advanced digital-to-analog conversion technology. Moreover, it provides low drift and high resolution across the entire signal range.
Comprehensive Fault Diagnostics: Regarding system reliability, the module continuously monitors the health of the output loops. Thus, it can detect and report open circuits or load discrepancies back to the controller for immediate operator intervention.
Robust Hardware Architecture: To withstand harsh industrial environments, the 51304672-100 is built with industrial-grade components. Consequently, it maintains stable performance under fluctuating electrical and thermal conditions common in process plants.

Operational Compatibility and Integration

System architects can easily incorporate the MU-PAOX03 into standard Honeywell High-Level Process Manager (HPM) or Advanced Process Manager (APM) cabinets due to its standardized mechanical design. In addition to its physical compatibility, the module integrates seamlessly with Honeywell’s configuration software, which simplifies the scaling and calibration of output signals. Moreover, because this module adheres to stringent international quality standards, it successfully meets the reliability requirements for mission-critical applications in the oil and gas, chemical, and power generation industries. Ultimately, these features combine to provide a dependable and scalable solution for modern DCS architectures.
