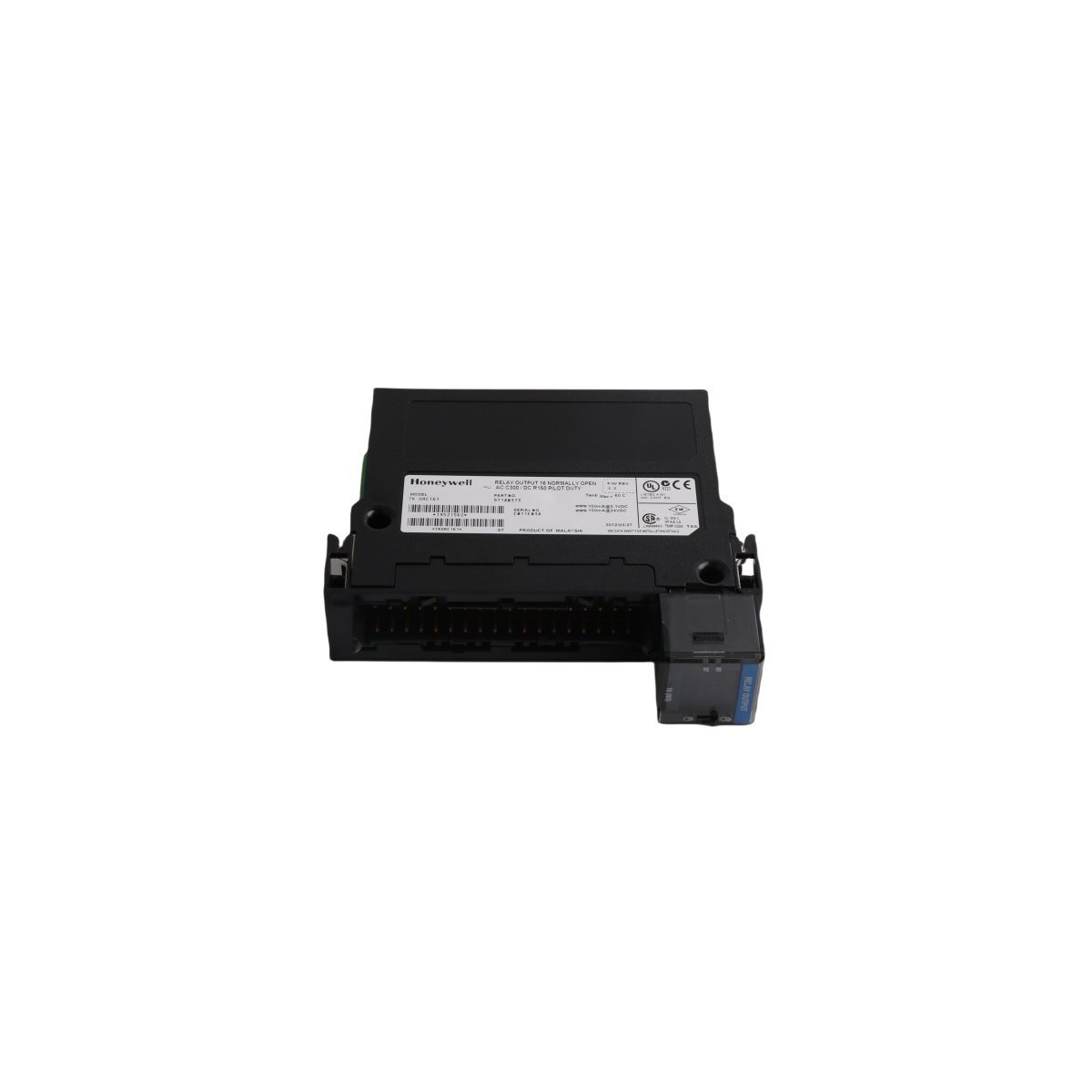

HONEYWELL TK-ODD321 24 VDC Digital Output Module

The HONEYWELL TK-ODD321 (Part Number: 97179573) is a high-density, 32-channel discrete direct current (DC) output module belonging to Honeywell’s Experion PKS / Experion LS Distributed Control System (DCS) architectures. Mounted directly on a Series C field termination assembly (FTA) or module carrier baseplate, it drives binary field devices such as solenoids, indicator lights, interposing relays, and small motor starters.

Hardware Specifications

Process Control & Automation System Integration

The TK-ODD321 utilizes a high-density Series C vertical form factor to minimize control panel footprint while maximizing available I/O count. The internal hardware logic contains optocoupled isolation barriers protecting the central Experion C300 controller backplane from field-side electrical surges and ground fault anomalies.

• Advanced Internal Diagnostics: The module continuously monitors internal circuit execution states and can identify short circuits or open lines when integrated with corresponding smart terminal assemblies.
• Synchronous Execution: Output states update deterministically in sync with the control processor’s execution periods, avoiding latency spikes during heavy system loads.
• Thermal and Vibration Resilience: Engineered without internal moving parts, it features low thermal emission characteristics and robust resistance to structural vibration profiles found near heavy industrial rotating machinery.

Field Installation Guidelines

1. Alignment and Seating: Align the Series C plastic housing with the guide rails on the active I/O termination baseplate. Push straight back until the dual mechanical retaining latches engage fully.
2. Field Power Verification: Confirm that auxiliary 24 VDC external supply loops are regulated and fused appropriately before switching on power to prevent overcurrent events across common terminal groupings.
3. Inductive Load Suppression: When driving inductive field elements (e.g., large mechanical relay coils or heavy-duty solenoids), place external suppression diodes across the load to arrest back-EMF voltage spikes.
