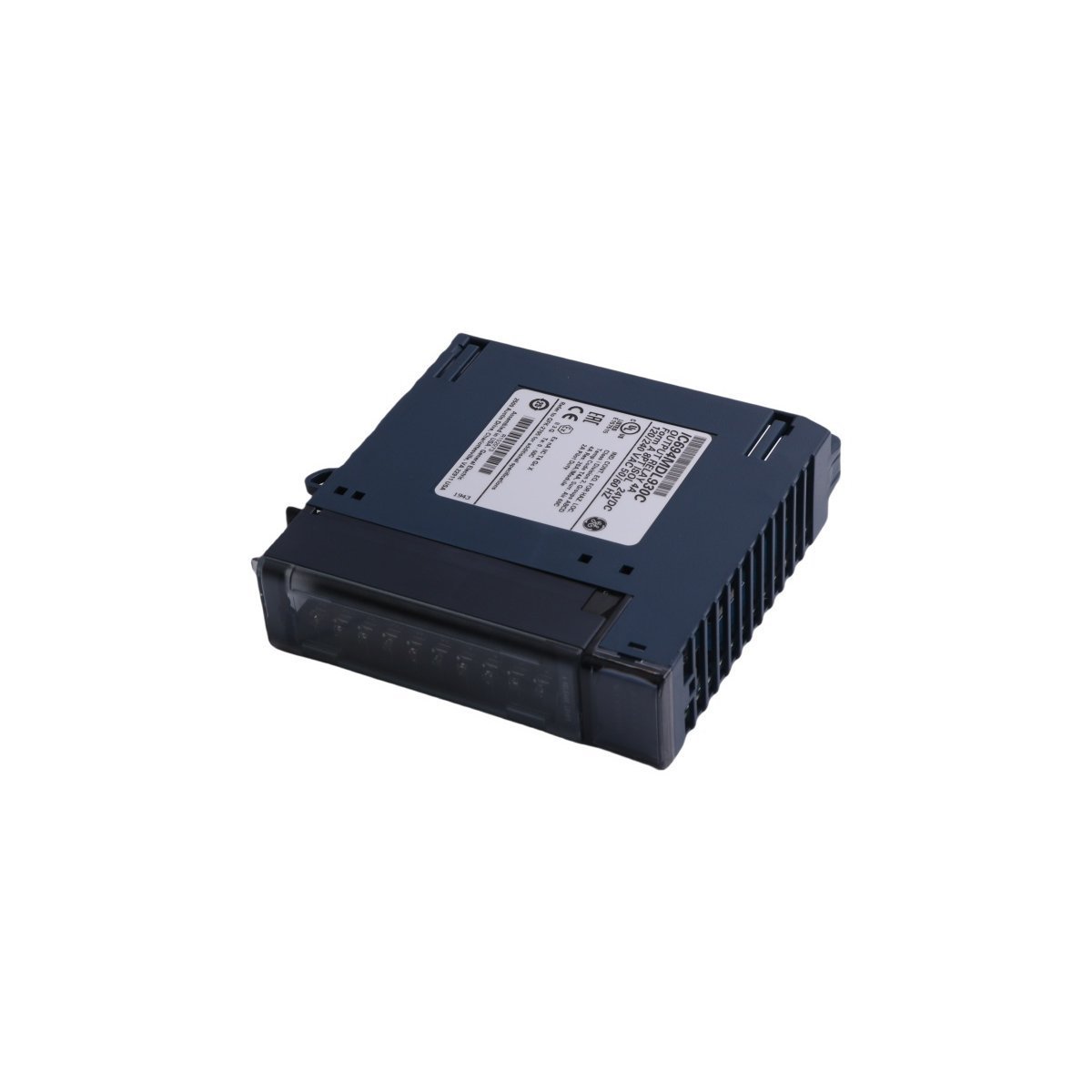

GE IC694MDL930 PACSystems RX3i Voltage Output Module
Sale!
SKU: IC694MDL930
GE IC694MDL930 PACSystems RX3i Voltage Output Module
Secure the authentic GE IC694MDL930 PACSystems RX3i relay voltage output module. Available in brand new original stock condition with global shipping. Request a technical quote to secure verified, high-isolation industrial hardware.
The GE IC694MDL930, also cataloged as the IC694MDL930 Voltage Output Module, operates as a dedicated hardware component for discrete circuit switching within PACSystems RX3i platforms. Configured as an 8-channel relay output interface, the module provides isolated contact execution between the high-speed controller backplane and external fields, managing inductive and resistive loads like solenoids, contactor coils, and industrial status indicators.
Hardware Specifications
Parameter
Specification
Model
IC694MDL930
Brand
GE
Origin
USA
Weight
0.3 kg
Dimensions
3.5 x 13.2 x 13.5 cm
Operating Temp
0 to 60 deg C
Power Consumption
120 mA at 5 VDC via backplane
Module Type
Voltage Output Module (Relay Output)
Output Channels
8 isolated Form A (Normally Open)
Voltage Range AC
5 to 250 VAC (120/240 VAC nominal)
Voltage Range DC
5 to 30 VDC (24 VDC nominal)
Current Rating (Resistive)
4 A maximum per channel
Current Rating (Pilot Duty)
2 A maximum per channel
Minimum Load Current
10 mA per channel
Turn-On / Turn-Off Time
15 ms maximum (typical)
Channel-to-Channel Isolation
250 VAC continuous / 1500 VAC for 60 seconds
System Platform
PACSystems RX3i / Series 90-30 baseplates
HS Code
8537101190
Backplane Bus Communication Velocity and Firmest I/O Status Diagnostics
The module interfaces directly through the unified backplane bus communication velocity architecture of the RX3i chassis, allowing deterministic status processing within the master CPU execution cycle. The front panel features eight independent diagnostic LED indicators connected directly to the coil-side drive circuitry to verify the state of each logical channel. For distributed operations, firmware flash compatibility supports deployment in remote I/O terminal racks managed via Profinet or EtherNet/IP interface adapters, preserving data update speeds across network links.
Frequently Asked Questions
Q: Why does each of the 8 relay channels possess an independent common terminal?
A: The provision of separate common terminals establishes complete electrical isolation between channels, allowing a single module to concurrently switch mixed voltage types (e.g., 24 VDC on Channel 1 and 240 VAC on Channel 2).
Q: What are the thermal current limitations for this hardware when all channels are energized?
A: While each individual channel supports up to 4 A resistive load, the cumulative maximum load current across the entire module terminal block is capped at 30 A under UL operating conditions.
Q: Can this module be hot-swapped in an active PACSystems RX3i backplane slot?
A: No. Prior to extracting or inserting the module into the baseplate slot, all field-side power lines and chassis backplane power must be fully isolated to prevent arcing and internal logic degradation.
Field Installation Guidelines
Terminal Assembly Seating: Verify that the high-density terminal block latch is locked prior to applying field voltage. Ensure the module chassis is fully inserted into the RX3i baseplate slots to achieve a continuous electrical bond with the carrier ground bar.
Inductive Surge Suppression: Install external suppression devices across all inductive loads. Use RC networks for AC circuits and commutating diodes for DC circuits to clear voltage spikes and extend the operational life of the internal silver alloy contacts.
Conduit and Wire Separation: Track low-voltage communication lines through separate physical paths away from the 250 VAC field switching wires terminating at the module front face to suppress electromagnetic noise cross-talk.
Configured for signal distribution in DeltaV M-series I/O Subsystem networks, the Emerson KJ4001X1-CA1 12P0623X072 (KJ4001X1-CA1 4-Wire Terminal Block) provides direct physical/electrical execution.
The KJ4001X1-CA1 functions as a passive interconnect interface within the DeltaV DCS architecture and facilitates direct field-to-I/O card connectivity. This terminal block secures 4-wire field signal connections and ensures consistent electrical continuity for both analog and discrete signal loops. Field engineers must follow DeltaV backplane wiring standards to maintain signal integrity and prevent impedance mismatches throughout the control loop. The design accommodates high-density terminal mounting and provides a structured physical path for 4-20 mA HART loop protocol signals, which standard process instrumentation requires.
Frequently Asked Questions
Q: Does the KJ4001X1-CA1 terminal block require external power for operation?A: No, this is a passive component. It functions solely as a physical connection interface for field wiring to the I/O subsystem backplane.Q: Is this module compatible with live field-wiring replacement?A: The terminal block supports field-wiring termination maintenance, but users must ensure the associated I/O card is powered down or in a safe state before disconnecting wiring to avoid accidental loops or short circuits.
Field Installation Guidelines
Mount the terminal block securely onto the designated DIN-rail within the DeltaV I/O carrier.
Ensure all terminal screws are tightened to the torque specifications provided in the DeltaV installation manual to prevent high-resistance contact points.
Verify wire gauges comply with terminal specifications to ensure mechanical stability.
Maintain proper wire dressing and cable tie-down spacing to prevent mechanical stress on the terminal connectors.
Ground the cable shields according to standard DCS loop-wiring practices to minimize electromagnetic interference (EMI) ingress into the analog signal path.
Configured for high-density signal distribution in DeltaV M-series I/O Subsystem networks, the Emerson KJ4001X1-BE1 12P0818X072 (KJ4001X1-BE1 8-Wide IO Carrier) provides direct physical/electrical execution.
Suffix Breakdown & Model Matrix
Model
Description
KJ4001X1-BE1
DeltaV M-series 8-wide I/O carrier with integrated shielding
The KJ4001X1-BE1 acts as the physical backbone for M-series I/O card mounting and signal termination. This carrier features a shielded design to isolate backplane communications from external electromagnetic interference (EMI). It supports 8-wide module placement, facilitating high-density I/O configurations while maintaining strict electrical separation between signal loops. The carrier integrates with the DeltaV system bus to manage data throughput and power distribution across all installed I/O modules. Users must adhere to proper shielding ground practices to ensure the 4-20 mA HART loop protocol signals maintain their rated accuracy during transmission.
Frequently Asked Questions
Q: Does the carrier support hot-swapping of I/O modules?A: Yes, the DeltaV M-series backplane architecture supports the removal and insertion of I/O modules while the carrier is energized, provided the specific I/O module type allows for such operations under the defined safety and process conditions.Q: How does the integrated shielding function?A: The carrier incorporates a conductive chassis plane that connects to the system earth ground. This plane acts as an EMI shield for the underlying bus communication traces, preventing noise coupling into sensitive analog input circuits.
Field Installation Guidelines
Mount the carrier horizontally on a standard DIN-rail or chassis plate within the control cabinet.
Verify that the carrier backplane ground lug connects securely to a low-impedance earth ground to satisfy EMI protection requirements.
Ensure all I/O modules seat firmly into the connector slots to prevent backplane bus communication timeouts or intermittent signal loss.
Maintain adequate clearance above and below the carrier to facilitate heat dissipation and cabling access.
Inspect all terminal blocks for loose connections after installation to ensure low-resistance contact for all signal and power circuits.
The GE IC200TBM002, also cataloged as the IC200TBM002 I/O terminal block, operates as a dedicated hardware component for signal distribution and wiring termination within VersaMax PLC systems. Configured for high-density I/O routing, the block provides direct physical execution of signal bussing through 18 integrated IEC-compliant box-style terminals. This module facilitates electrical interfacing for input/output carriers and interposing terminals, ensuring standardized connectivity for industrial field wiring.
Hardware Specifications
Parameter
Specification
Model
IC200TBM002
Brand
GE
Origin
USA
Weight
0.06 kg
Dimensions
11.0 cm x 3.5 cm x 3.0 cm
Operating Temp
Standard Industrial Range
Power Consumption
Passive (No active components)
Voltage Rating
264 VAC (Up to 300 VAC tolerance)
Current Rating
8 A
PLC and Control Network Integration
The VersaMax series utilizes modular backplane bus communication velocity and deterministic synchronization to manage distributed I/O blocks. Moreover, firmware flash compatibility within the host CPU allows for systematic updates across the network, thereby ensuring that hardware configurations remain consistent with logic execution cycles. In addition, I/O density scaling is supported through the flexible mounting interface, which enables the system to expand without exceeding the timing constraints of the host bus. Finally, Profinet and EtherNet/IP deterministic network integration requirements are managed upstream via communication modules, while the IC200TBM002 serves as the physical termination point for local field signals.
Frequently Asked Questions
Q: Does the IC200TBM002 provide electrical isolation between terminals?A: The IC200TBM002 features 18 internally-bussed terminals. It is electrically isolated from the I/O carrier interface; however, within the block itself, the terminals are bussed together to provide a common electrical potential.Q: What is the maximum wire gauge supported by the terminal block?A: The terminal block accommodates solid or stranded wires ranging from AWG #22 to AWG #14. It also supports the connection of two wires per terminal, provided the combined gauge does not exceed AWG #18.
Field Installation Guidelines
The module should be installed using the integrated mounting tabs on the top edge or secured via panel-mounting holes to ensure mechanical stability in high-vibration environments.
Ensure all field wiring is stripped to the appropriate length according to IEC standards before insertion into the box-style terminals to prevent short circuits.
When utilizing the terminal block for power distribution, ensure that the cumulative current across the 18-point bus does not exceed the 8 Amp rating.
Verify proper seating within the insert-slots of the I/O carrier to ensure the mechanical and electrical integrity of the VersaMax I/O assembly.
