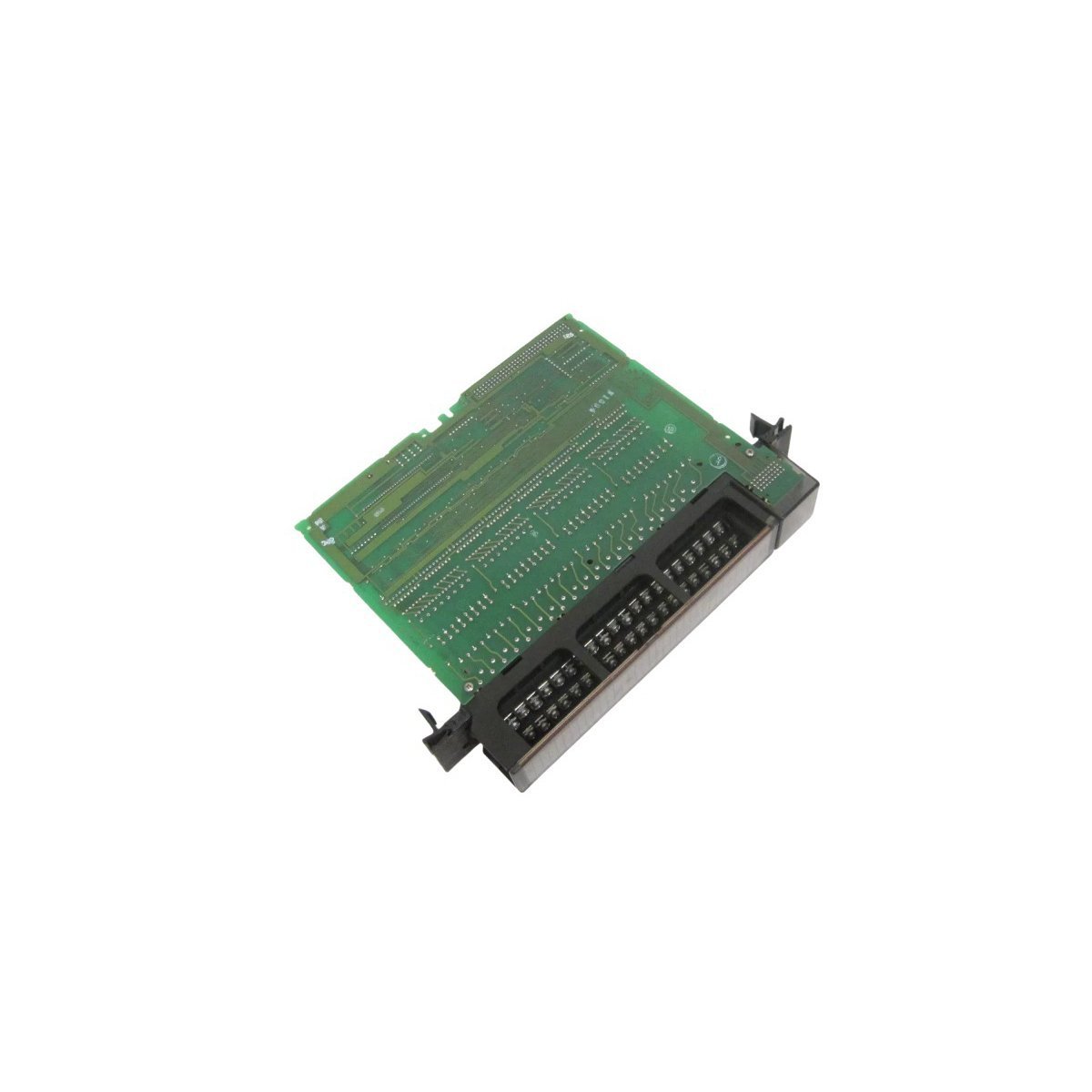

GE IC697MDL250 Discrete Input Module

Configured for discrete signal collection and processing in Series 90-70 networks, the GE IC697MDL250 (IC697MDL250 Discrete Input Module) provides direct physical/electrical execution.

Hardware Specifications

Industrial Control and Backplane Communication

The IC697MDL250 interfaces directly with the Series 90-70 backplane bus, enabling stable I/O density scaling and deterministic signal scanning cycles. Built-in logic filters and optocouplers manage channel-to-channel isolation parameters to mitigate high-frequency electrical noise across deterministic plant networks. The internal hardware architecture maintains continuous firmware flash compatibility with the primary rack controller, executing state transitions without introducing processing jitter or cycle latencies.

Frequently Asked Questions

Q: Does the IC697MDL250 support the insertion or removal of wiring blocks under field power?

A: No. Field power sources connected to the input points must be fully isolated before manipulating the field wiring terminal block to prevent unintended electrical paths or backplane current spikes.

Q: Can different AC voltage phases be applied concurrently across the input groups?

A: Yes. Because the 32 input points are divided into 4 isolated groups of 8 points each, separate AC phases can be assigned to distinct groups without risking cross-phase shorts.

Q: What is the mechanical orientation restriction when executing a rack layout install?

A: The module must be inserted vertically into a standard Series 90-70 slot to ensure unhindered thermal convection airflow across the internal components.

Field Installation Guidelines

1. Backplane Engagement: Verify the module aligns correctly with the upper and lower slot guides before seating. Push firmly until the backplane connectors are fully mated and secure the top latch mechanism.
2. Field Wiring and Routing: Route field AC wiring away from low-voltage communication buses to limit inductive cross-talk. Strip wires according to standard terminal block specifications to avoid exposed bare copper.
3. Thermal Clearances: Ensure that ventilation pathways at the top and bottom of the module housing remain unblocked. Ambient temperature around the rack assembly must not exceed 60 deg C during normal operating configurations.
