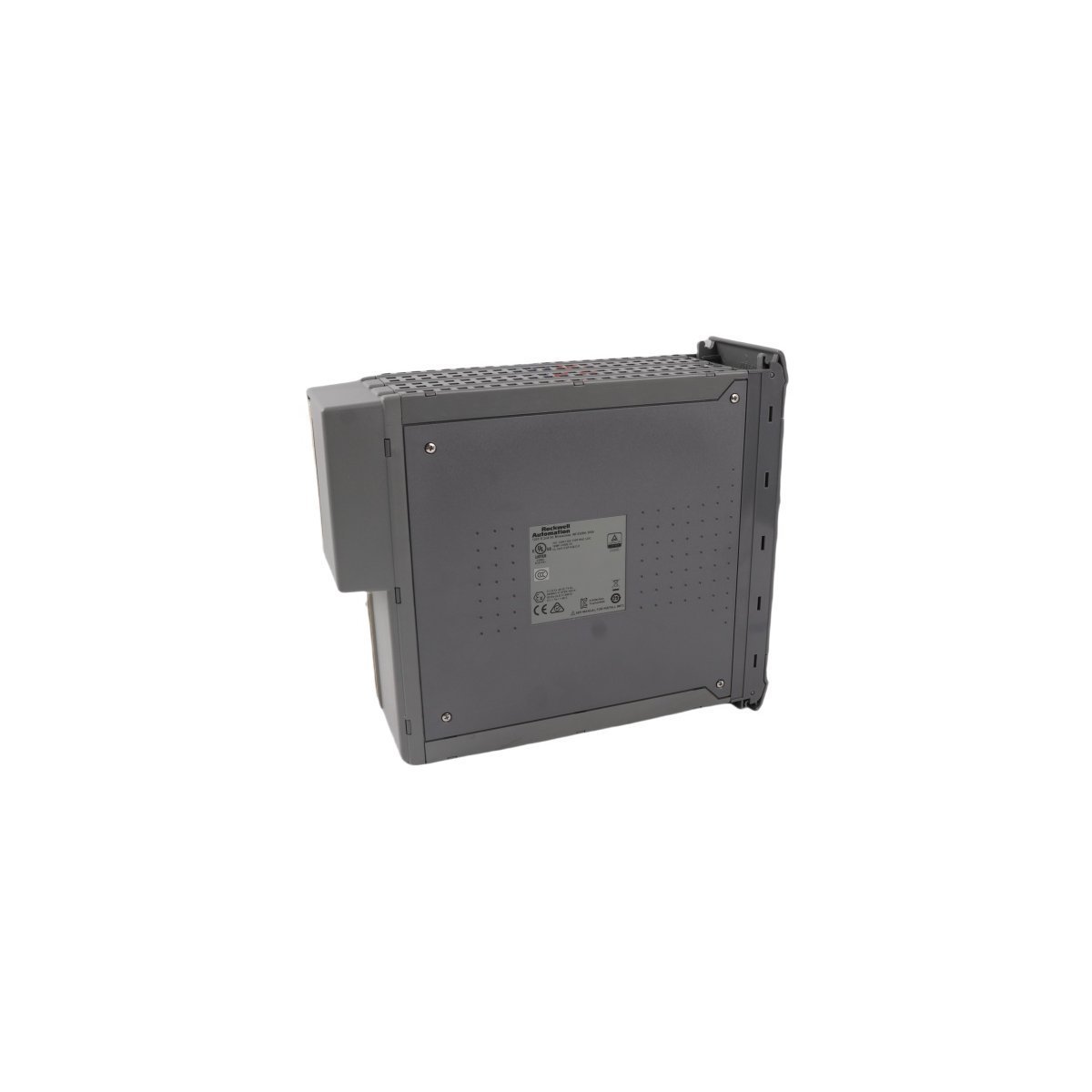

ICS Triplex T8111C Trusted Triple Modular Redundant (TMR) Processor

Technical Overview

The ICS Triplex T8111C serves as the primary logic solver for the Trusted TMR safety system, delivering unparalleled fault tolerance for high-availability industrial environments. This processor module actively executes complex safety control algorithms by utilizing a Triple Modular Redundant (TMR) architecture. By integrating three separate processing paths into a single unit, the T8111C continuously performs hardware-based voting to validate every logic decision. Consequently, it identifies and isolates internal discrepancies without interrupting the control process, ensuring that the system remains online even if a hardware fault occurs in one of the sub-processors.

Key Features and Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)
• Product Range: Trusted TMR Safety System
• Model Number: T8111C
• Device Type: Triple Modular Redundant (TMR) Processor
• Safety Integrity Level: Suitable for SIL 3 safety-instrumented functions
• Communication Support: Integrated Ethernet and high-speed peer-to-peer networking
• Physical Weight: 3.06 kg
• Unit Dimensions: 9.3 x 30.4 x 26.5 cm
• Country of Origin: USA

Functional Integration and Fault Tolerance

The T8111C coordinates the complexities of real-time data analysis by synchronizing three independent execution engines. This hardware actively monitors the status of all I/O modules across the Trusted backplane; consequently, it maintains absolute control over the safety loop from input to output. In addition to this internal voting, the module utilizes a high-bandwidth communication interface to facilitate rapid data exchange with other Trusted controllers.

Furthermore, the T8111C incorporates comprehensive self-diagnostic routines that run concurrently with the application logic. As a result of these constant health checks, the processor detects potential failures before they can impact plant safety. Moreover, the module supports a “hot-standby” configuration; accordingly, maintenance teams can replace or upgrade processor units without shutting down the controlled process. In light of these features, the system provides a deterministic and resilient platform for the most demanding automation tasks.

Application and Reliability

Control engineers specify the ICS Triplex T8111C for mission-critical infrastructure, including nuclear power facilities, chemical processing plants, and offshore oil platforms. The module provides a ruggedized design that effectively resists the thermal stress and electromagnetic interference (EMI) typical of heavy industrial zones. Beyond its physical durability, the TMR processor facilitates the execution of intricate protective functions, thereby protecting personnel and preventing environmental catastrophes.

Because the module adheres to strict international safety standards, it ensures that industrial processes remain compliant with rigorous regulatory requirements. Ultimately, the T8111C delivers the dependable performance and innovative redundancy required to manage high-stakes operations, thus upholding the operational integrity of global safety systems. By virtue of its field-proven reliability, this processor remains a foundational component for engineers who prioritize maximum uptime and risk mitigation.
