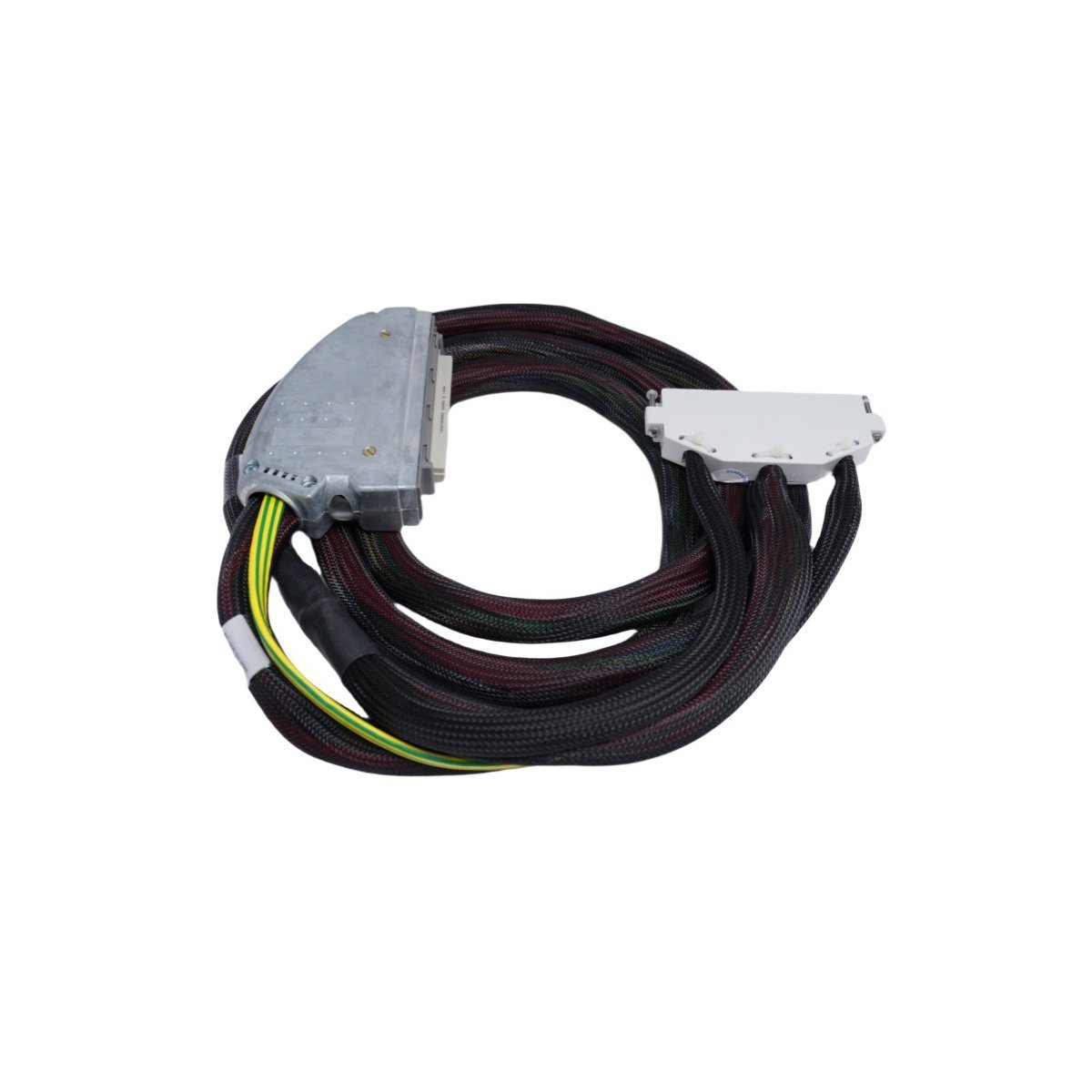

ICS Triplex TC-501-02-6M5 Trusted TMR I/O SmartSlot Cable

Technical Functionality

The ICS Triplex TC-501-02-6M5 acts as a high-integrity SmartSlot I/O Cable within the Trusted TMR (Triple Modular Redundant) safety system. This specific cable facilitates the critical connection between Trusted 40-channel input modules and their corresponding Field Termination Assemblies (FTA). By utilizing a SmartSlot configuration, this cable actively enables the “intelligent” replacement of modules, allowing a standby module to be located in a remote slot rather than an adjacent one. Consequently, it maintains the communication link between active and standby modules during a hot-swap procedure, ensuring that the safety system maintains continuous, uninterrupted protection of the process.

Operational Performance

This cable delivers superior signal protection through its Low Smoke Zero Halogen (LSZH) insulation, which ensures safety in high-density control rooms by minimizing toxic emissions during a fire. Because the TC-501-02-6M5 features a 96-way type ‘C’ connector in a double-width hood, it provides a secure, vibration-resistant physical interface for TMR signal paths. Furthermore, the cable’s 6.5-meter length provides engineers with the flexibility to mount I/O modules and field terminations in separate cabinets or distant rack positions. This distance is bridged without compromising signal integrity, as the cable is specifically shielded to mitigate the effects of crosstalk and electromagnetic interference (EMI) commonly found in heavy industrial environments.

Key Technical Characteristics

• SmartSlot Connectivity: Enables the “SmartSlot” hot-swap feature, allowing module pairing across non-adjacent chassis slots.
• 40-Channel Input Support: Designed specifically to handle the high-density signal traffic of Trusted TMR input modules.
• LSZH Insulation: Features a “02” suffix, denoting Low Smoke Zero Halogen material for enhanced safety and compliance with IEC 60332-3.
• Precision Length: The “6M5” designation specifies a 6.5-meter length, optimized for cross-cabinet wiring.
• Double-Width Hood: Incorporates a robust 96-way connector housing that includes an earth braid for safety grounding.
• High Reliability: Manufactured to meet the stringent deterministic requirements of SIL 3-certified safety systems.
• Internal Routing Design: Optimized for internal cabinet use with nylon sheathing to prevent fraying and mechanical wear.

Primary Industrial Applications

• Emergency Shutdown Systems (ESD): Linking 40-channel safety input modules to remote FTAs in petrochemical refineries.
• Fire and Gas Protection: Managing the distributed wiring of gas detectors and flame sensors across multiple equipment racks.
• Hot-Swap Management: Facilitating the remote-slot module replacement strategy in high-availability SIL 3 systems.
• Cross-Cabinet Integration: Interconnecting I/O chassis in complex safety installations where space constraints require separated modules and terminations.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Number: TC-501-02-6M5
• Product Series: Trusted TMR
• Cable Type: I/O SmartSlot V2 Internal Input Cable
• Insulation Material: Low Smoke Zero Halogen (LSZH)
• Length: 6.5 Meters
• Connector Type: 96-way Type ‘C’ (Chassis End) to FTA Connector
• Weight: 1.2 kg
