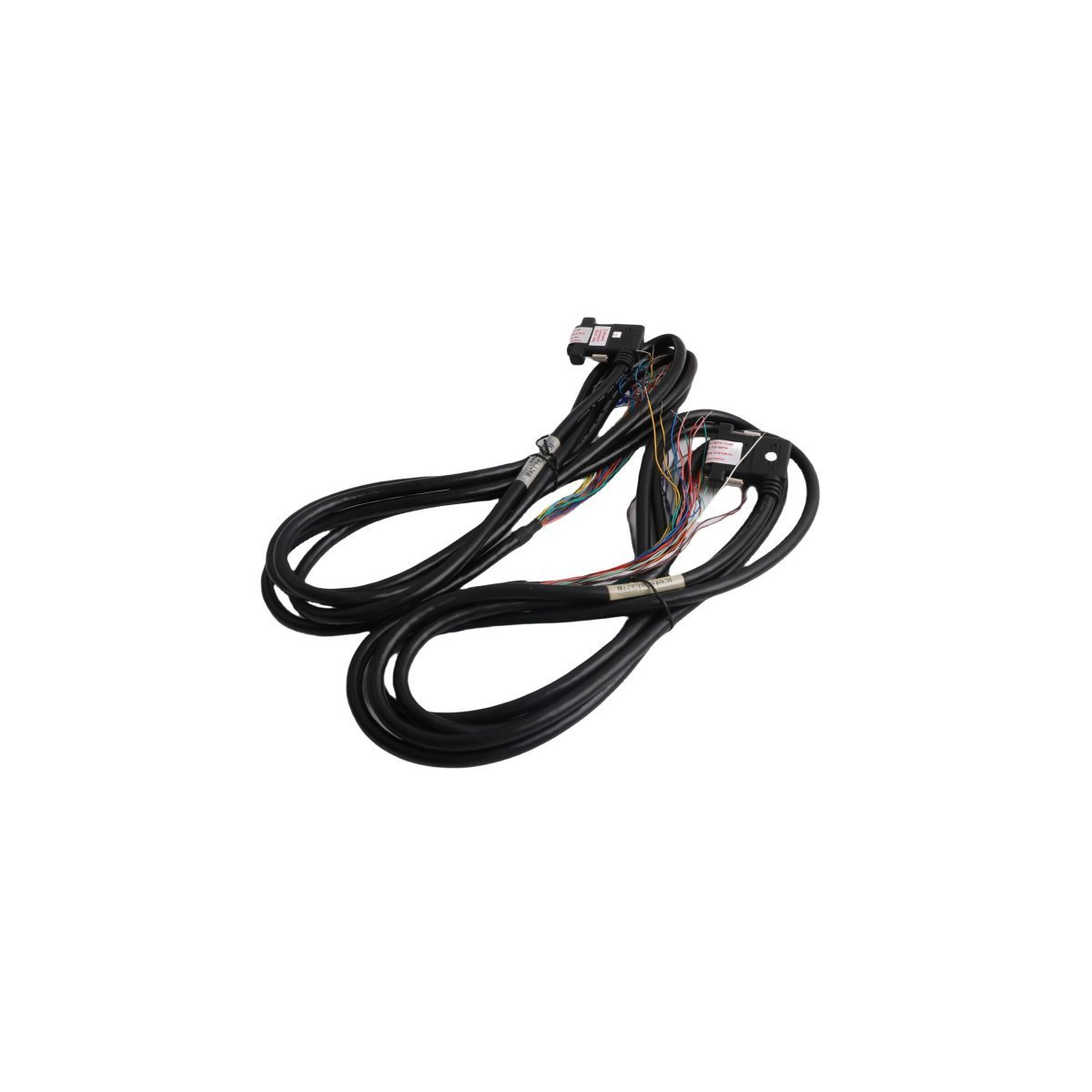

GE Fanuc IC693CBK001 Terminal Block Quick Connect Cable

The GE Fanuc IC693CBK001 is a 3-meter right-angle cable kit for Series 90-30 32-point I/O modules. It includes the IC693CBL327 and IC693CBL328 cables with 24-pin connectors and flying leads. This kit provides a durable, high-density connection for IC693 series modules in demanding PLC applications.

Request a Quote

The GE Fanuc IC693CBK001 is a specialized high-density I/O cable kit for the Series 90-30 PLC range. This kit facilitates the connection between 32-point I/O modules and external field wiring or terminal blocks. By using right-angle connectors, the assembly significantly reduces mechanical stress on the module faceplate. Consequently, it ensures long-term signal integrity in high-vibration industrial environments. The kit contains two separate cables designed to interface with the dual-connector layout of high-density modules.

Technical Specifications

FeatureDetails
ManufacturerGE Fanuc (Emerson)
Model NumberIC693CBK001
System SeriesSeries 90-30
Component TypeI/O Cable Kit (Right Angle)
Included CablesIC693CBL327 (Left), IC693CBL328 (Right)
Connector Type24-Pin High-Density
Cable Length3 Meters (approx. 10 feet)
Current Rating1.2 Amps per pin
Weight0.14 kg

Core Technical Characteristics

  • Optimized Connector Geometry: Right-angle plugs allow for tighter cabinet installs by minimizing the front-panel clearance.
  • Dual Cable Configuration: The kit includes both the IC693CBL327 and IC693CBL328 cables for complete 32-point coverage.
  • Versatile Termination: One cable end features a pre-wired connector while the other offers stripped flying leads.
  • Enhanced Compatibility: This kit works perfectly with IC693MDL654, IC693MDL655, IC693MDL752, and IC693MDL753 modules.
  • Robust Load Handling: Each conductor supports up to 1.2 Amps for reliable power distribution to field sensors.
  • Improved Durability: Heavy-duty insulation protects signals from electromagnetic interference and mechanical wear.

System Applications

Automation engineers typically use the IC693CBK001 in high-density digital I/O applications. It replaces older straight-connector styles to improve wire duct management within control panels. Furthermore, the 3-meter length provides sufficient reach for most floor-standing industrial enclosures. This kit is essential for projects involving the migration or maintenance of Series 90-30 PLC hardware. It provides a standardized solution for connecting generic terminal blocks to proprietary GE high-density ports.
