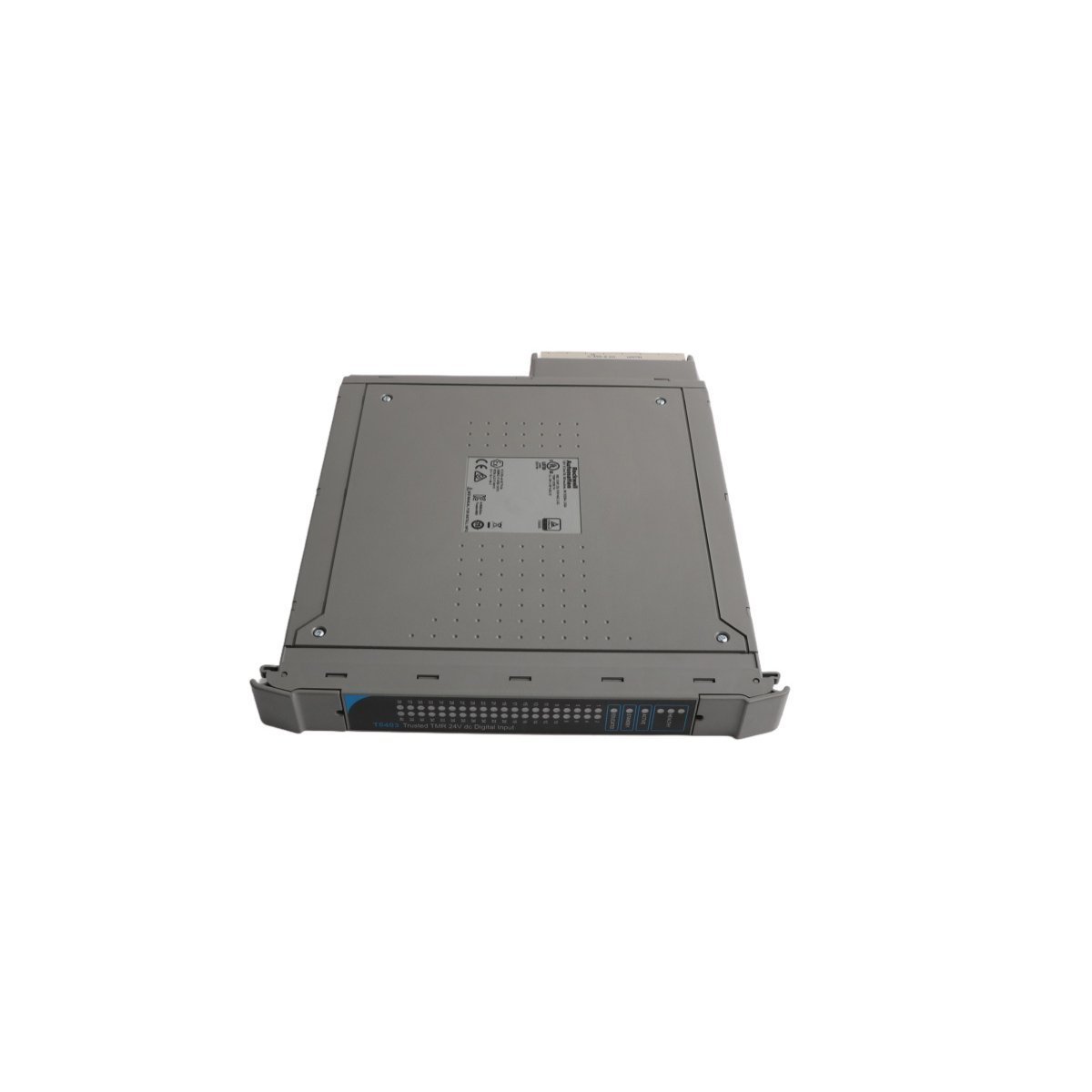

ICS Triplex Trusted T8403C 40-Channel Digital Input Module

Product Overview

The ICS Triplex T8403C functions as a high-density digital input interface specifically engineered for the Trusted Triple Modular Redundant (TMR) System. Primarily, this module monitors discrete signals from field devices such as sensors, switches, and contacts, converting them into processed data for the safety controller. Consequently, it plays a vital role in critical safety-instrumented functions (SIF) where signal accuracy determines the system’s ability to protect industrial assets. By utilizing a triplicated architecture, the T8403C ensures that the safety system remains operational and fault-tolerant even in the presence of a hardware failure.

Technical Performance and Functional Features

• Triplicated Input Processing: In addition to its 40-channel capacity, the module routes every incoming signal through three independent processing paths. The hardware then executes a majority voting process. As a result, the system eliminates single points of failure and maintains high signal integrity.
• Comprehensive Self-Diagnostics: Furthermore, the T8403C performs continuous internal self-tests to identify overt and covert faults. Because the module executes these diagnostics in real-time, it guarantees the reliability of the input data without requiring manual testing intervals.
• Advanced Line Monitoring: To secure the field-side wiring, the module incorporates sophisticated line-monitoring circuitry. Thus, it detects open-circuit and short-circuit conditions on the field lines, allowing the controller to distinguish between a genuine process signal and a cabling fault.
• Robust Electrical Isolation: Regarding system protection, the unit features galvanic isolation between the field inputs and the internal communication bus. Consequently, it prevents electrical transients and noise from reaching the sensitive central processing units.
• High-Speed Event Processing: Moreover, the module supports fast scan rates and precise signal acquisition. This capability ensures that the system identifies rapid state changes in time-critical emergency shutdown (ESD) and fire and gas (F&G) applications.

Operational Compatibility and Integration

System engineers seamlessly install the T8403C into the Trusted Controller or Expansion Chassis due to its standardized mechanical design. In addition to its physical reliability, the module supports both active-standby and SmartSlot configurations, which allows for effortless online maintenance. Furthermore, because the T8403C meets the rigorous requirements for SIL 3 safety systems, it successfully satisfies the regulatory demands of the global energy and petrochemical sectors. Ultimately, these features combine to provide a scalable and highly diagnostic solution for large-scale digital monitoring.

Technical Specifications Summary

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Designation: T8403C
• Product Series: Trusted TMR System
• Module Type: 40-Channel Digital Input (DI)
• Architecture: Triple Modular Redundant (TMR)
• Input Voltage: 24V DC
• Safety Integrity Level: SIL 3 Capable
• Operating Temperature: 0°C to +60°C
