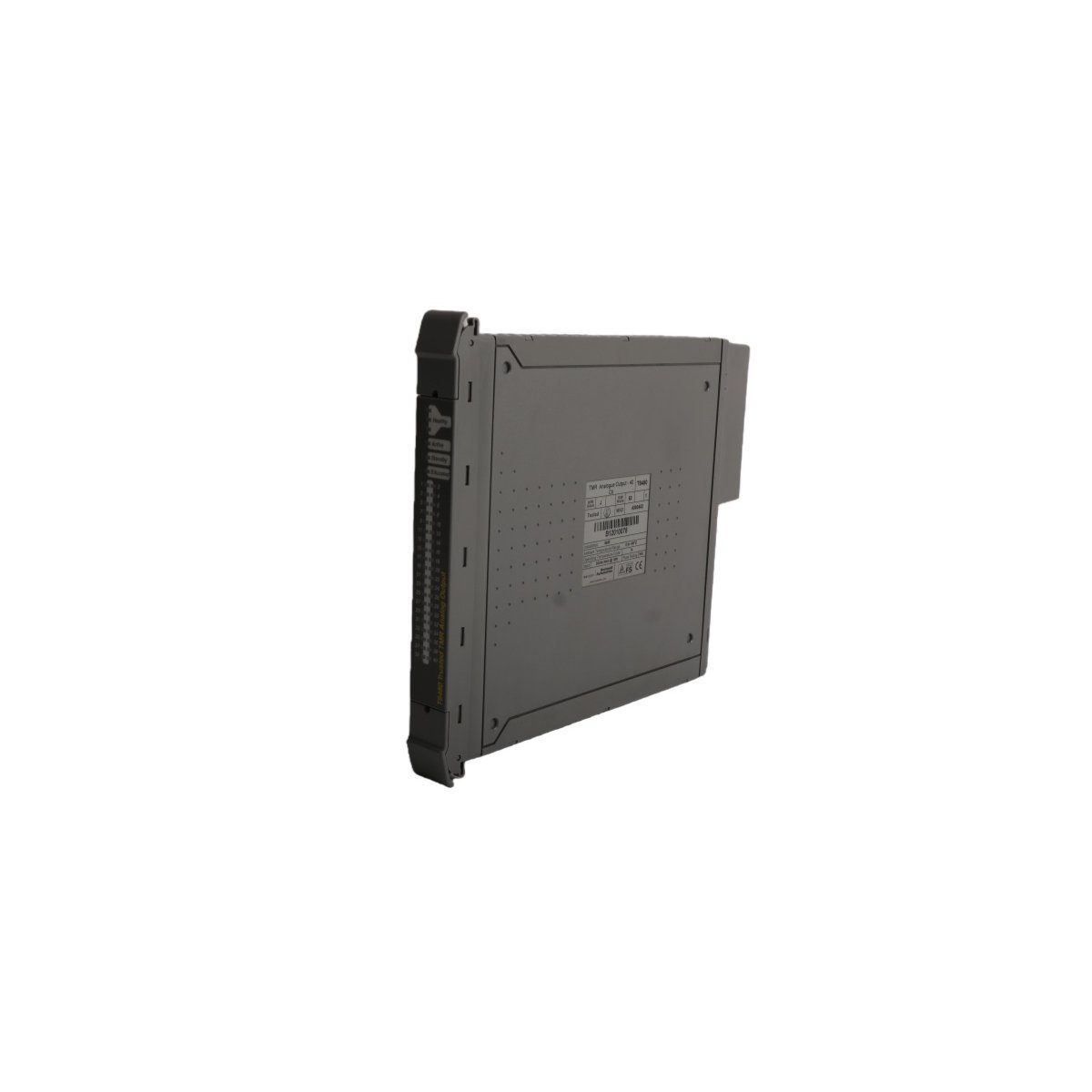

ICS Triplex Trusted TMR T8901 Digital Output Module / AC Voltage Detector

Product Description

The ICS Triplex T8901 serves as a high-integrity Digital Output module specifically engineered for the Trusted TMR (Triple Modular Redundant) system. This powerhouse module provides 40 TMR output channels, which ensure fail-safe performance in the world’s most demanding industrial safety and control applications. Although it primarily functions as a digital output driver for 24V DC and 48V DC loads, operators also utilize it in specialized configurations as a high-accuracy AC Voltage Detector. In this role, it monitors phase stability and voltage presence within critical power loops to maintain system equilibrium.

Furthermore, the T8901 module utilizes a fault-tolerant architecture. This design guarantees that a single internal component failure will not result in a loss of safety functions or cause a nuisance trip. To enhance reliability, the module performs continuous self-diagnostics and rigorous line monitoring. These processes actively detect open circuits and short circuits in the field wiring before they can cause operational failures. Consequently, the T8901 stands as an essential component for Emergency Shutdown (ESD), Fire and Gas (F&G) systems, and Turbomachinery Control. Finally, its robust 1.26 kg frame dissipates heat effectively, which ensures long-term reliability even in high-density rack configurations.

Technical Specifications and Features

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Number: T8901
• Product Range: Trusted TMR System
• Module Type: Digital Output / AC Voltage Detector
• Channel Density: 40 TMR Output Channels
• Voltage Compatibility: Supports 24V DC and 48V DC architectures
• Safety Integrity: SIL 3 rated for safety-critical applications
• Fault Tolerance: Triple Modular Redundancy (TMR) for zero-downtime operation
• Weight: 1.26 kg
• Dimensions: 3.0 x 30.2 x 26.5 cm
