SKU: KFD2-STC5-1

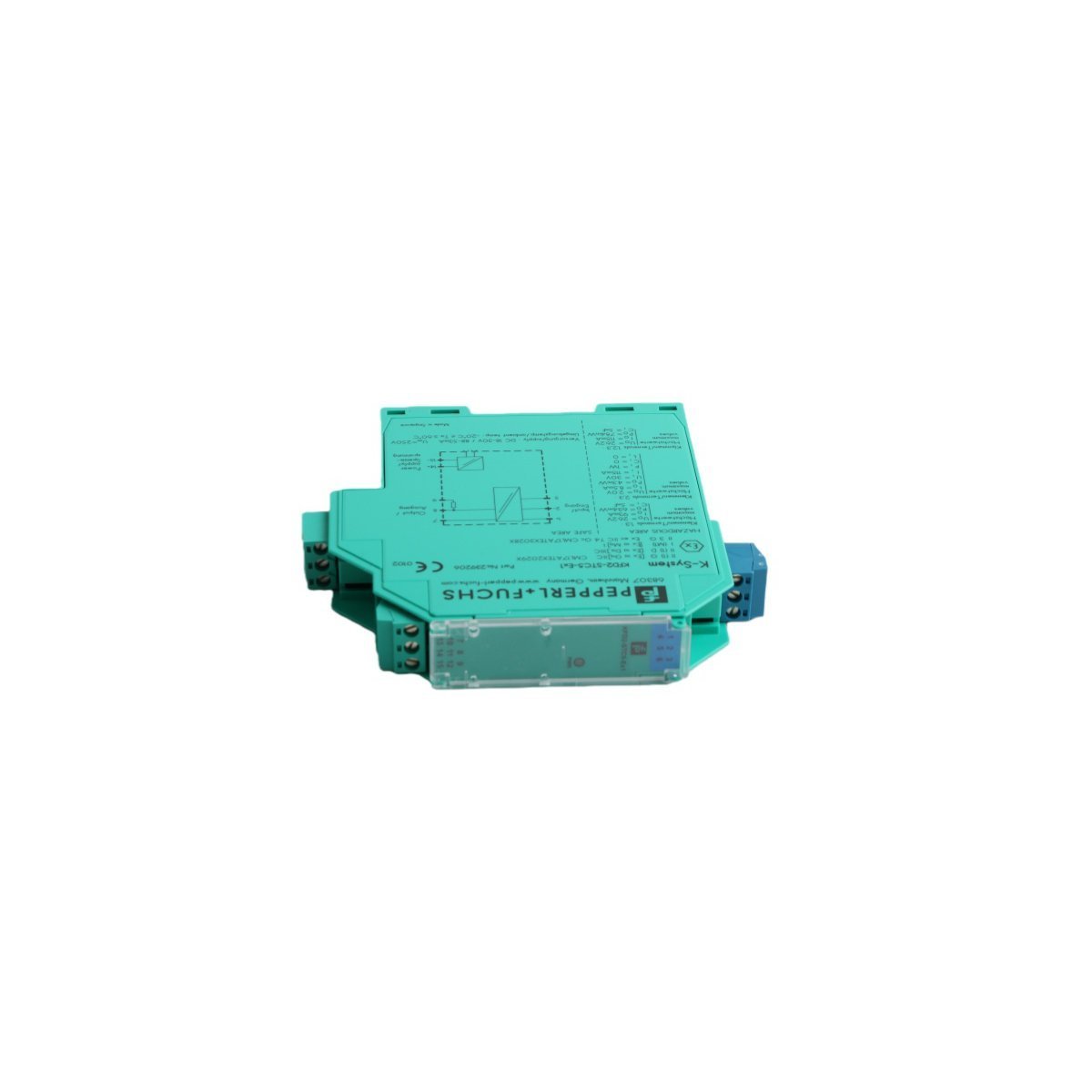

Pepperl+Fuchs KFD2-STC5-1 SMART Transmitter Power Supply

The Pepperl+Fuchs KFD2-STC5-1 is a SMART transmitter power supply providing isolated 4-20 mA signal conditioning for 2-wire and 3-wire sensors. Featuring HART transparency, SIL 2 safety integrity, and 3-way galvanic isolation, this K-System module ensures precise data acquisition and robust circuit protection in industrial automation environments.

Signal Conditioning and Power Distribution

The Pepperl+Fuchs KFD2-STC5-1 serves as a high-performance signal conditioner and transmitter power supply within the K-System portfolio. This device actively powers 2-wire SMART transmitters and also supports 3-wire voltage sources, converting the field signal into an isolated 4-20 mA output. By providing a stable 24 VDC supply to field instrumentation, the module ensures that sensors deliver accurate data to the control system. Furthermore, the KFD2-STC5-1 features bi-directional communication capabilities, which allows HART protocol signals to pass seamlessly between the field device and the workstation for remote configuration and monitoring.

Galvanic Isolation and Safety Integrity

To protect the control environment from electrical disturbances, the KFD2-STC5-1 utilizes robust 3-way galvanic isolation between the input, output, and power supply. This architectural design effectively eliminates ground loop errors and shields the PLC/DCS analog inputs from high-voltage transients. Additionally, the module adheres to strict safety standards, making it suitable for high-reliability applications where signal purity is paramount. Because it belongs to the K-System family, the unit mounts easily onto a standard 35 mm DIN rail and can receive power through the integrated Power Rail system, which significantly reduces manual wiring and simplifies cabinet organization.

Diagnostic Monitoring and Maintenance Efficiency

Pepperl+Fuchs has engineered the KFD2-STC5-1 with integrated diagnostic features to maximize process uptime. The module includes a dedicated front-panel LED that indicates the status of the power supply, allowing technicians to verify operational health at a glance. Consequently, this transparency streamlines troubleshooting during commissioning or routine maintenance cycles. Moreover, the module supports a high-density housing design, enabling plant operators to pack more control loops into a smaller footprint. By maintaining precise signal conversion and providing ruggedized circuit protection, the KFD2-STC5-1 functions as a critical interface in chemical, pharmaceutical, and energy production facilities.
