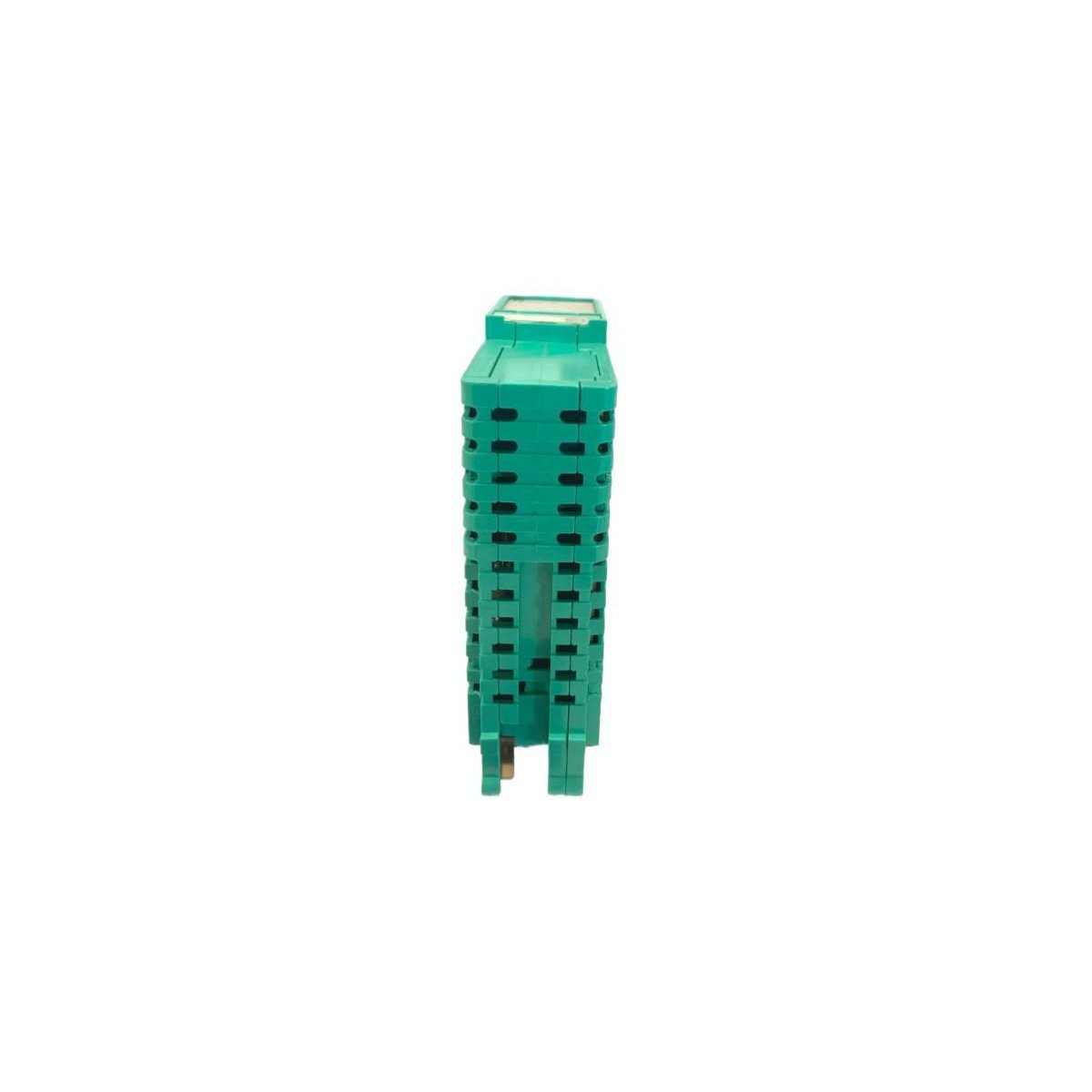

Pepperl+Fuchs LB9006C LB System Power Supply Module

Efficient Power Conversion and Distribution

The Pepperl+Fuchs LB9006C functions as a high-efficiency power supply module designed specifically for the LB Remote I/O system. This module converts an incoming 24 VDC source into the stabilized internal voltage required to drive the communication bus and field modules within a backplane. By providing a clean and consistent power stream, the LB9006C ensures that sensitive electronic components operate without interference from supply fluctuations. Furthermore, the unit supports redundancy in high-availability applications, where two power modules work in tandem to prevent system-wide failures if one source is compromised.

Safety Certification and Hazardous Area Use

To meet the strict requirements of oil, gas, and chemical processing, the LB9006C features full certification for installation in Zone 2 or Class I, Division 2 hazardous areas. The module incorporates advanced energy-limiting circuitry to maintain safety standards in explosive atmospheres. Additionally, the galvanic isolation between the input power and the internal system bus prevents electrical faults from propagating through the control network. Because the module utilizes a ruggedized housing, it maintains peak performance even when exposed to the corrosive or humid conditions typical of industrial field environments.

Intelligent Monitoring and Modular Maintenance

Pepperl+Fuchs has integrated proactive diagnostic capabilities into the LB9006C to streamline maintenance and increase uptime. The module features front-facing LED indicators that provide immediate visual feedback on input status, output health, and potential fault conditions. Consequently, technicians can quickly verify the power state of an I/O station without specialized test equipment. Moreover, the hardware supports hot-swapping on the backplane, allowing for the replacement of a power unit during active operations without disrupting the data flow of connected I/O modules. This design philosophy significantly reduces the Mean Time to Repair (MTTR) for critical automation infrastructure.

Technical Specifications

• Manufacturer: Pepperl+Fuchs
• Product Family: LB Remote I/O System
• Model Number: LB9006C
• Device Type: Power Supply Module
• Input Voltage: 24 VDC (Typical range 18 V to 32 VDC)
• Power Consumption: Approximately 45 W
• Output Power: Internal Bus Power for I/O Modules
• Redundancy Support: Yes (When used with compatible backplanes)
• Hazardous Area Rating: ATEX/IECEx Zone 2, Class I, Div. 2
• Operating Temperature: -20°C to +60°C
• Isolation: Galvanic isolation between input and bus
• Mounting: Plugin for LB Backplane
