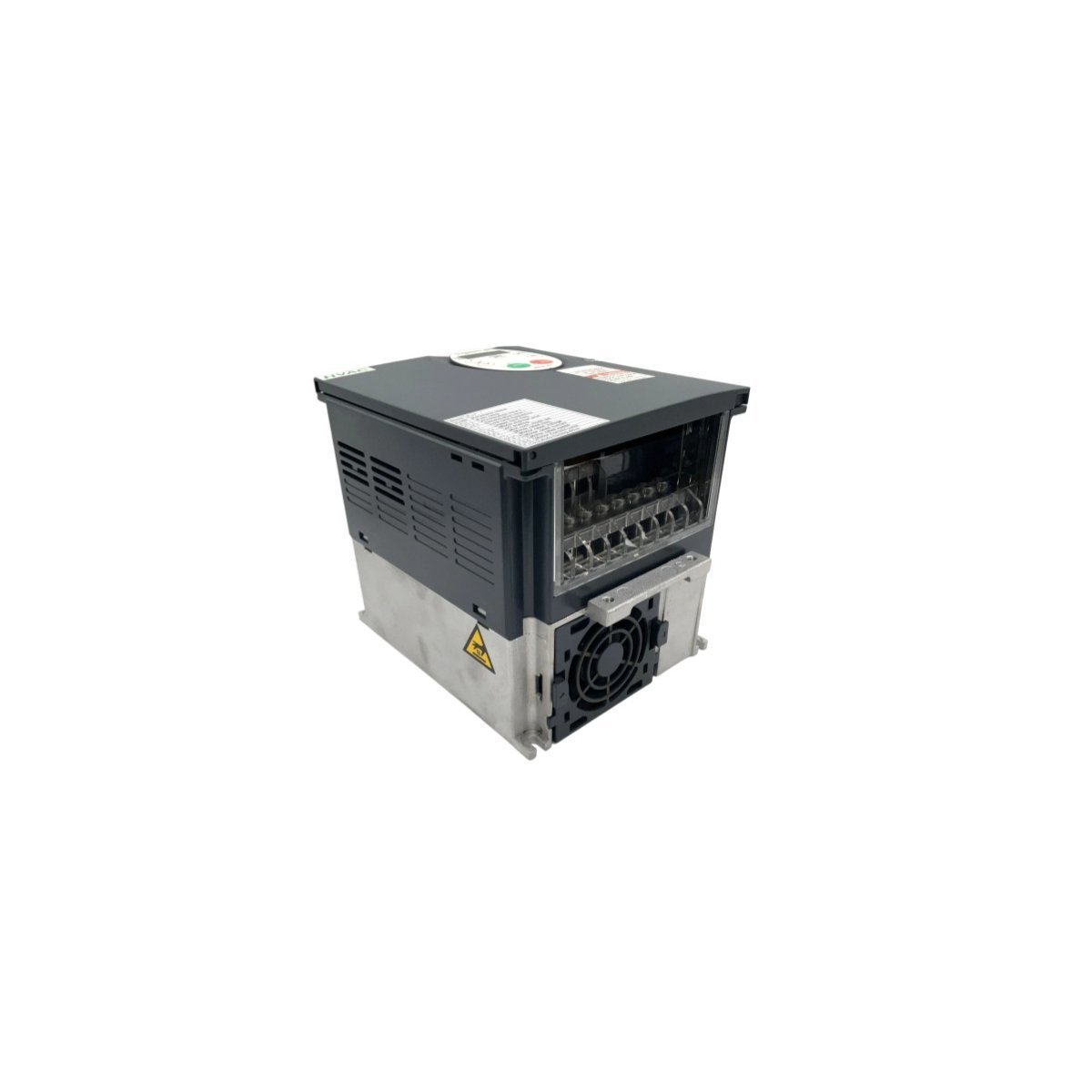

The Schneider Electric ATV212HU40N4 is a 4kW (5HP) frequency inverter. This Altivar 212 drive provides 70% energy savings for HVAC pump and fan applications.
The Schneider Electric ATV212HU40N4 is a specialized 4kW frequency inverter within the Altivar 212 series. This drive primarily serves heating, ventilation, and air conditioning (HVAC) applications. It manages three-phase asynchronous motors with high precision and reliability. Furthermore, the unit operates on a supply voltage range between 380V and 480V AC. Its eco-friendly design helps facilities reduce total energy consumption by up to 70%. Consequently, this drive remains a top choice for sustainable building management.
| Specification | Technical Data |
| Manufacturer | Schneider Electric |
| Model Number | ATV212HU40N4 |
| Rated Power | 4 kW (5 HP) |
| Line Current | 8.1 A at 380 V |
| Output Current | 9.1 A |
| Enclosure Rating | IP21 / UL Type 1 |
| Weight | 3.35 kg |
| EMC Filter | Integrated Class C2 |
The ATV212HU40N4 excels in pumping and air handling industrial processes. It utilizes advanced algorithms to maintain optimal flow and pressure in building systems. Additionally, the drive features a unique design that minimizes cable temperature rise. This technology eliminates the need for extra line chokes in most installations. Thus, engineering teams can achieve a smaller footprint and lower hardware costs. The unit also supports immediate, disturbance-free motor startups for critical ventilation tasks.
This Altivar model integrates easily into diverse building management systems (BMS). It features built-in communication protocols including Modbus, BACnet, METASYS N2, and APOGEE FLN. Moreover, the hardware complies with international standards like IEC/EN 61800-3 and 61800-5-1. It also carries certifications such as CE, UL, CSA, and C-Tick. These global approvals ensure safety and signal integrity in tertiary sector environments. Therefore, the drive provides a future-proof solution for modern infrastructure projects.
The compact physical frame allows for efficient panel mounting using four secure fixing holes. Its internal thermal management system supports reliable operation in vertical orientations. Furthermore, the drive includes comprehensive protection against short circuits and motor overloads. Technicians can further enhance performance by adding optional motor chokes for long cable runs. This adaptability simplifies both the commissioning phase and routine maintenance schedules. Overall, the unit delivers a balance of performance and operational longevity.
