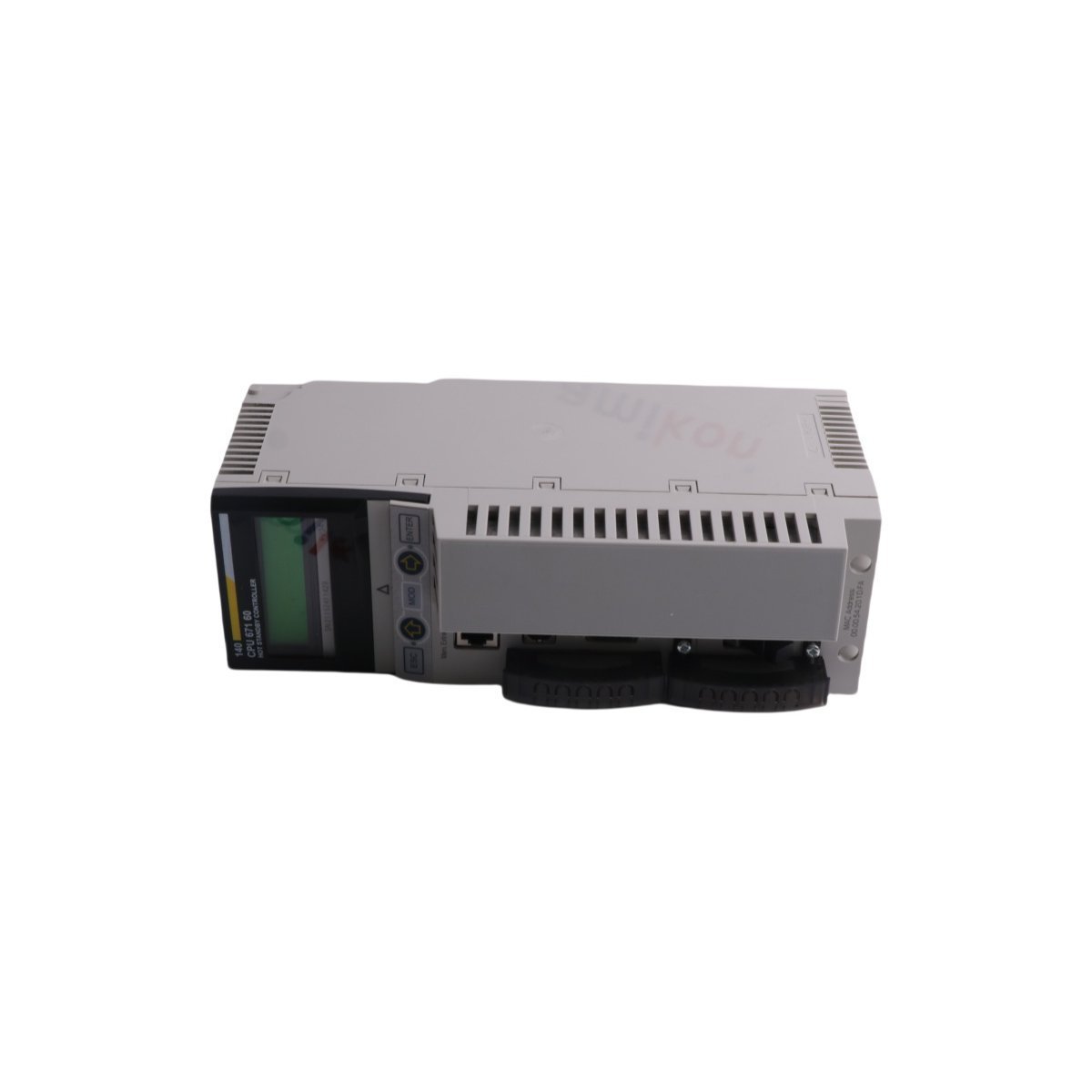

Schneider Electric 140CPU67160S Modicon Quantum Unity Safety Processor

Technical Product Overview

The Schneider Electric 140CPU67160S serves as the central intelligence for safety-critical automation within the Modicon Quantum platform. This Unity Safety Processor executes complex control logic while simultaneously managing rigorous safety protocols required for high-risk industrial environments. By integrating high-speed processing with redundant internal architectures, the 140CPU67160S ensures that industrial processes remain within safe operating limits, effectively protecting personnel, equipment, and the environment from catastrophic failure.

Operational Characteristics and Safety Integrity

The 140CPU67160S utilizes a specialized executive firmware designed to meet the stringent requirements of Safety Instrumented Systems (SIS). Because it supports the Unity Pro (Control Expert) programming environment, engineers can develop both standard and safety-related logic within a unified software framework. To ensure maximum uptime, the processor supports Hot Standby (HSBY) configurations, allowing a secondary processor to take control instantly if the primary unit detects a fault. Furthermore, the module incorporates advanced memory protection and diagnostics that continuously verify the integrity of the safety code, preventing unauthorized modifications and identifying hardware degradation before a failure occurs.

Comprehensive Technical Specifications

• Manufacturer: Schneider Electric
• Model Number: 140CPU67160S
• Product Range: Modicon Quantum
• Processor Type: Unity Safety CPU
• Clock Speed: 266 MHz
• Internal Memory: 1024 KB for Safety Data / 7168 KB for Program
• Communication Ports: 1 x Modbus RS232, 1 x Modbus Plus, 1 x USB, and 1 x Ethernet (depending on configuration)
• Maximum Redundancy: Supports Hot Standby (HSBY) for high availability
• Safety Certification: TUV certified for SIL 3 (Safety Integrity Level 3) according to IEC 61508
• Programming Software: Unity Pro XL / EcoStruxure Control Expert
• Operating Temperature: 0°C to 60°C (32°F to 140°F)
• Conformal Coating: Standard on “S” series modules for harsh environment resilience

Strategic Industrial Applications

Safety engineers deploy the 140CPU67160S as the “brain” of safety-critical infrastructure where system availability is non-negotiable. Consequently, this processor is a standard choice for the following applications:

• Safety Instrumented Systems (SIS): Manages the logic solver functions for complex emergency shutdown (ESD) loops in refineries.
• Nuclear Power Controls: Oversees critical auxiliary systems where SIL 3 compliance and high-speed diagnostics are mandatory.
• Large-Scale Fire and Gas (F&G) Systems: Coordinates site-wide detection and suppression logic across expansive chemical complexes.
• Critical Infrastructure Protection: Governs safety interlocks for large-scale tunneling, rail, and water management systems.
