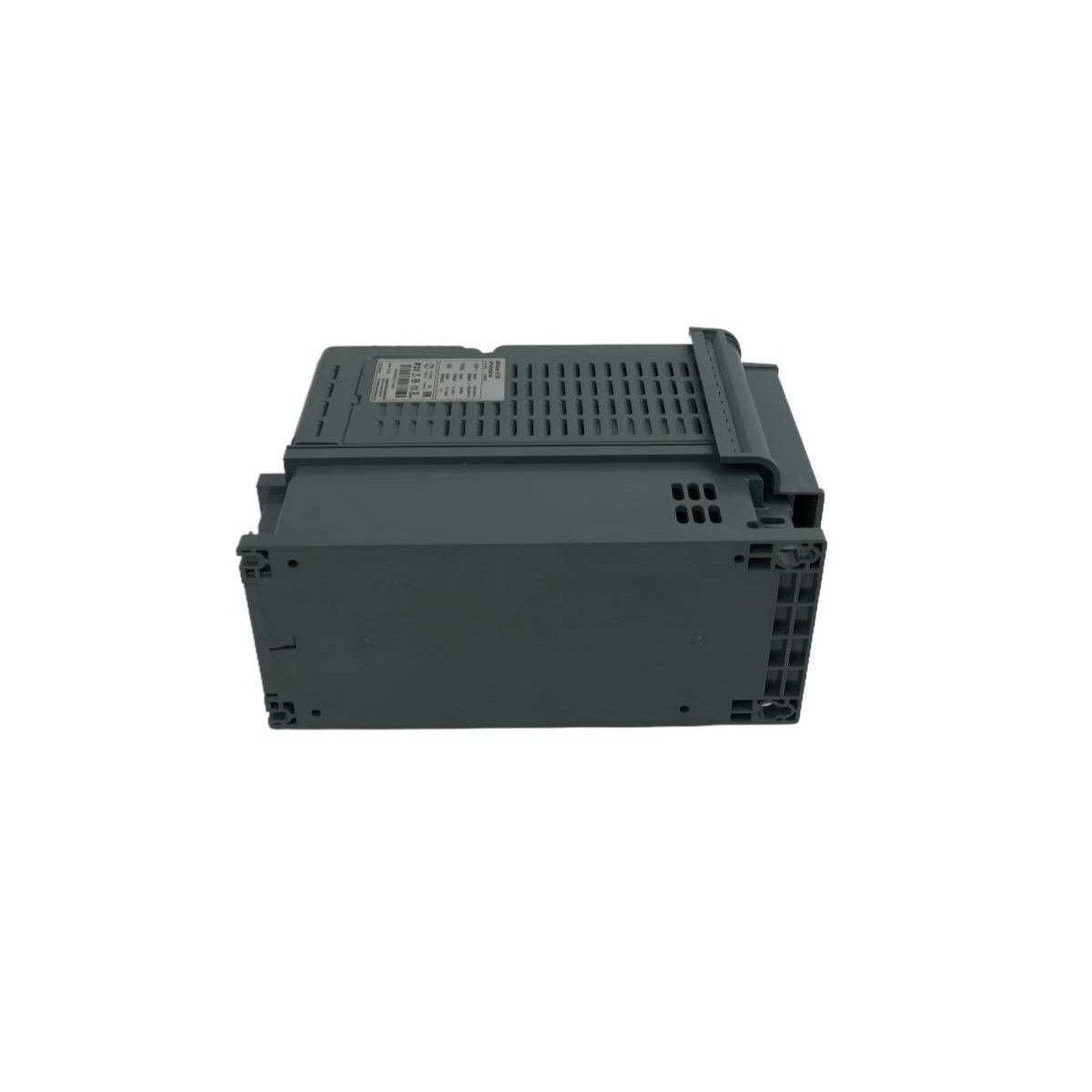

Schneider Electric ATV610D30N4 Altivar 610 Variable Speed Drive

Optimized Motor Control and Energy Efficiency

The Schneider Electric ATV610D30N4 operates as a robust 30 kW (40 HP) frequency inverter within the Altivar 610 family, specifically engineered for three-phase asynchronous motors. This Variable Speed Drive (VSD) optimizes the performance of industrial pumps and fans by precisely modulating motor speed to match actual process demand. By implementing advanced motor control algorithms, the ATV610D30N4 significantly reduces energy consumption and mechanical wear on downstream equipment. Furthermore, the drive features integrated energy-saving modes that enhance overall operational efficiency in water management and oil and gas applications.

Industrial Connectivity and Simplified Integration

To facilitate effortless integration into automated environments, the ATV610D30N4 includes built-in Modbus RTU communication ports. This allows the drive to exchange critical performance data with PLCs and DCS frameworks in real time. Moreover, the unit supports optional communication modules for Profibus DP and other industrial networks, ensuring maximum flexibility for diverse system architectures. Because the drive incorporates a plain text multilingual display terminal, operators can perform commissioning, monitoring, and fault diagnosis without needing complex external software. This user-centric design streamlines the setup process and reduces the time required for field adjustments.

Rugged Reliability and Protective Features

Schneider Electric has designed the ATV610D30N4 to withstand the harsh conditions typical of industrial facilities. The drive features coated circuit boards (conformal coating) to protect sensitive electronics against dust, humidity, and corrosive gases. Additionally, the unit provides comprehensive protection for both the motor and the drive itself, including safeguards against thermal overload, short circuits, and phase loss. Consequently, this high level of resilience minimizes unplanned downtime and extends the lifespan of the entire drive train. The inclusion of a built-in EMC filter further ensures that the VSD operates without causing electromagnetic interference to neighboring electronic equipment.

Technical Specifications

• Brand: Schneider Electric
• Range of Product: Altivar 610 (ATV610)
• Model Number: ATV610D30N4
• Motor Power (kW): 30 kW for normal duty / 22 kW for heavy duty
• Motor Power (HP): 40 HP for normal duty / 30 HP for heavy duty
• Supply Voltage: 380 V to 460 V AC (Three-Phase)
• Line Current: 56.6 A at 400 V
• Apparent Power: 41.5 kVA at 400 V
• Continuous Output Current: 61.5 A at 4 kHz (Normal Duty)
• Communication Port Protocol: Modbus RTU
• IP Degree of Protection: IP20
• EMC Filter: Integrated Category C3
• Weight: 17.5 kg
