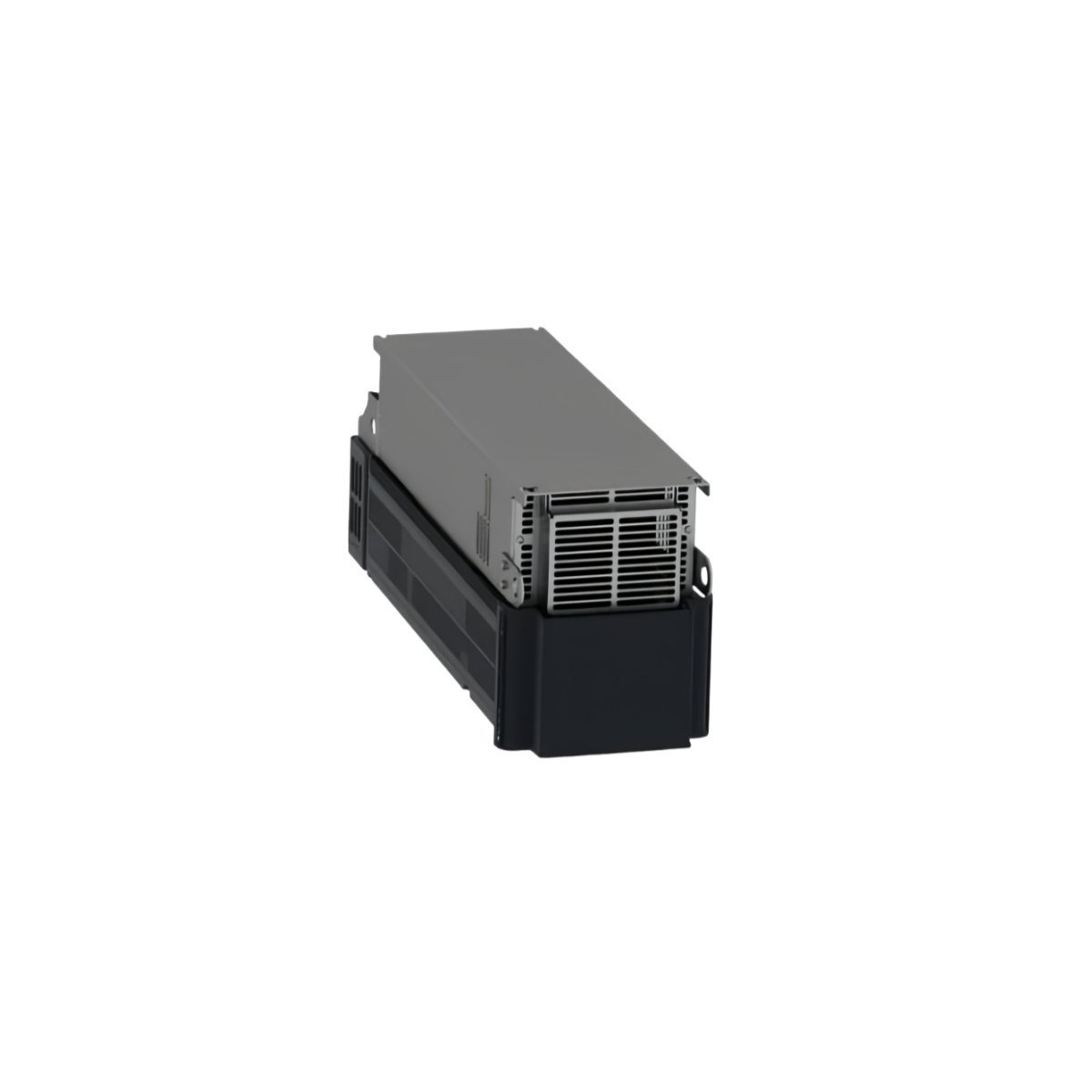

Schneider Electric ATV630D75N4 Altivar Process Variable Speed Drive

Process Optimization and Power Performance

The Schneider Electric ATV630D75N4 operates as a sophisticated 75 kW (100 HP) frequency inverter within the Altivar Process range, designed to meet the rigorous demands of industrial fluid management. This Variable Speed Drive (VSD) focuses on “Process Efficiency,” featuring integrated power measurement and a process energy dashboard to help operators track real-time consumption. By modulating the speed of high-capacity pumps and fans, the ATV630D75N4 effectively reduces energy costs and minimizes mechanical stress. Furthermore, the drive includes dedicated pump-monitoring functions, such as cavitation protection and pipe-fill control, which enhance the longevity of the entire hydraulic system.

Advanced Integration and Digital Intelligence

To streamline integration into modern industrial ecosystems, the ATV630D75N4 features dual embedded Ethernet ports with Modbus TCP and EtherNet/IP protocols. This dual-port architecture allows for flexible network topologies, including daisy-chaining, without the need for additional switches. Moreover, the unit provides a built-in web server, enabling maintenance teams to perform remote diagnostics and data monitoring via a standard web browser. Because the drive manages advanced cyber-security settings, it ensures that industrial communication remains secure against unauthorized access. The inclusion of a multilingual graphic display terminal further simplifies commissioning by providing clear, text-based navigation and configuration tools.

Rugged Reliability and Lifecycle Management

Schneider Electric has engineered the ATV630D75N4 for maximum uptime in harsh process environments. The drive features 3C3 and 3S3 class conformal coating on all printed circuit boards, protecting sensitive components from corrosive gases and chemical moisture. Additionally, the hardware incorporates a robust thermal design that supports continuous operation in high-ambient temperatures. Consequently, this level of durability makes it an ideal solution for mining, water treatment, and oil and gas facilities. By utilizing the drive’s predictive maintenance alerts, plant operators can address motor or cooling issues before they lead to unplanned production halts, ensuring a stable and cost-effective lifecycle.

Technical Specifications

• Brand: Schneider Electric
• Product Series: Altivar Process ATV600
• Model Number: ATV630D75N4
• Motor Power (kW): 75 kW (Normal Duty) / 55 kW (Heavy Duty)
• Motor Power (HP): 100 HP (Normal Duty) / 75 HP (Heavy Duty)
• Supply Voltage: 380 V to 480 V AC (Three-Phase)
• Continuous Output Current: 145 A at 4 kHz (Normal Duty)
• Communication Protocols: Modbus TCP, Modbus RTU, EtherNet/IP
• Safety Functions: STO (Safe Torque Off) SIL 3
• Protection Degree: IP21
• EMC Filter: Integrated Category C3
• Weight: Approximately 56.1 kg
