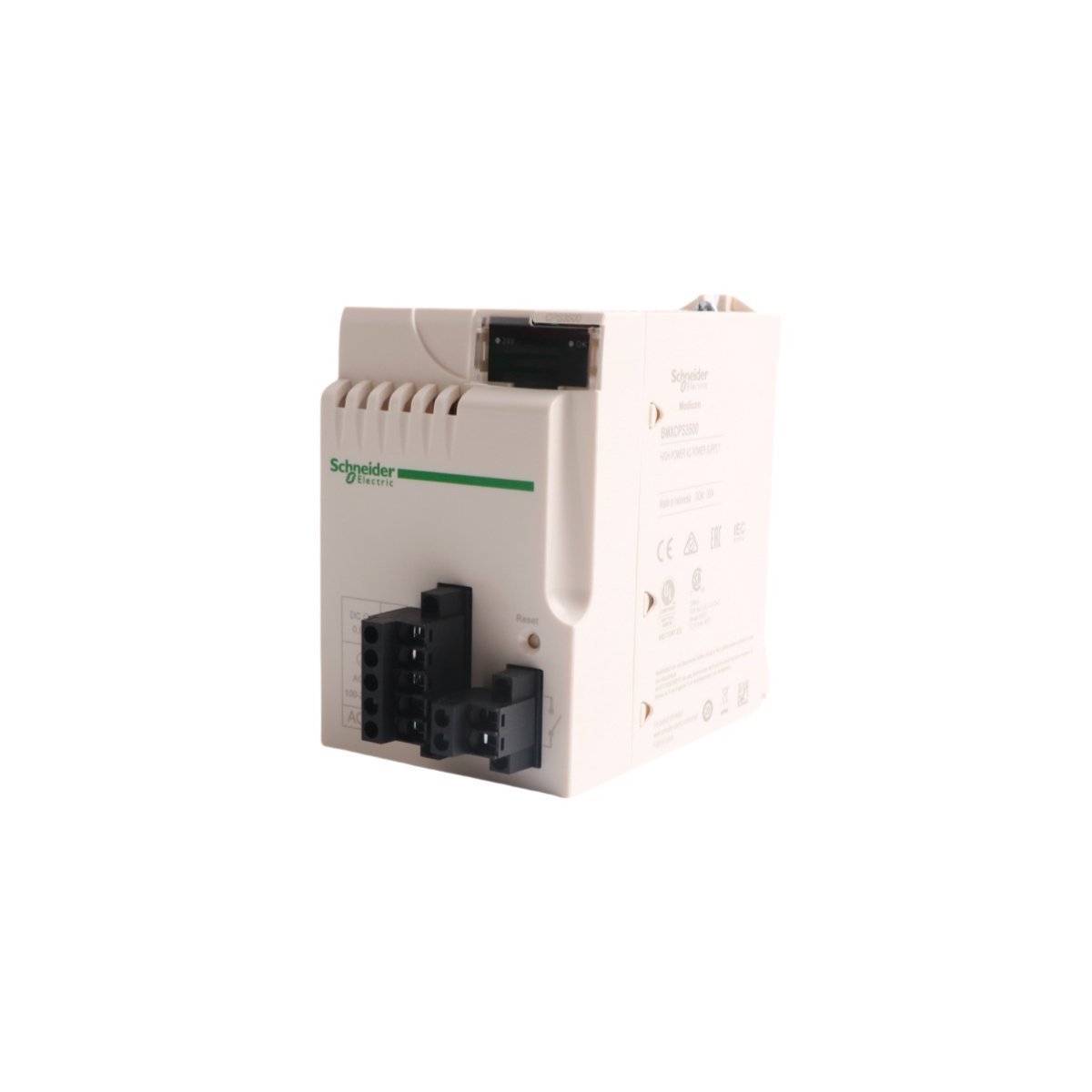

Schneider Electric BMXCPS3500 Modicon M340 Power Supply Module

Technical Overview

The Schneider Electric BMXCPS3500 serves as the primary high-capacity power source for the Modicon M340 automation platform. This module actively converts alternating current (AC) into the regulated direct current (DC) required to energize the backplane and all associated I/O modules. By utilizing an advanced internal transformer design, the BMXCPS3500 ensures that the processor and communication cards receive a stable, noise-free voltage supply. In essence, it acts as the foundation of the rack’s electrical architecture, thereby providing the power integrity necessary for reliable PLC logic execution in industrial environments. Moreover, its design specifically addresses the high-current demands of modern Ethernet-based communication modules.

Key Features and Specifications

• Manufacturer: Schneider Electric
• Product Range: Modicon M340
• Model Identifier: BMXCPS3500
• Primary Voltage: 100…240 V AC (Universal Input)
• Secondary Power: 36 W (Total output capacity)
• Backplane Current: Provides 24 V DC for the rack bus and 3.3 V DC for module logic
• Protection Features: Integrated short-circuit, overvoltage, and overload protection
• Diagnostic Interface: Front-panel LED status indicators for voltage health
• Installation: Occupies the dedicated power supply slot on any BMXXBP rack

Functional Integration and Operational Stability

The BMXCPS3500 manages the complexities of power distribution by enforcing strict voltage regulation across the entire PLC backplane. This module actively monitors the input line quality; consequently, it shields the sensitive internal electronics from voltage sags and transient surges common in industrial grids. In addition to this electrical filtering, the module incorporates a sophisticated “holdup time” feature that maintains power during momentary micro-outages to prevent system resets. Building upon this stability, the module utilizes specialized internal capacitors to bridge short-term power fluctuations.

Furthermore, the BMXCPS3500 revision features a robust mechanical design that facilitates efficient heat dissipation without the need for internal fans. As a result of this passive cooling, the power supply sustains its maximum output even in high-density cabinet configurations where ambient temperatures are elevated. Moreover, the unit supports a redundant alarm contact; accordingly, it can trigger an external warning or a controlled process shutdown the moment an internal power fault occurs. In light of these safety mechanisms, the system provides a secure environment for the M340 processor to maintain continuous control over the plant floor. Beyond these hardware protections, the module also communicates status data directly to the CPU to assist in system-wide diagnostics.

Application and Reliability

Control engineers specify the Schneider BMXCPS3500 for a wide range of automation sectors, including water treatment, packaging, and material handling. The module provides the ruggedized performance necessary to endure the vibration and thermal cycling typical of manufacturing environments. In conjunction with its power conversion role, the BMXCPS3500 facilitates rapid maintenance through its removable terminal block, thereby allowing technicians to replace the unit without disturbing the permanent field wiring. Along the same lines, the module features high-grade insulation to prevent ground loop interference.

Because the module features a universal AC input, it simplifies global spare parts management by allowing a single model to be deployed in different electrical regions. Correspondingly, this versatility reduces the overhead associated with maintaining multiple regional part numbers. Ultimately, the BMXCPS3500 delivers the stable energy and high MTBF (Mean Time Between Failures) required to support mission-critical control loops, thus upholding the operational integrity of Schneider-based automation systems. In summary, this power supply acts as a reliable cornerstone for long-term industrial productivity.
