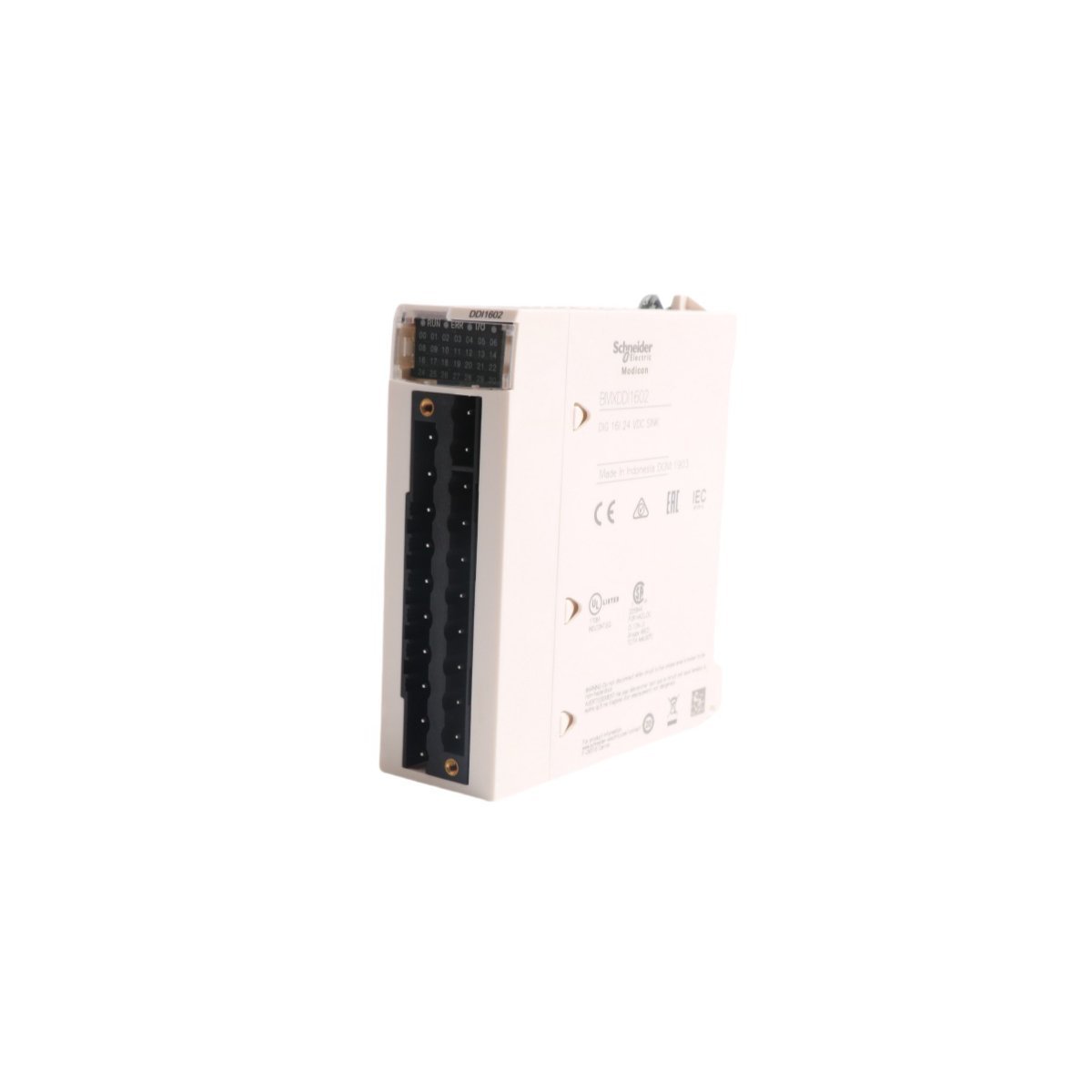

The Schneider Electric BMXDDI1602 is a 16-channel discrete input module for the Modicon X80 platform. It features 24V DC positive logic, a fast 4ms response time, and a compact 0.12kg design, providing reliable and energy-efficient signal acquisition for M340 and M580 PLC systems.
The Schneider Electric BMXDDI1602 functions as a high-density discrete input interface within the Modicon X80 automation platform. This module captures digital signals from field sensors and switches, converting them into actionable data for the PLC processor. By utilizing a 24V DC positive logic (sink) configuration, the BMXDDI1602 ensures seamless compatibility with a broad spectrum of industrial hardware. Its compact, single-slot form factor optimizes cabinet space, while the French-engineered circuitry guarantees long-term stability in rigorous automation environments.
Engineers select the BMXDDI1602 because it delivers rapid signal acquisition with a typical response time of 4ms. This speed allows the control system to react quickly to changing process conditions. To ensure electrical safety, the module provides robust galvanic isolation between the internal bus and the field-side inputs, maintaining an insulation resistance greater than 10MΩ at 500V DC. Furthermore, the module minimizes energy consumption by maintaining a low power dissipation of approximately 2.5W during peak operation.
Because the BMXDDI1602 balances density with performance, it excels in diverse industrial sectors. Consequently, facility managers often deploy it in the following areas:
