SKU: 140CPU67160

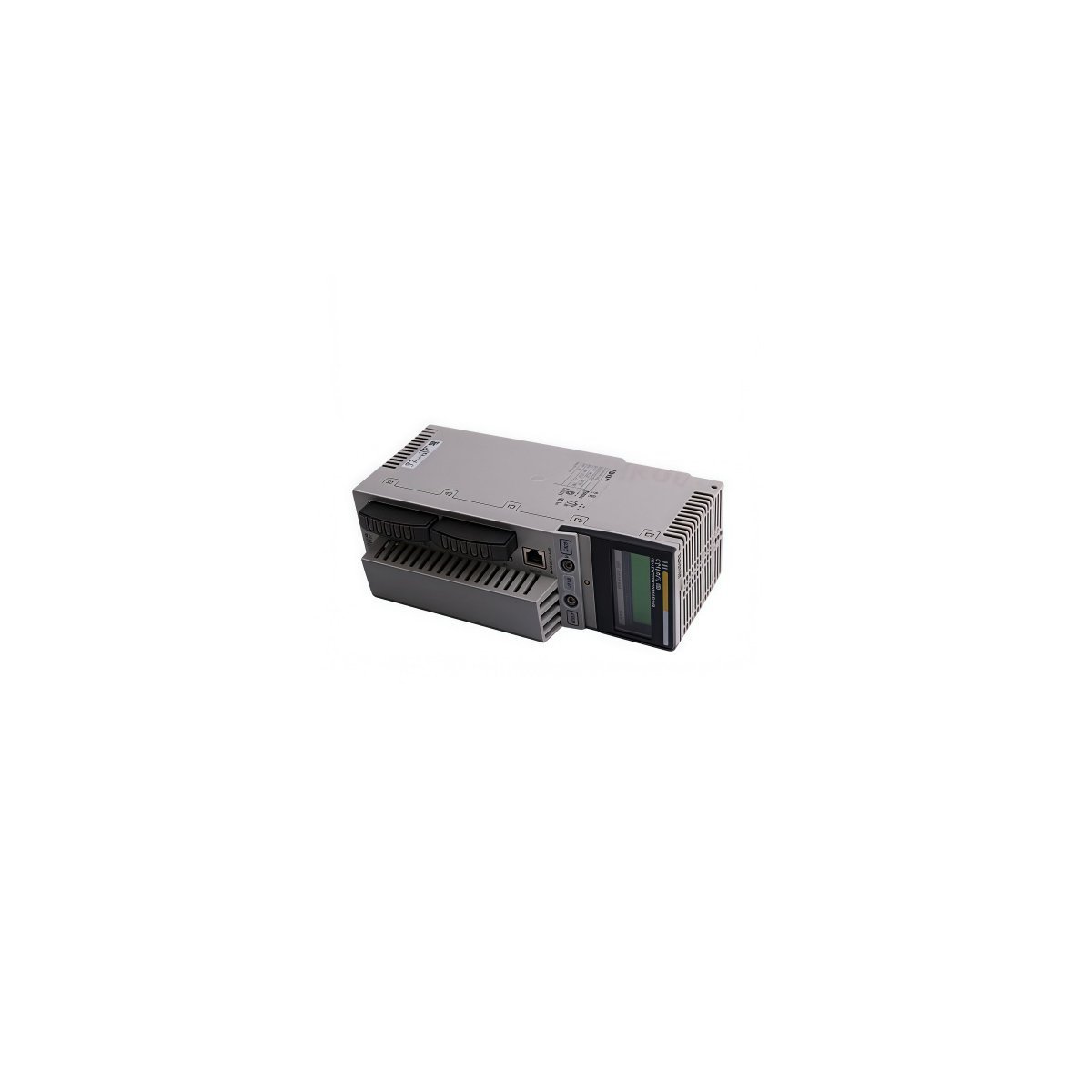

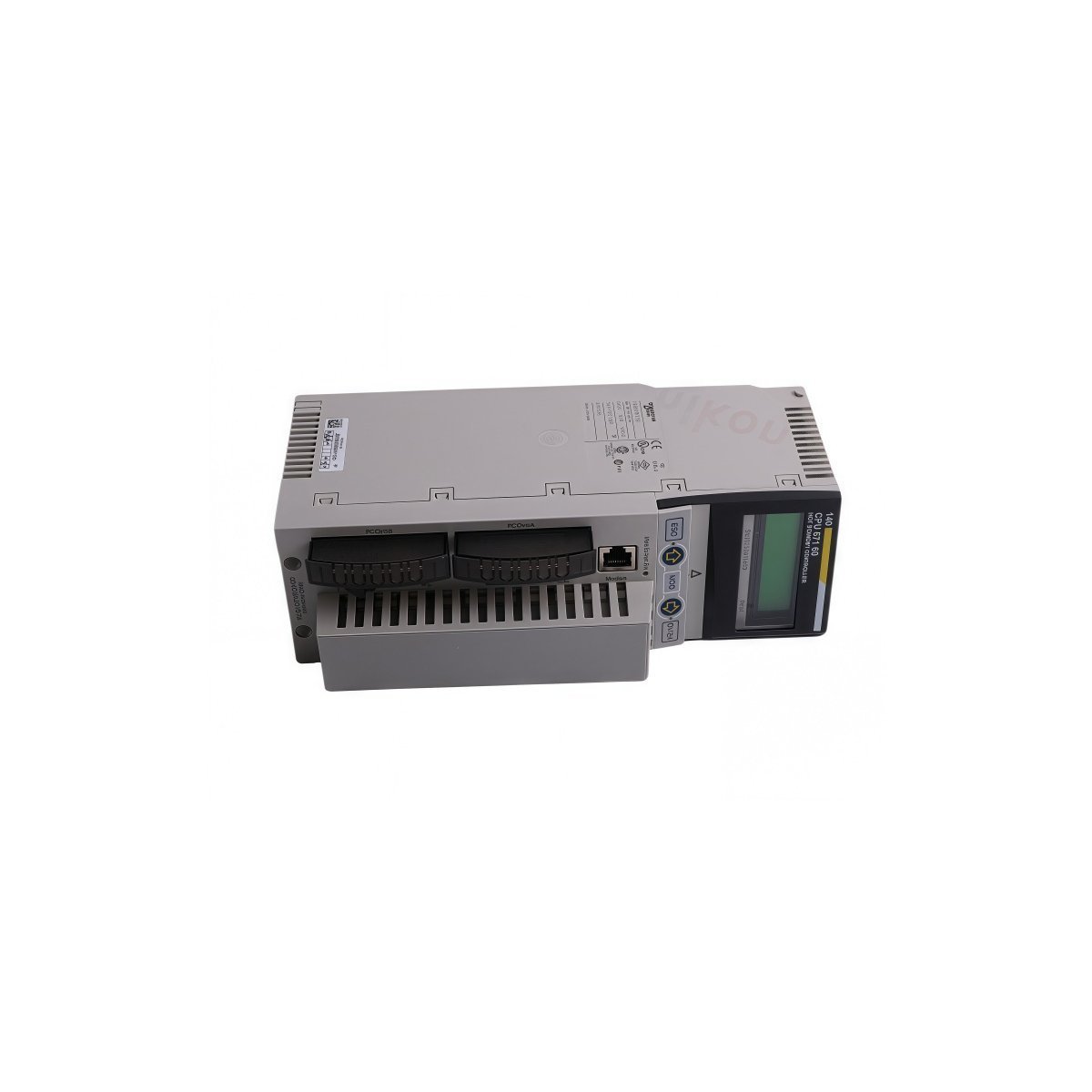

Schneider Electric Modicon Quantum 140CPU67160 Unity Hot Standby Processor

The Schneider Electric 140CPU67160 is a high-performance Modicon Quantum Unity Hot Standby processor designed for mission-critical redundancy. It features 1MB of program memory and rapid 0.045 µs logic execution, providing bumpless failover and high-speed control for complex industrial applications.

Product Overview

The Schneider Electric 140CPU67160 functions as a high-availability central processing unit specifically engineered for the Modicon Quantum automation platform. Primarily, this module manages “Hot Standby” configurations, which ensure continuous system operation by maintaining a synchronized secondary processor ready to assume control instantly. Consequently, it serves as the primary intelligence for critical infrastructure where even momentary downtime could result in significant financial or operational loss. By utilizing the Unity Pro programming environment, the 140CPU67160 delivers a robust and flexible logic execution framework for the most demanding process control applications.

Technical Performance and Functional Features

Unity Hot Standby Architecture: In addition to its standard PLC functions, the module synchronizes data between the primary and standby processors via a dedicated fiber optic link. As a result, the system executes a bumpless transfer in the event of a primary CPU failure, maintaining stable process control throughout the transition.
Extensive Memory Resources: Furthermore, the 140CPU67160 provides 1024 KB of program memory alongside 768 KB of data memory. This high capacity allows the unit to handle complex mathematical algorithms and large-scale industrial logic without performance degradation.
Integrated Communication Ports: To facilitate seamless networking, the module features built-in ports for Modbus and Modbus Plus protocols. Moreover, it includes a dedicated Hot Standby port, which simplifies the wiring and configuration of redundant CPU pairs.
High-Speed Logic Processing: Regarding computational speed, the processor executes boolean instructions at 0.045 µs and typical mixed tasks at 0.059 µs. Thus, it provides the rapid response times necessary for high-speed manufacturing and precision process regulation.
Scalable I/O Management: Moreover, the CPU supports extensive I/O architectures, managing up to 31 RIO (Remote I/O) drops and 63 DIO (Distributed I/O) drops. Consequently, it acts as a versatile central hub for massive distributed automation networks.

Operational Compatibility and Integration

System architects seamlessly deploy the 140CPU67160 into standard Modicon Quantum backplanes, ensuring backward compatibility with existing Quantum I/O modules. In addition to its physical reliability, the module integrates fully with EcoStruxure Control Expert (formerly Unity Pro), which streamlines the process where users develop, debug, and monitor safety-critical code. Furthermore, because this processor successfully meets rigorous international certifications, it satisfies the strict regulatory demands of the water treatment, oil and gas, and chemical processing sectors. Ultimately, these features combine to provide a high-performance, fault-tolerant solution for mission-critical industrial automation.
