The Schneider Electric SH31001P11A2000 is a high-performance 1190W servo motor designed for the Lexium 52 and PacDrive 3 systems. Featuring a Hiperface® absolute encoder and 6000 RPM peak speed, it provides precise motion control and high torque density for industrial packaging and automation machinery.
The Schneider Electric SH31001P11A2000 belongs to the high-performance Lexium 52 series, specifically engineered for integration with the PacDrive 3 automation system. This 4-pole synchronous servo motor delivers a continuous power output of 1190W, bridging the gap between compact design and high torque density. It serves as a primary motion component for original equipment manufacturers (OEMs) who require synchronized, multi-axis control in complex industrial environments. The motor utilizes natural convection cooling and a three-phase stator design to maintain thermal efficiency during intensive duty cycles.
Engineered for precision, the motor features a built-in Hiperface® absolute single-turn encoder. This feedback mechanism provides a 128-period resolution, allowing the controller to maintain exact position and velocity tracking without the need for homing procedures after power cycles. The unit achieves a maximum mechanical speed of 6000 RPM and exhibits a torque constant of 0.84 N.m/A. To protect against electrical stress, the insulation system supports a wide supply voltage range from 115V to 480V AC, accommodating various international power standards.

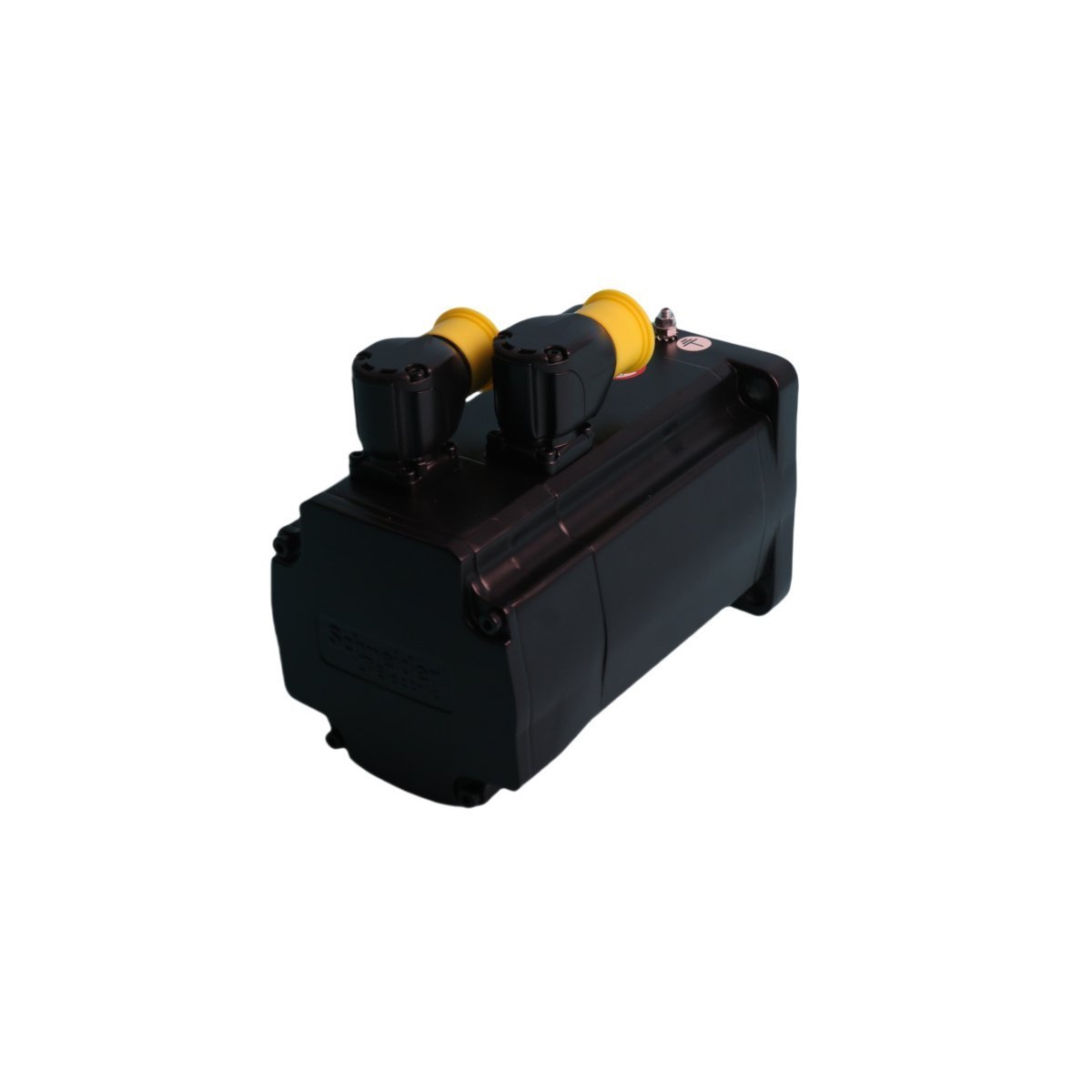

The physical architecture of the SH31001P11A2000 emphasizes durability and ease of installation. It incorporates a 100mm international standard flange and a 95mm centering collar to ensure concentric alignment with gearboxes or machine frames. The output power is transmitted through a 19mm diameter shaft equipped with a 40mm parallel keyway. For electrical connectivity, the motor provides rotatable right-angle connectors, which simplify cable routing in tight enclosures. The housing carries a dual IP54/IP65 rating, shielding internal components against dust and moisture ingress.
This servo motor primarily supports motion-centric machinery such as high-speed packaging lines, material handling systems, and robotic assembly stations. Because it operates within the Lexium 52 and Lexium 62 ecosystem, engineers can deploy it alongside multi-axis drives for seamless data exchange. The motor’s low-maintenance design and high back EMF constant (60V/krpm) make it a reliable choice for dynamic applications where repeatability and uptime are critical.
