SKU: PR6424/006-010

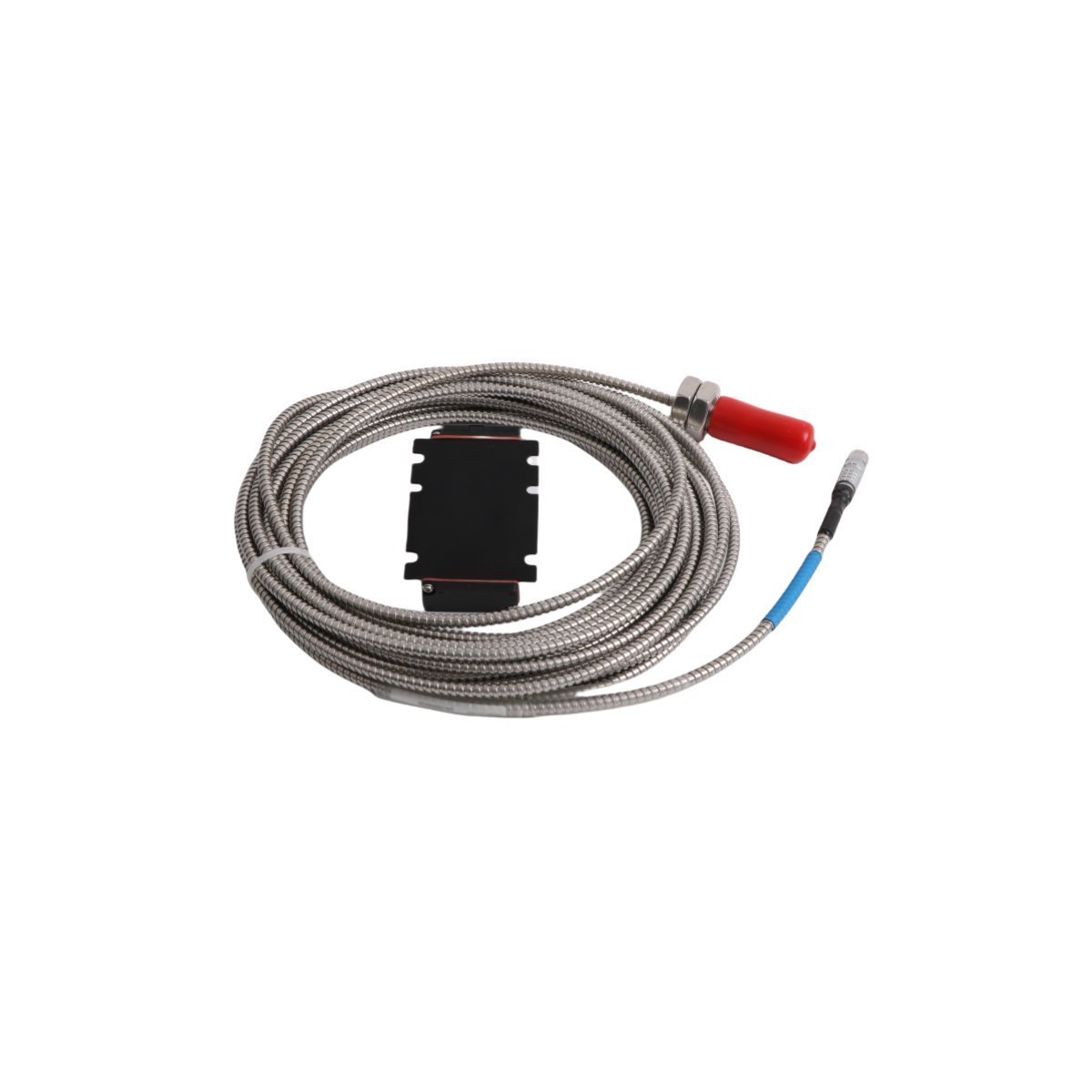

Emerson Epro PR6424/006-010 Eddy Current Displacement Sensor

The Emerson Epro PR6424/006-010 is a non-contact 12mm eddy current displacement sensor with a 10-meter integrated cable. Designed for turbine and compressor monitoring, it provides high-precision vibration and shaft position data in extreme pressure and temperature environments.

Request a Quote

Operational Function and Logic

The Emerson Epro PR6424/006-010 serves as a high-precision non-contact sensor designed to monitor the mechanical health of high-speed rotating machinery. By utilizing the eddy current principle, the probe generates an electromagnetic field that detects minute changes in the distance between the sensor tip and the metallic target, such as a turbine shaft. Once the target moves, the sensor actively converts the resulting impedance change into a proportional voltage signal. Because it measures both static and dynamic displacement, it allows engineers to monitor critical parameters including radial shaft vibration, axial thrust position, and eccentricity.

Performance Enhancements and Safety Features

  • Ensures Sub-Micron Precision: The sensor features a 12mm tip diameter optimized for linear measurement ranges up to 4mm. In doing so, it provides the high-resolution data required to detect early-stage bearing wear or shaft misalignment before catastrophic failure occurs.
  • Withstands Extreme Pressure and Temperature: The probe head is hermetically sealed and constructed from high-performance ceramics and stainless steel. As a result, the PR6424/006-010 maintains operational integrity even when submerged in lubricating oil or exposed to the high-pressure environments of steam turbines.
  • Optimizes Signal Transmission: By leveraging a specialized 10-meter integrated cable, the sensor minimizes signal attenuation and electromagnetic interference. Consequently, the raw displacement data remains accurate over the entire distance between the machine housing and the signal converter or monitoring rack.
  • Shields Against Chemical Degradation: Beyond mechanical durability, the module resists the corrosive effects of synthetic oils and industrial solvents. Therefore, it ensures a long service life in the harsh chemical atmospheres typical of refineries and power generation plants.
  • Facilitates Reliable Safety Shutdowns: Finally, the sensor integrates seamlessly with the Emerson MMS6000 and AMS 6500 protection systems. By providing real-time vibration alerts, the unit enables automated safety protocols that actively trip the machinery if vibration levels exceed established safety thresholds.

Technical Specifications

  • Brand: Emerson Epro
  • Model Code: PR6424/006-010
  • Sensor Type: Eddy Current / Inductive Proximity
  • Tip Diameter: 12 mm
  • Measurement Range: 4 mm (Nominal)
  • Cable Configuration: 10-meter integrated cable
  • Armored Cable: Optional (Depending on specific -010 sub-variant)
  • Linearity Error: < 1% of full scale
  • Frequency Range: 0 Hz to 10 kHz
  • Operating Temperature: –35 °C to +150 °C (Probe tip)
  • Pressure Rating: Up to 10 bar (145 psi) at the probe tip
  • Protection Rating: IP68 (Probe head and cable)
  • Material: Stainless steel housing with ceramic tip
Tags: ,
