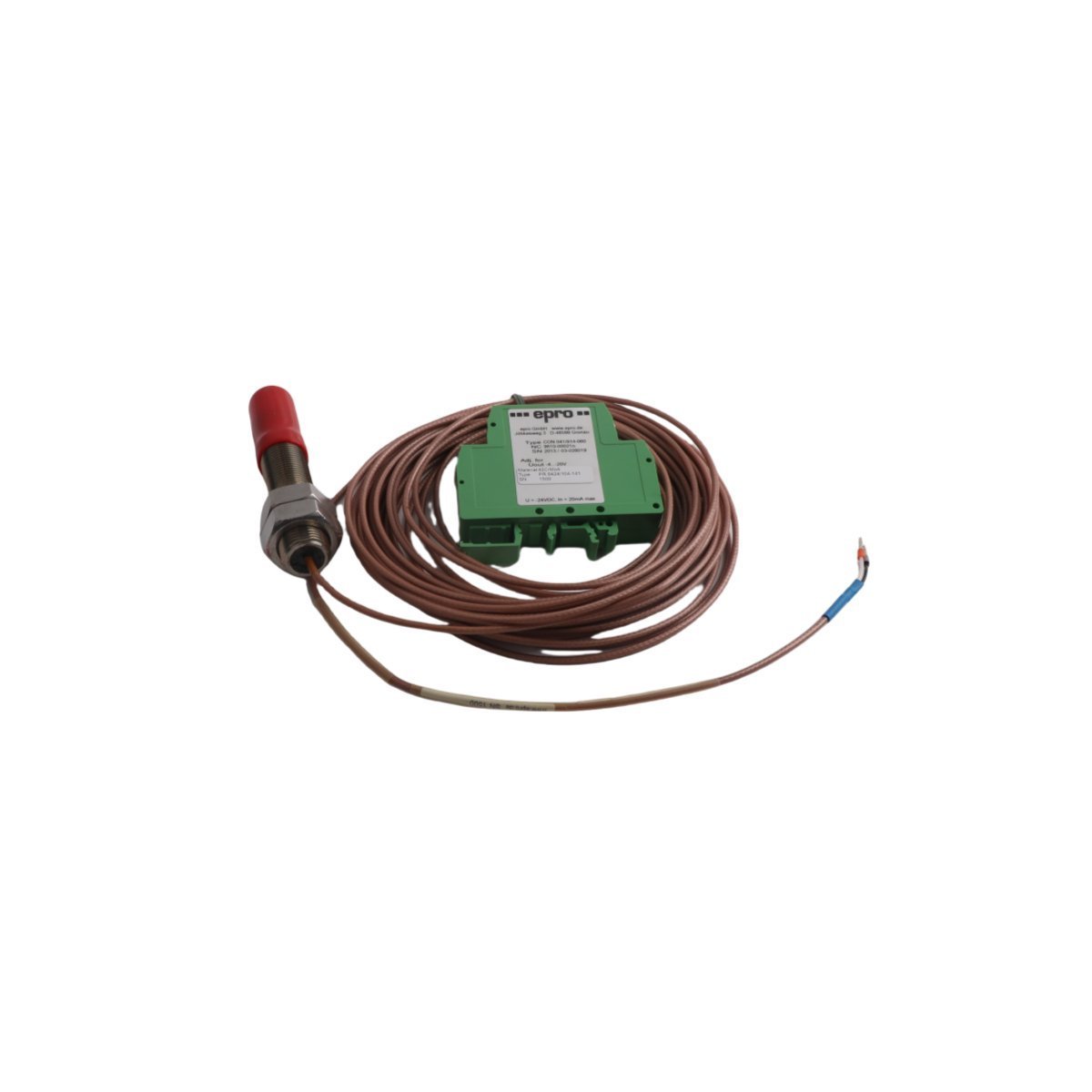

Emerson PR6424/104-141 CON041 Displacement Sensor

Configured for high-precision displacement measurement in rotating machinery, the Emerson PR6424/104-141 CON041 (PR6424/104-141 Eddy Current Sensor) provides direct physical monitoring of shaft position and vibration.

Hardware Specifications

Mechanical Monitoring & TSI Characteristics

The sensor utilizes eddy-current probe scaling to convert target surface proximity into linear voltage signals. Precise calibration of gap voltage validation—targeting a nominal -10 VDC baseline—is required to ensure linear output response across the operational range. Additionally, the system incorporates signal shielding techniques to facilitate cross-talk suppression in multi-channel installations, preserving the integrity of rotor dynamics data transmitted to the monitoring platform.

Frequently Asked Questions

Q: What is the primary requirement for gap voltage validation during sensor commissioning?

A: You must ensure the probe tip distance from the target surface aligns with the factory-specified linear range, typically targeting a -10 VDC center-gap point to maintain measurement linearity.

Q: How do you mitigate cross-talk in multi-probe setups?

A: You must observe the manufacturer’s recommended probe spacing and ensure proper electromagnetic shielding of the coaxial signal cabling to prevent interference between adjacent measurement channels.

Field Installation Guidelines

• Probe Positioning: You must mount the sensor in the specified bracket, ensuring the probe tip maintains a firm, concentric alignment relative to the shaft surface. You must avoid over-tightening the locking nuts to prevent mechanical deformation of the sensor housing.
• Gap Calibration: You must perform a static gap measurement using a calibrated feeler gauge before system activation. You should adjust the probe axial position until the output voltage reaches the -10 VDC target, confirming the sensor operates at the center of its linear range.
• Cable Routing: You must route the coaxial signal cable through dedicated, grounded conduits separate from high-current power lines. You must secure all cable runs to minimize mechanical vibration-induced fatigue at the connector interfaces.
• Shielding and Grounding: You must ensure the cable shield terminates at a single, clean instrumentation ground point. You should verify continuity across all junctions to minimize the risk of ground loop currents affecting the low-level transducer signal.
