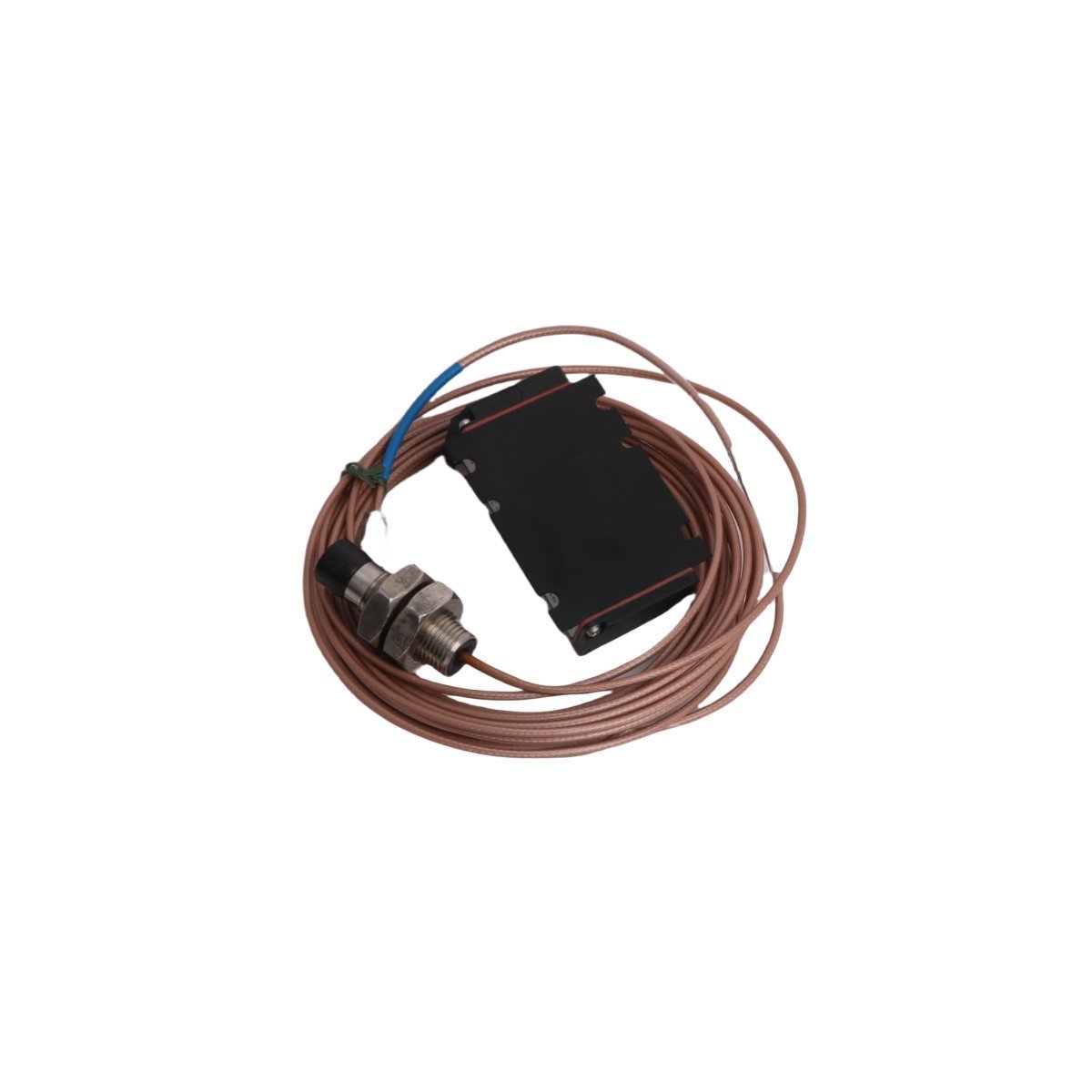

Emerson Epro PR6424/000-130 CON021 Eddy Current Sensor Module

Request a Quote

Product Overview

The Emerson Epro PR6424/000-130 CON021 is a high-precision 16mm eddy current sensor designed for non-contacting measurement of shaft vibration and displacement. Part of the specialized Epro product line, this current module serves as the primary transducer for monitoring critical rotating equipment. It operates on the eddy current principle, where high-frequency electromagnetic fields detect the distance between the sensor tip and the metallic target (such as a turbine shaft) without physical contact.

This system is vital for asset protection, providing the high-speed data necessary for detecting shaft eccentricity, axial position, and radial vibration. By converting mechanical movement into precise electrical signals, it enables the Distributed Control System (DCS) to perform real-time health analysis of high-value industrial machinery.

Technical Specifications

  • Manufacturer: Emerson (Epro Product Line)
  • Model Number: PR6424/000-130
  • Part Reference: CON021
  • Module Type: Current Module / Eddy Current Sensor
  • Tip Diameter: 16 mm
  • Cable Configuration: CON021 specific connector/cable assembly
  • Measurement Type: Non-contacting vibration, displacement, and speed
  • Weight: 0.34 kg
  • Dimensions: 16 cm x 14.5 cm x 4 cm
  • Origin: USA
  • System Compatibility: Emerson DeltaV, Ovation, and other DCS/PLC systems
  • HS Code: 8537101190

Key Characteristics and Functionality

The PR6424/000-130 is engineered for extreme reliability in environments where traditional sensors would fail. Its technical advantages include:

  • Exceptional Sensitivity: Capable of detecting sub-micron changes in displacement, ensuring the earliest possible detection of shaft instability.
  • Harsh Environment Resilience: Built to withstand high pressure, extreme temperature fluctuations, and exposure to industrial lubricants and oils.
  • EMI Immunity: Advanced shielding protects the signal from electromagnetic interference, which is common around large generators and motors.
  • Real-Time Data Streaming: Facilitates continuous monitoring, allowing for predictive maintenance schedules that prevent catastrophic equipment failure.
  • Modular Integration: The CON021 configuration ensures easy connectivity with standard signal converters and Emerson’s automation backplanes.

Industrial Applications

The Emerson PR6424/000-130 is a standard choice for vibration monitoring in high-stakes industries:

  • Power Generation: Monitoring the shaft vibration of large steam and gas turbines to prevent resonant damage.
  • Oil & Gas: Tracking the axial position and radial vibration in centrifugal compressors.
  • Chemical Processing: Ensuring the stability of high-speed mixers and industrial pumps.
  • Mining & Metals: Monitoring heavy-duty gearboxes and rotating kilns.
