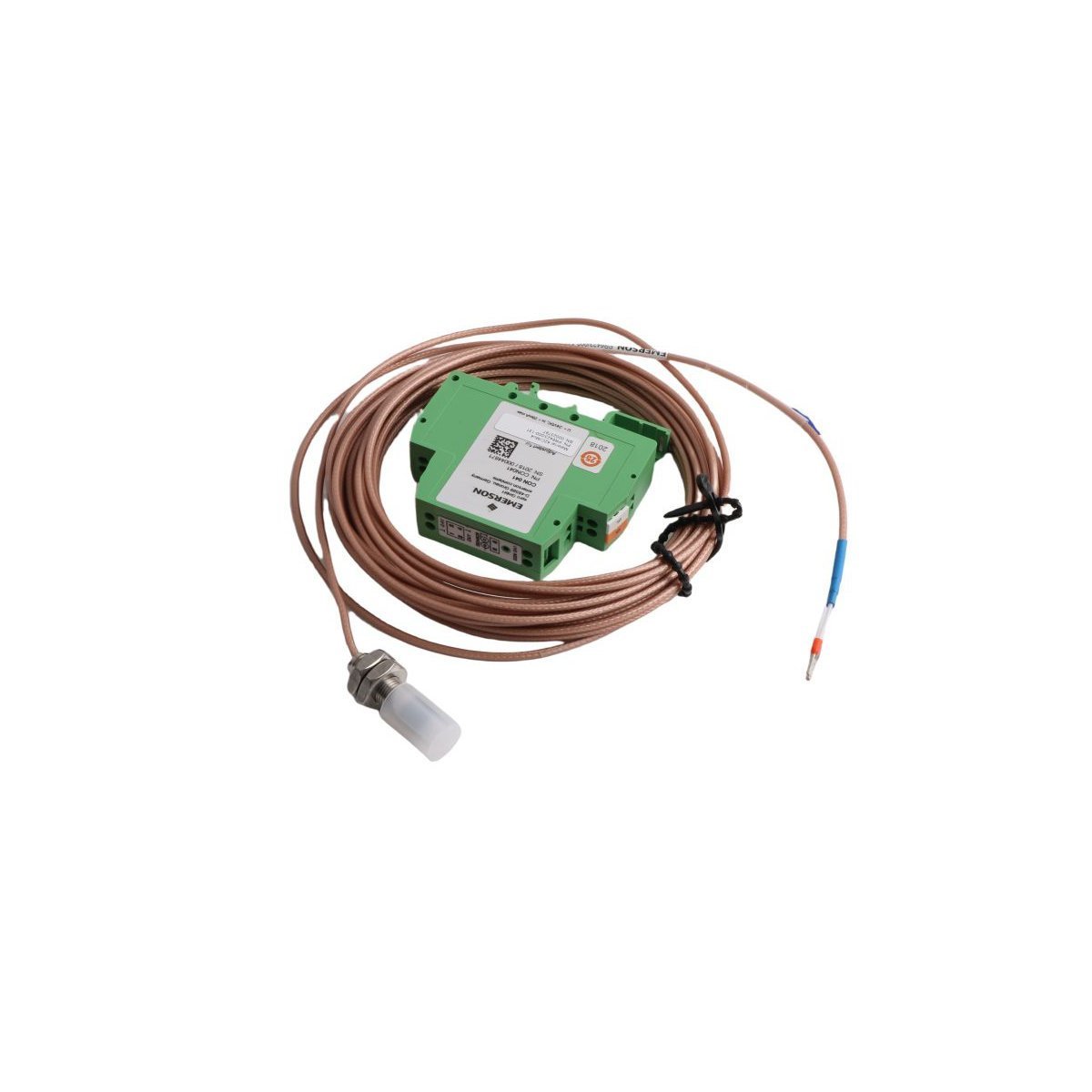

Emerson PR6423/000-131 CON041 EPRO Eddy Current Sensor

The Emerson PR6423/000-131 CON041, also cataloged as the PR6423/000-131 Eddy Current Sensor, operates as a dedicated hardware component for non-contact shaft displacement and vibration measurement within EPRO machine monitoring systems.

Hardware Specifications

Process Control and DCS Characteristics

• Generates high-frequency electromagnetic fields to detect micrometer-scale gap variations against target metallic shaft surfaces.
• Transmits raw high-frequency signal outputs to signal converters or 4-20 mA HART loop protocol transmitters for system logging.
• Provides high linearity and channel-to-channel isolation across multi-channel turbomachinery monitoring racks.
• Accepts integration with field junction boxes, utilizing cold junction compensation routines where ambient temperature shifts affect signal conditioning hardware.

Frequently Asked Questions

Q: What signal conditioning unit is required to drive the PR6423/000-131 probe?

A: The sensor coil requires a matching CON041 transmitter or signal converter to supply the excitation frequency and process raw impedance changes into normalized voltage signals.

Q: How does cable length affect calibration on this eddy current sensor?

A: System calibration depends on the total electrical length of the probe and extension cable assembly; cable substitutions alter system tuning and impedance scaling.

Field Installation Guidelines

• Verify mechanical target clearance to prevent physical impact between the probe tip and rotating shaft during machine startup.
• Route sensor lead cables through grounded metallic conduit to suppress ambient electromagnetic interference.
• Maintain a minimum cable bending radius of 30 mm to avoid damaging internal coaxial conductors.
