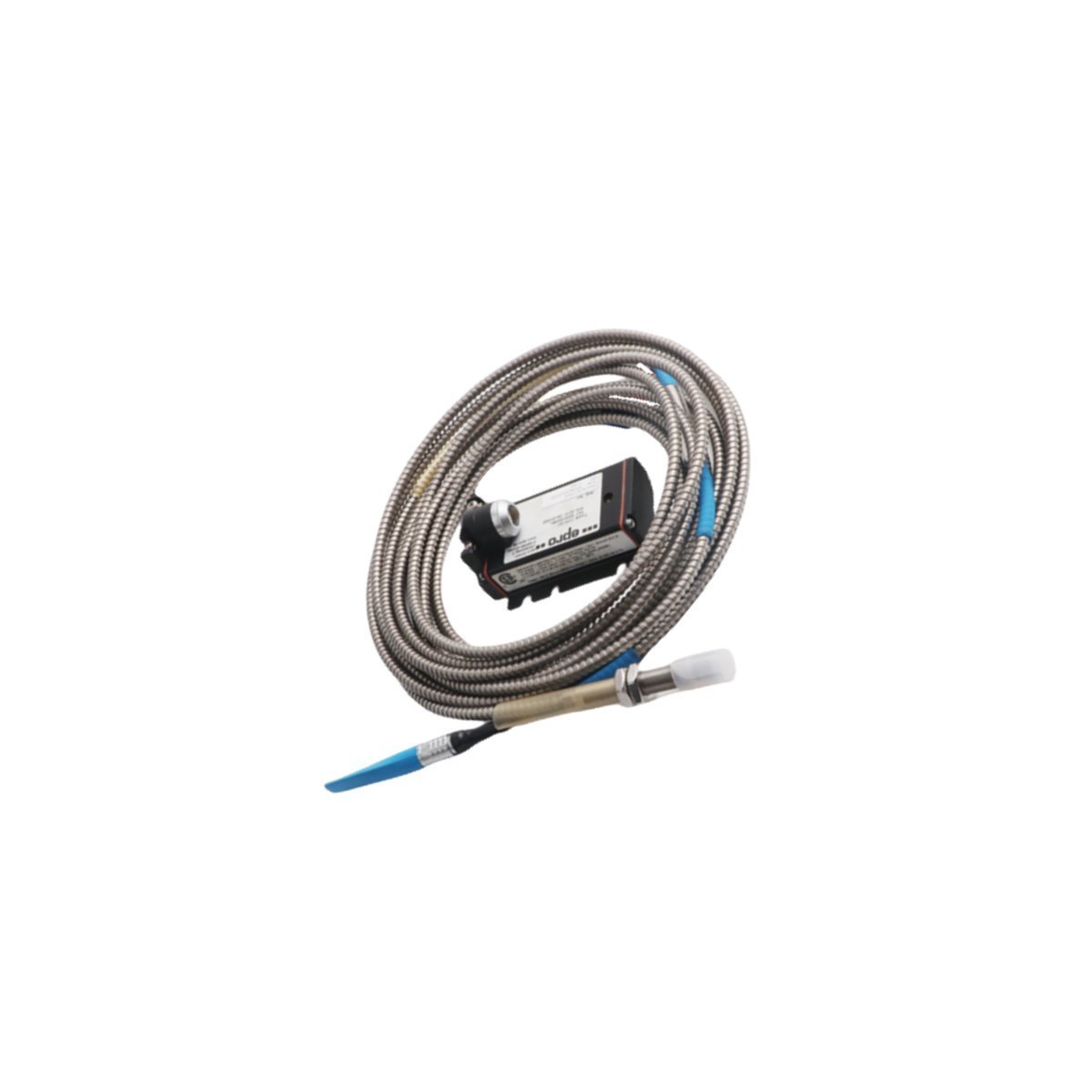

Emerson PR6423/101-101 CON031 Eddy Current Sensor

Technical Overview

The Emerson PR6423/101-101, also identified by the order code CON031, is a non-contacting eddy current displacement sensor designed for demanding machinery protection applications. This sensor specifically targets the measurement of shaft vibration, axial thrust position, and eccentricity in high-speed rotating equipment. By generating a high-frequency electromagnetic field, the sensor detects minute distance changes between the probe tip and the target metal surface, translating these physical movements into precise voltage signals for monitoring systems like the AMS 6500 or machinery protection racks.

Product Specifications

• Model Identification: PR6423/101-101 (CON031)
• Sensor Tip Diameter: 8 mm (standard for the PR6423 series)
• Cable Configuration: Integrated 1.0-meter armored cable with a LEMO connector
• Measurement Range:  2.0 mm (80 mils) linear range
• Output Sensitivity: Typically 8 V/mm (200 mV/mil) when paired with the corresponding driver/convertor
• Operating Temperature: Designed for extreme environments ranging from -35°C to +170°C

Key Design Characteristics

The PR6423/101-101 incorporates several engineering features that ensure long-term stability in industrial settings. Because the sensor employs a hermetically sealed ceramic tip, it effectively resists high-pressure environments and aggressive chemical lubricants. Furthermore, the armored cable provides essential mechanical protection against physical abrasion and EMI (electromagnetic interference), which preserves signal integrity across long distances.

The CON031 designation specifically refers to the configuration of the connector and cable assembly. This specific version utilizes a high-quality connector that ensures a low-impedance path, which is vital for maintaining the calibration accuracy of the entire displacement measurement chain.

Industrial Applications and Integration

Reliability represents a core requirement for this sensor, as it typically monitors assets where failure results in significant financial loss. Consequently, technicians install the PR6423/101-101 in:

• Steam and Gas Turbines: Measuring radial shaft vibration and axial displacement to prevent blade-to-casing contact.
• Large Centrifugal Compressors: Monitoring the health of fluid-film bearings.
• Hydroelectric Generators: Detecting shaft runout and thermal expansion in large-scale rotors.
• Industrial Pumps and Fans: Providing continuous data for predictive maintenance programs.

Technical Advantages

• High Linear Accuracy: The sensor maintains a very low deviation from the ideal linear curve, which ensures that vibration readings remain accurate even at the edges of the measurement range.
• Ruggedized Construction: Its stainless steel body and specialized potting materials allow the probe to survive continuous exposure to hot oil and high-velocity steam.
• Interchangeability: Following Emerson’s strict manufacturing tolerances, the PR6423/101-101 allows for direct replacement in existing systems without requiring extensive recalibration of the signal converter.
