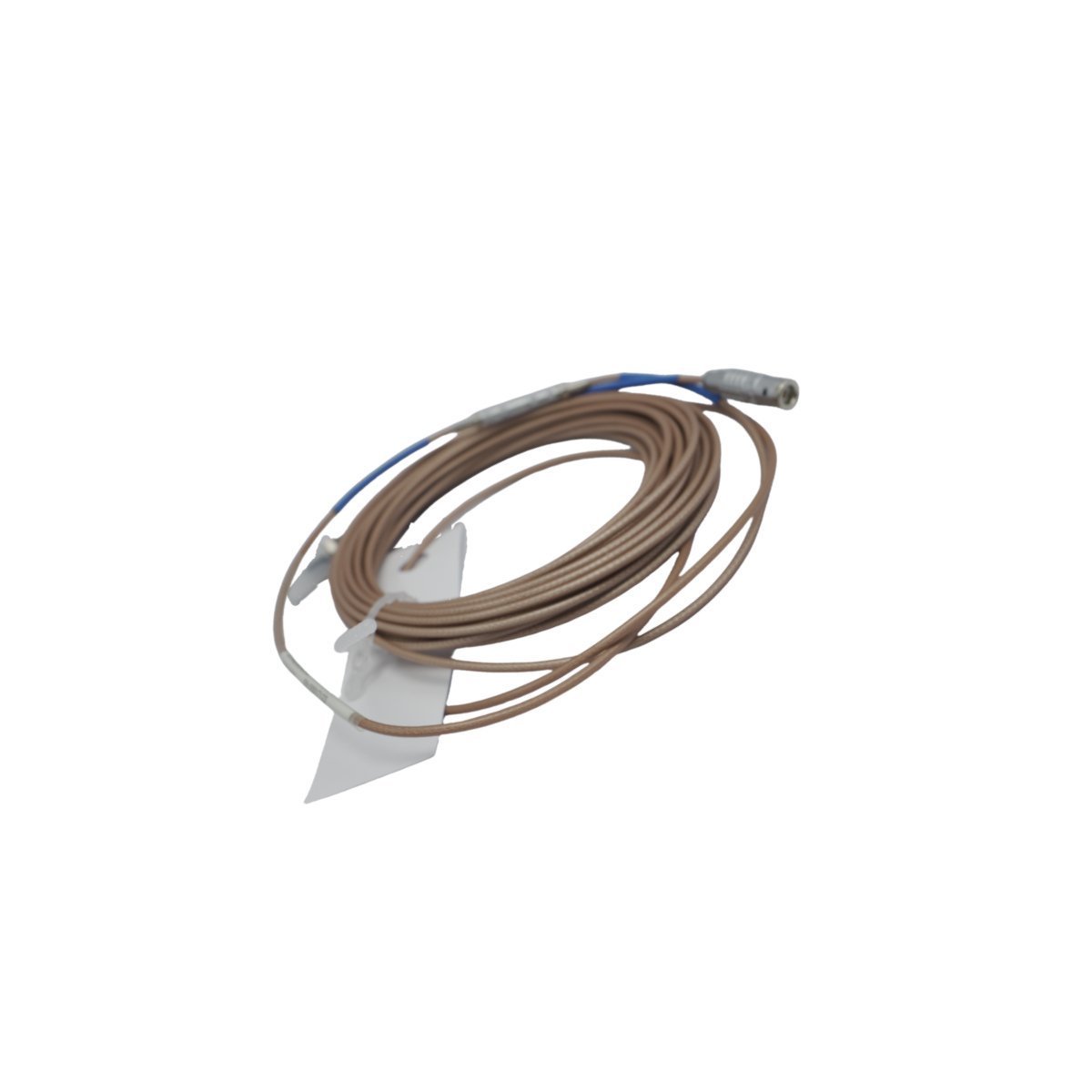

Emerson PR6423/10R-040 Eddy Current Sensor

The Emerson PR6423/10R-040 is an 8mm EPRO eddy current sensor designed for non-contact shaft vibration and displacement monitoring. Built for harsh environments, this high-precision transducer ensures stable performance in turbines, compressors, and pumps.

Request a Quote

The Emerson PR6423/10R-040 belongs to the specialized EPRO product line for industrial vibration analysis. This eddy current sensor measures shaft displacement and vibration without making physical contact. It provides vital real-time data for rotating equipment health. Engineering teams utilize this transducer to identify mechanical shifts or imbalances early. Consequently, this prevents catastrophic machine failure and extends the operational lifecycle of critical assets.

Industrial Durability and Resilience

This sensor performs reliably in extreme industrial environments. The robust housing resists high pressure and chemical exposure from lubricating oils. It maintains high signal stability even under significant thermal stress. Because of this durability, the PR6423/10R-040 suits heavy-duty applications like power plant turbines and centrifugal compressors. The non-contact design eliminates mechanical wear between the probe and the target surface.

Technical Integration and Performance

The PR6423/10R-040 features high sensitivity to capture minute changes in machine state. It delivers fast response times for high-speed rotational monitoring. The sensor integrates easily with Emerson DeltaV systems and other DCS platforms. It supports various signal processing units to convert raw data into actionable maintenance alerts. This makes the transducer a cornerstone for modern predictive maintenance strategies.

Technical Specification Overview

ParameterDetails
Model NumberPR6423/10R-040
Sensor TypeNon-contact Eddy Current
Tip Diameter8 mm
ManufacturerEmerson (EPRO Series)
Output TypeAnalog displacement signal
Housing MaterialStainless steel / High-performance plastic
Weight0.24 kg
Dimensions16 x 16 x 2 cm
