  4. Emerson Epro PR6423/10R-010 Eddy Current Displacement Sensor
Sale!
SKU: PR6423/10R-010

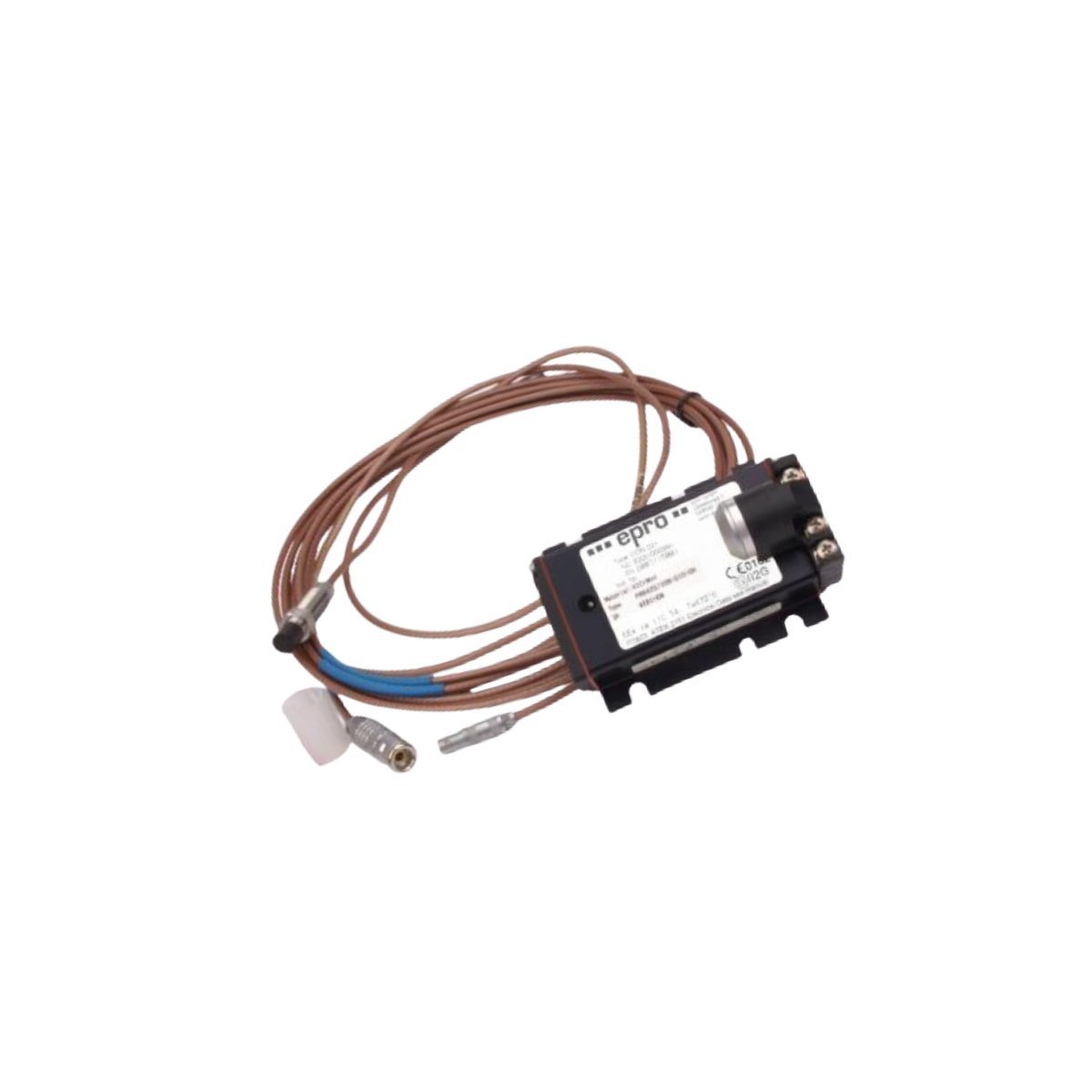

Emerson Epro PR6423/10R-010 Eddy Current Displacement Sensor

The Emerson Epro PR6423/10R-010 is a non-contact 8mm eddy current sensor featuring a 2mm linear range and a 10-meter integrated cable. Engineered for high-precision turbine and shaft vibration monitoring, it provides IP68-rated protection and high-temperature resistance for mission-critical industrial assets.

Request a Quote

Operational Function and Logic

The Emerson Epro PR6423/10R-010 operates as a high-precision, non-contact measurement device designed to monitor the mechanical integrity of critical rotating machinery. By utilizing the eddy current principle, the sensor generates an oscillating electromagnetic field at its tip to detect minute changes in the air gap between the probe and a metallic target, such as a turbine shaft. Once the target moves, the sensor actively modifies its internal impedance, which an external converter then translates into a high-fidelity voltage signal. Because it measures both static and dynamic displacement, the unit provides essential data for tracking radial shaft vibration, axial thrust position, and thermal expansion in real-time.

Performance Enhancements and Safety Features

  • Delivers High-Resolution Accuracy: The sensor features an 8mm tip diameter specifically optimized for a linear measurement range of up to 2mm. In doing so, it provides the sub-micron resolution necessary to identify early-stage mechanical imbalances or bearing degradation before they escalate into equipment failure.
  • Resists Extreme Industrial Pressures: The probe is hermetically sealed and features a high-grade ceramic tip. As a result, the PR6423/10R-010 maintains absolute signal stability even when exposed to pressurized lubricating oils or steam environments typical of power generation turbines.
  • Optimizes Long-Distance Signal Integrity: By leveraging a 10-meter integrated cable, the sensor facilitates direct routing from the machine housing to a remote monitoring rack. Consequently, the system minimizes the number of intermediate connectors, effectively reducing the risk of signal attenuation and electrical noise interference.
  • Shields Against Chemical Corrosion: Beyond its mechanical resilience, the stainless-steel housing is engineered to withstand aggressive industrial solvents and synthetic lubricants. Therefore, the sensor ensures a 20-year service life in the harsh atmospheres of petrochemical plants and offshore platforms.
  • Facilitates Critical Machine Protection: Finally, the module integrates seamlessly with the Emerson AMS 6500 and MMS 6000 protection systems. By providing instantaneous vibration feedback, the unit allows the control system to actively trigger emergency trips, thereby protecting the asset from catastrophic mechanical damage.

Technical Specifications

  • Brand: Emerson Epro
  • Model Code: PR6423/10R-010
  • Sensor Type: Eddy Current / Inductive Proximity
  • Tip Diameter: 8 mm
  • Linear Range: 2 mm (Nominal)
  • Cable Configuration: 10-meter integrated cable
  • Cable Protection: Reinforced/Armored (Depending on specific sub-revision)
  • Linearity Error: < 1% of full scale
  • Frequency Response: 0 Hz to 10 kHz
  • Operating Temperature: –35 °C to +150 °C (Probe head)
  • Pressure Resistance: Up to 10 bar (145 psi) at the sensor tip
  • Protection Rating: IP68 (Fully submersible probe and cable)
  • Housing Material: Stainless Steel (1.4305) with Ceramic Tip
