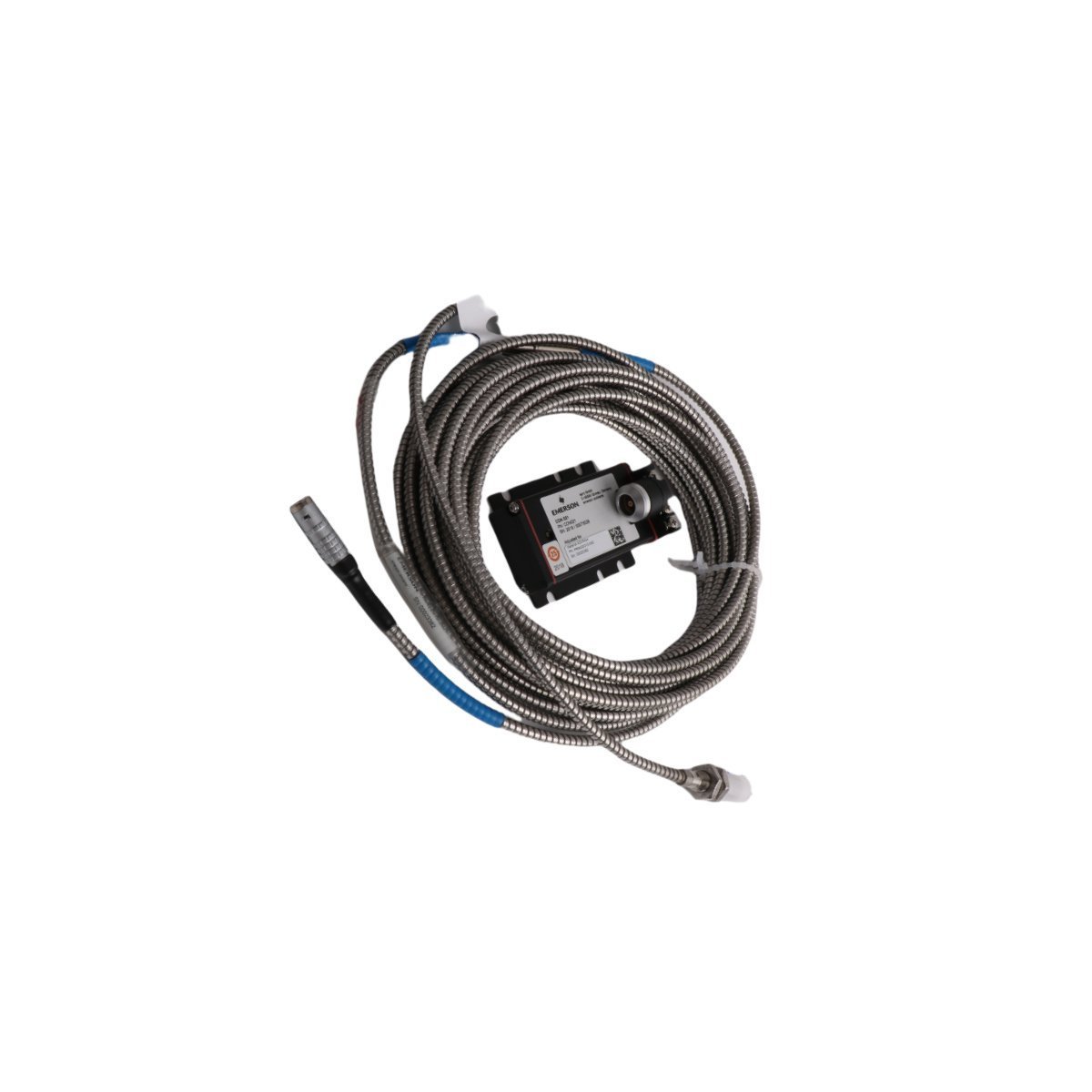

EMERSON PR6423/010-010 CON021 Eddy Current Displacement Sensor

The EMERSON PR6423/010-010 CON021 is a high-precision, non-contact eddy current displacement sensor designed primarily for machinery protection and condition monitoring systems. This epro-line sensor measures critical machine parameters such as shaft vibration, shaft displacement, and eccentricity in high-speed rotating machinery like turbines, compressors, and pumps.

Hardware Specifications

Eddy Current Operating Principle & Monitoring Integration

The PR6423 series sensor utilizes the eddy current measurement principle to determine the precise distance between the sensor tip and a conductive target material (such as a machine shaft). The driver or transmitter supplies a high-frequency RF signal to the coil inside the sensor tip, generating an oscillating electromagnetic field. When a conductive shaft approaches this field, eddy currents are induced on the shaft surface, absorbing energy and changing the oscillation amplitude.

The connected signal converter decodes these amplitude variations into a highly linear output voltage or current proportional to the physical gap. This raw dynamic data interfaces directly with machine protection monitors (like the Emerson MMS 6000 series) to feed diagnostic software architectures with real-time vibration metrics, enabling automatic trip signals if safety thresholds are exceeded.

Frequently Asked Questions

Q: Does the PR6423/010-010 sensor require a separate driver or proximitor module?

A: Yes. The sensor body acts as the inductive probe head and requires a matching driver module (or converter) along with calibrated extension cables to scale the voltage output correctly (typically 8 V/mm or 4 V/mm depending on configuration).

Q: Can this sensor be used for measuring non-ferromagnetic target materials?

A: The sensor is factory-calibrated for standard ferromagnetic steel targets (such as 42CrMo4). If deployed against non-magnetic or alternative alloys like aluminum or stainless steel, custom recalibration is required to correct the output linearity.

Field Installation Guidelines

• Target Material Inspection: Verify that the shaft measurement track is clean, unmagnetized, and free of physical scoring, as surface imperfections can alter eddy current behavior and induce false vibration readings (electrical runout).
• Mechanical Clearance Adjustments: Use a digital multimeter to monitor the DC gap voltage during mechanical installation. Thread the sensor into the mounting bracket until the target voltage aligns with the linear midpoint calibration value (typically -10 VDC).
• Cable Protection Enclosures: Keep the coaxial cable extensions secured within flexible armor conduits. Avoid tight bends or over-tightening cable ties to preserve structural cable impedance and signal stability.
