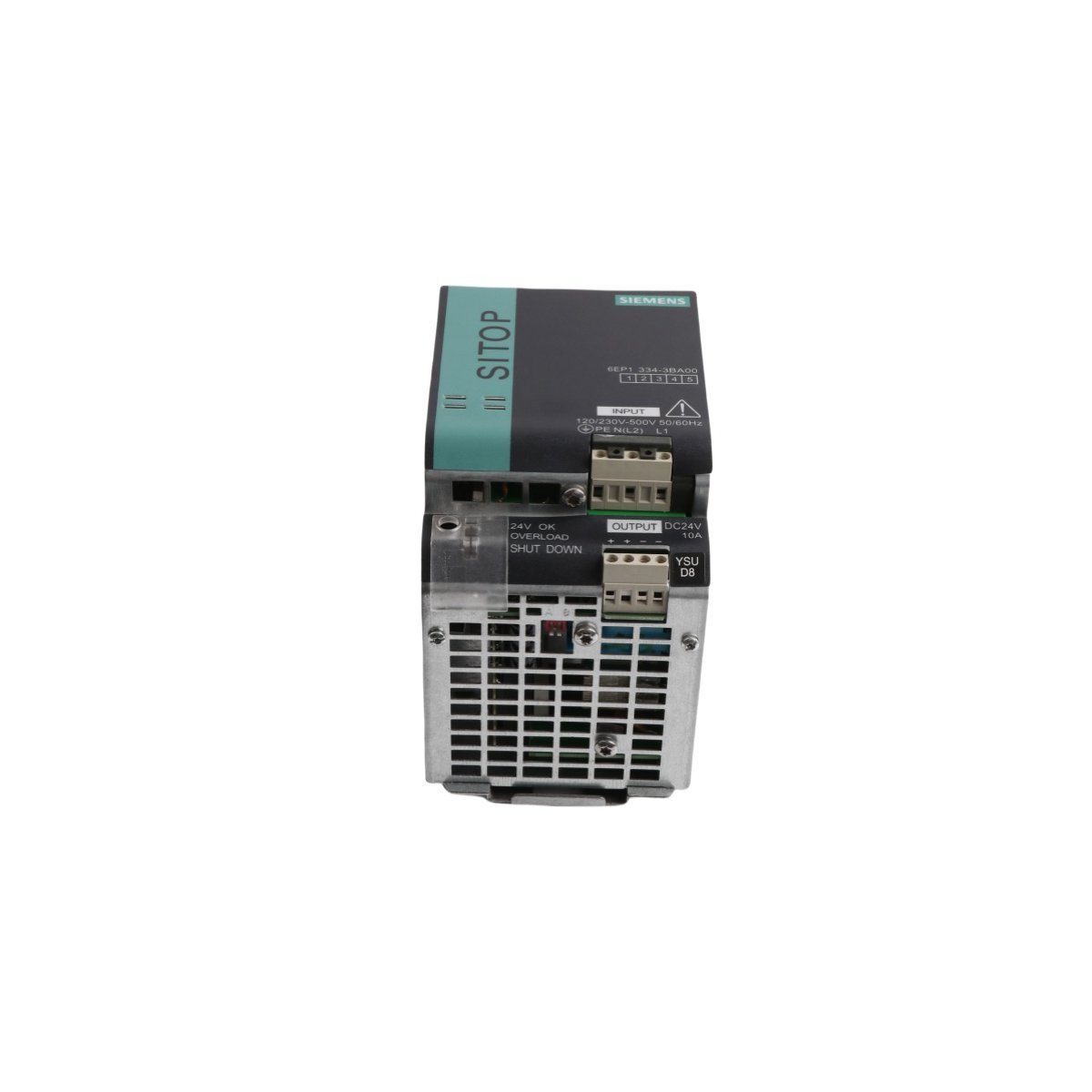

Siemens 6EP1334-3BA00 SITOP Power Supply

The Siemens 6EP1334-3BA00 is a versatile, high-performance stabilized load power supply from the SITOP modular family. This unit provides a constant 24V DC output at a 10A current rating for industrial machinery. Its robust engineering supports complex automation tasks that require high reliability and efficiency. Consequently, the power supply acts as a dependable energy source for controllers and field devices alike. The module excels in maintaining a steady voltage even during significant load variations or mains fluctuations.

Furthermore, this PSU200M module features a unique ultra-wide input range for global application. It supports single-phase and two-phase operation across various international electrical grids. The compact metal housing facilitates efficient heat dissipation and saves valuable space on the DIN rail. Integrated protective mechanisms prevent damage from short circuits or thermal overloads during critical process phases. This combination of features makes the 6EP1334-3BA00 a standard choice for modern plant engineering.

Technical Specifications and Hardware Details

Key Operational Characteristics

Exceptional Input Versatility

The module offers an expansive input window to accommodate different power line standards. It automatically switches between 120V and 230V AC or operates on two phases of a 500V system. This flexibility reduces the need for multiple hardware variants in global machine exports. Moreover, the unit provides reliable mains buffering to bridge brief power interruptions. Such stability prevents unexpected system shutdowns and maintains production continuity.

Industrial-Grade Protection and Safety

Siemens prioritizes system uptime by including comprehensive electronic protection. The 6EP1334-3BA00 features an adjustable constant current characteristic for handling high inrush loads. In the event of a short circuit, the module limits the current to prevent cable damage. Additionally, the unit provides galvanic isolation between the input and output circuits. These safety protocols ensure long-term durability for both the power supply and connected PLC components.

High Efficiency and Thermal Management

The PSU200M series achieves high energy efficiency, which minimizes heat generation inside the control cabinet. Low power loss extends the service life of internal capacitors and nearby electronic modules. Because the unit utilizes natural convection cooling, it operates silently without mechanical fans. This thermal efficiency allows for dense hardware packing on the DIN rail. It remains a cost-effective solution for reducing overall energy consumption in automated facilities.
