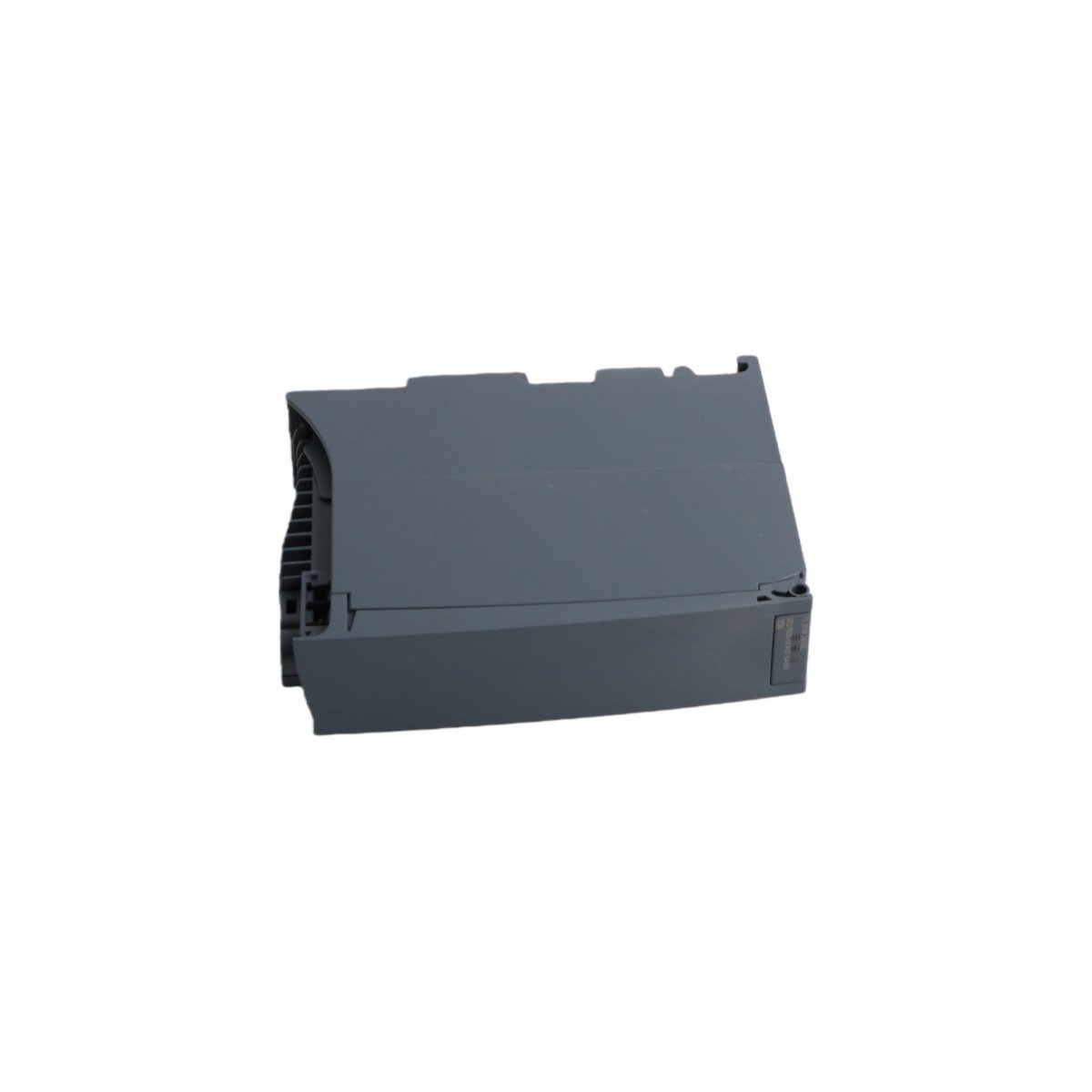

The Siemens 6ES7505-0KA00-0AB0 is a 25W system power supply for S7-1500 PLCs. It provides stable 24V DC backplane power for expanded I/O configurations.
The Siemens 6ES7505-0KA00-0AB0 is a high-performance system power supply (PS). It specifically supports the SIMATIC S7-1500 and ET 200MP automation platforms. This 25W module converts 24V DC input into internal backplane bus power. Consequently, it provides the necessary energy for the CPU and all attached I/O modules. The unit acts as a critical power bridge for the entire controller rack. It ensures that internal communications and logic functions remain stable during operation.
Furthermore, this power supply excels in demanding industrial environments. It provides reliable buffering against electrical noise and voltage dips. The hardware architecture prioritizes long-term durability and heat efficiency. Because it integrates directly into the S7-1500 rail system, installation requires minimal effort. This module is essential for configurations where the CPU’s internal power cannot support all modules.
| Feature | Detailed Specification |
| Brand | Siemens |
| Order Number | 6ES7505-0KA00-0AB0 |
| Module Class | System Power Supply (PS) |
| Output Power | 25 Watts |
| Input Voltage | 24V DC (Nominal) |
| Input Range | 19.2V DC to 28.8V DC |
| Power Loss | 6.2 Watts (Typical) |
| System | SIMATIC S7-1500 / ET 200MP |
| Dimensions (WxHxD) | 35 x 147 x 129 mm |
| Weight | Approximately 0.35 kg |
The module accepts a standard 24V DC nominal input for industrial compatibility. Its wide operational window handles fluctuations between 19.2V and 28.8V DC. This flexibility ensures the PLC remains active during minor power supply inconsistencies. Moreover, the unit provides effective mains buffering for short-term voltage interruptions. This capability prevents unexpected system restarts and data loss in the field.
Engineers can configure the 6ES7505-0KA00-0AB0 directly within the TIA Portal software. It supports comprehensive diagnostics and energy management from version V12 and higher. Consequently, the system can monitor the current power consumption of the backplane. This data helps users optimize their hardware configuration and prevent overloads. The software integration simplifies both initial commissioning and ongoing maintenance tasks.
This power supply effectively extends the power budget of the S7-1500 backplane bus. It allows for larger module counts and more complex automation architectures. Because it connects directly to the bus, it supplies power without external wiring. This design reduces cabinet clutter and improves overall signal integrity. It represents a foundational component for high-performance PLC stations requiring maximum reliability.
