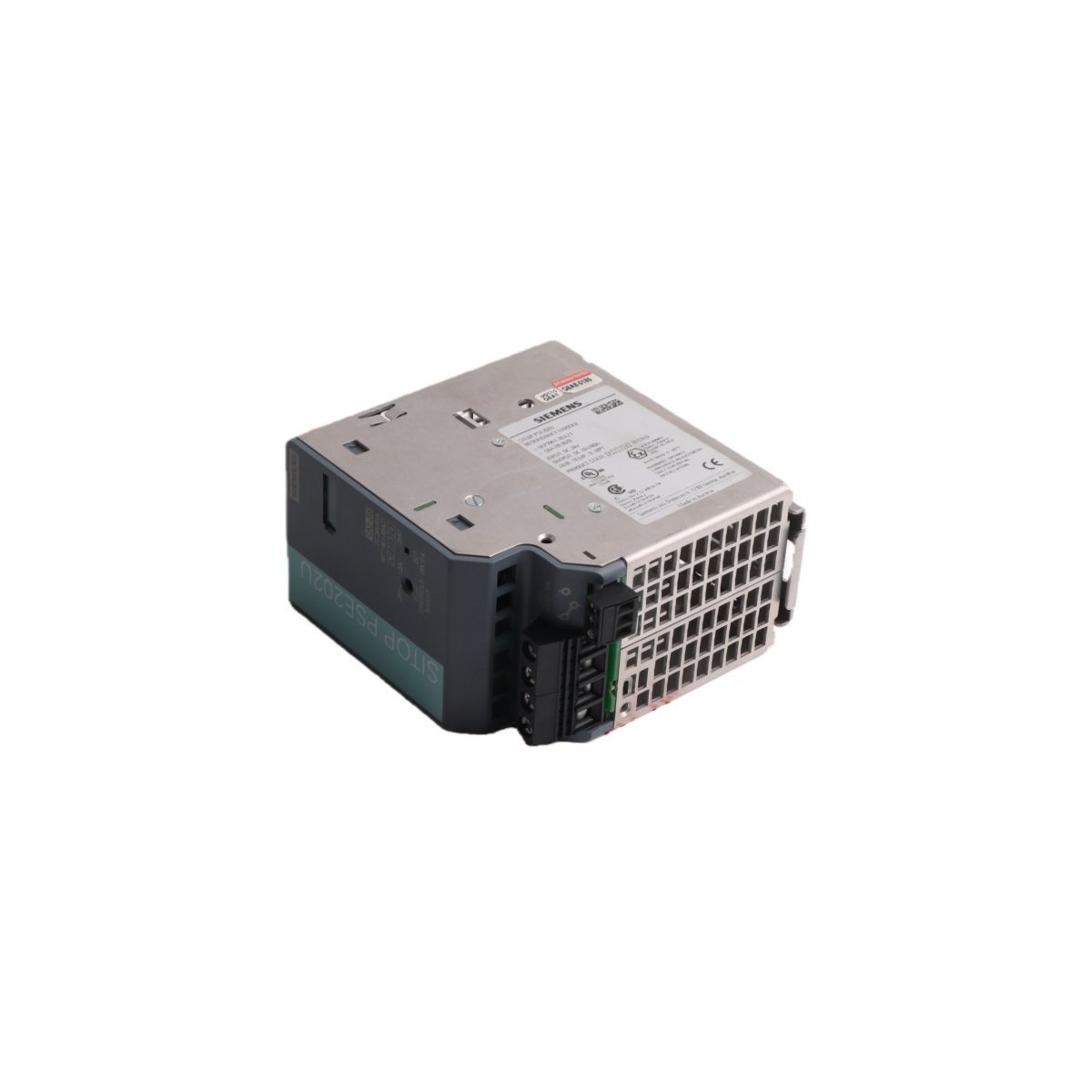

The Siemens 6EP1961-3BA21 is a high-performance SITOP PSE202U redundancy module. This device ensures maximum availability for industrial 24V DC power architectures. By decoupling two power supply units, it prevents system-wide failures. Furthermore, the module manages a total output current of up to 40 Amperes. It specifically bridges two separate 20A power sources. If one unit fails, the other immediately carries the full electrical load. Consequently, critical automation processes continue without any interruption.
Operational Advantages
This module provides an essential safety layer for mission-critical machinery. It effectively isolates internal power supply faults from the DC bus. Additionally, the integrated signaling contact monitors the health of connected units. This feature sends immediate alerts to a PLC or higher-level controller. Engineers can therefore identify and replace faulty power units before a total shutdown occurs. The module also features a rugged DIN rail design. This allows for quick integration into standard control cabinets.
Technical Specifications
| Parameter | Specifications |
| Manufacturer | Siemens |
| Order Number | 6EP1961-3BA21 |
| Product Series | SITOP PSE202U |
| Input Voltage | 24 V DC (24… 28.8 V) |
| Output Current | 40 A Maximum |
| Degree of Protection | IP20 |
| Weight | 0.50 kg |
| Dimensions (W x H x D) | 70 x 125 x 125 mm |
Versatile System Integration
Beyond basic redundancy, the SITOP 6EP1961-3BA21 supports flexible power scaling. Users can parallel several power units to increase total current capacity. While expanding power, the system still maintains its redundant protection characteristics. This dual-purpose functionality fits perfectly in complex plants and manufacturing lines. The module operates reliably in temperatures ranging from -20°C to +70°C. Therefore, it withstands the demanding thermal conditions found in industrial environments. Its energy-efficient design minimizes heat dissipation during normal operation.
Industrial Applications
- Continuous process control systems in chemical plants.
- Automated assembly lines for automotive manufacturing.
- Critical data monitoring and communication nodes.
- Power distribution for distributed I/O and PLC racks.
