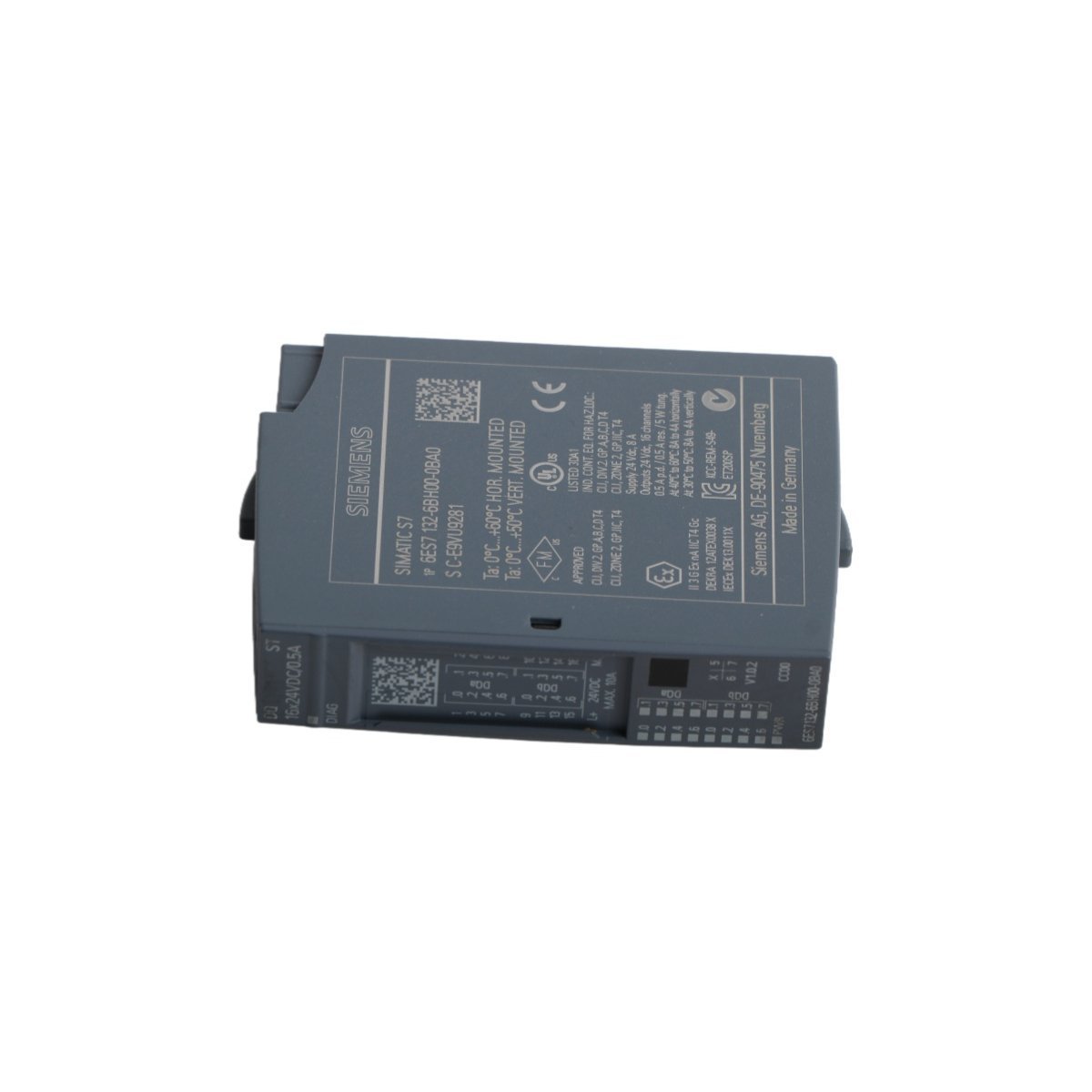

The Siemens 6ES7132-6BH00-0BA0 is a 16-channel digital output module for the ET 200SP system. It provides 24V DC/0.5A PNP switching and integrated diagnostics. This compact unit ensures reliable actuator control and high-density I/O expansion in industrial automation.
The Siemens 6ES7132-6BH00-0BA0 is a versatile digital output module for the SIMATIC ET 200SP distributed I/O system. This standard-class module provides 16 high-density output channels in a compact 15mm width. It manages the switching of 24V DC actuators with precision and speed. Automation engineers use this module to control valves, contactors, and signaling devices. It integrates perfectly into high-performance PROFINET or PROFIBUS network architectures.
| Feature | Details |
| Model Number | 6ES7132-6BH00-0BA0 |
| Output Type | Digital Output (Source/PNP) |
| Number of Channels | 16 |
| Rated Voltage | 24V DC |
| Output Current | 0.5 A per channel |
| Base Unit Requirement | Type A0 |
| Color Code | CC00 |
| Weight | 0.028 kg (typical) |
This module features PNP switching technology for reliable sourcing output. Each of the 16 channels handles up to 0.5A of current safely. Furthermore, the hardware includes integrated protection against short circuits and surges. The module supports “substitute value” functionality during communication loss. This feature allows the outputs to maintain a safe state automatically. Consequently, process safety remains intact even during network interruptions. The front-facing LEDs provide immediate status feedback for each individual channel.
The unit utilizes the push-in terminal system of the ET 200SP base units. This design allows for tool-free wiring and significantly reduces installation time. Additionally, the module supports hot-swapping during active PLC operation. It offers extensive diagnostics for wire breaks and supply voltage errors. Such detailed feedback enables predictive maintenance and reduces plant downtime. This German-engineered component withstands the rigorous demands of modern industrial environments.
