Siemens 6ES7321-1BH01-0AA0 Digital Input Module

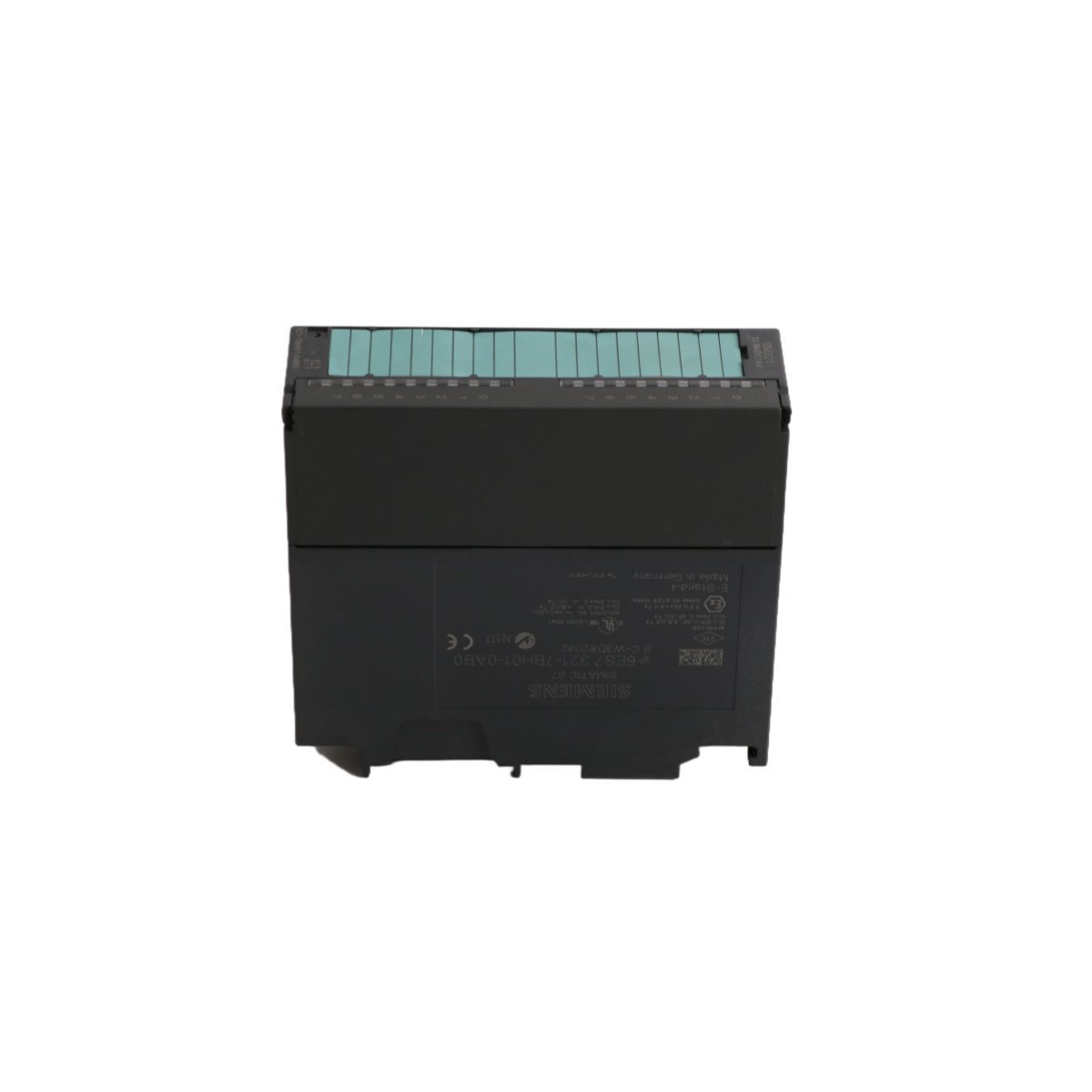

The Siemens 6ES7321-1BH01-0AA0 serves as a high-density digital input expansion for the SIMATIC S7-300 PLC series. This module facilitates the acquisition of discrete signals from the field level to the controller. It converts external 24V DC binary signals into internal logic levels for the central processing unit. The unit features 16 input channels organized into a compact housing. It requires a 20-pin front connector for electrical interfacing. Engineers frequently use this module to monitor switches and proximity sensors.

Technical Specifications

Core Functional Characteristics

This digital input module utilizes optical couplers to ensure galvanic isolation between the PLC and the field. Such isolation protects the internal electronics from high-voltage surges and electromagnetic interference. Each channel reliably detects signal states even in electrically noisy industrial environments. The module supports a sink-input configuration where the common potential connects to the negative rail. Green LED indicators on the front panel provide real-time status for every input point. This visual feedback simplifies troubleshooting during commissioning and maintenance phases.

Industrial Applications
