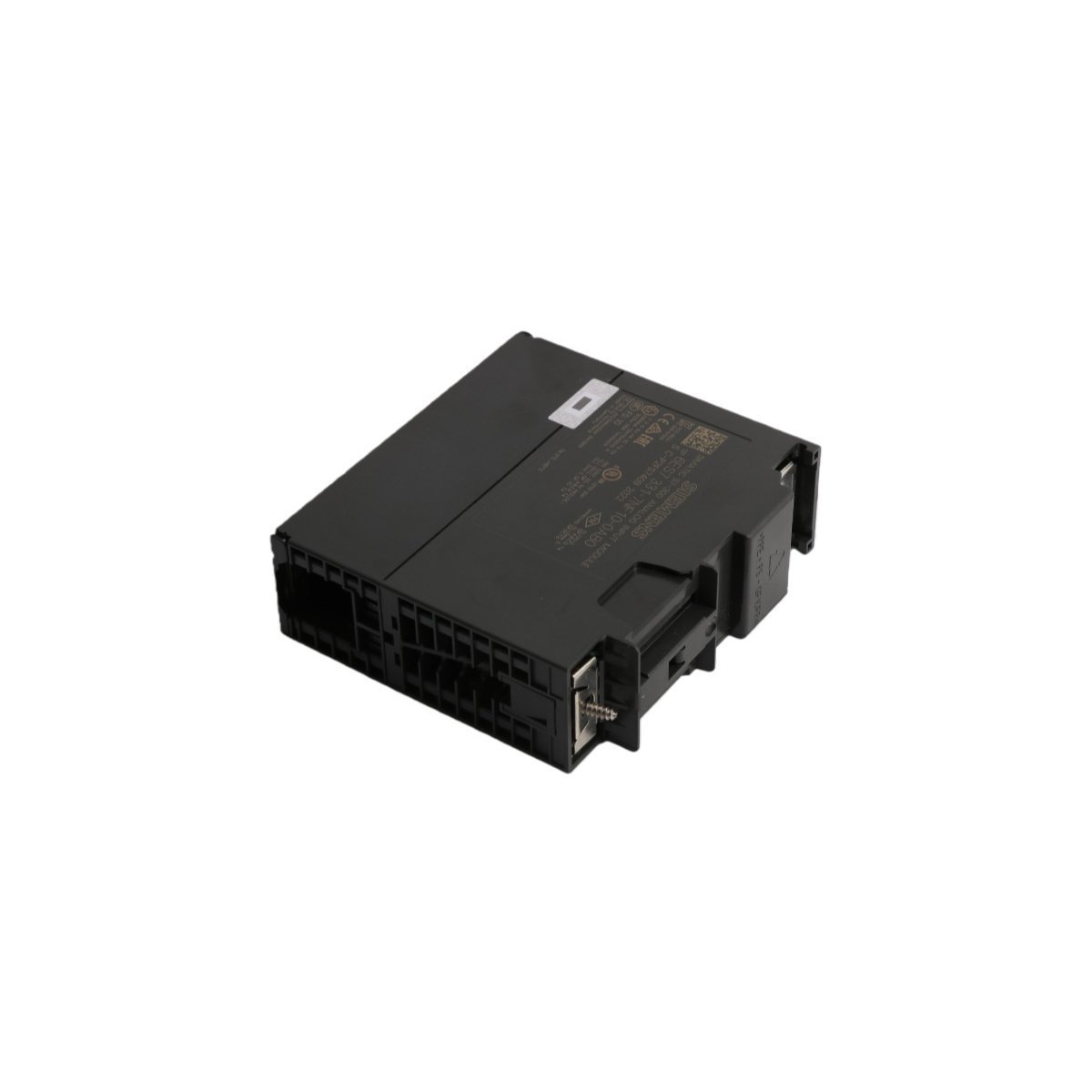

The Siemens 6ES7331-7NF10-0AB0 is a 16-bit SM 331 analog input module with 8 isolated channels. It supports voltage and current signals for S7-300 PLCs.
The Siemens 6ES7331-7NF10-0AB0 is a precision-engineered analog expansion for the SIMATIC S7-300 PLC system. This module provides eight isolated channels for high-speed signal acquisition in complex automation environments. Because it utilizes a 16-bit resolution, it delivers superior measurement granularity for critical process variables. The hardware integrates seamlessly with the S7-300 backplane to provide real-time data to the central processor.
Furthermore, the module supports a diverse range of signal types for maximum field flexibility. It manages both voltage and current inputs without requiring separate specialized hardware units. This consolidation reduces cabinet space requirements and simplifies spare parts inventory. Consequently, it remains a preferred choice for high-speed, high-accuracy industrial monitoring applications.
| Feature | Detailed Specification |
| Brand | Siemens |
| Order Number | 6ES7331-7NF10-0AB0 |
| Module Series | SIMATIC S7-300 SM 331 |
| Input Channels | 8 Isolated Inputs |
| Resolution | 16 Bits |
| Voltage Ranges | ±10V, ±5V, 1 to 5V |
| Current Ranges | ±20mA, 0 to 20mA, 4 to 20mA |
| Conversion Time | 10ms (4-channel) to 95ms (8-channel) |
| Common Mode Voltage | Max. 60V AC/DC |
| Power Consumption | 3.0 Watts (Typical) |
This module accommodates various industrial signal standards within a single unit. It supports bipolar voltage ranges like ±10V and ±5V for diverse sensor types. Additionally, it handles standard current loops including 4-20mA and 0-20mA. This adaptability allows users to interface with pressure transmitters, flow meters, and thermal sensors efficiently.
The 16-bit analog-to-digital converter ensures exceptional data accuracy for sensitive control loops. Each channel undergoes rapid processing to maintain system responsiveness. When configured for 4-channel operation, conversion times drop significantly to 10ms. This speed enables the PLC to react quickly to rapid fluctuations in process conditions.
The 6ES7331-7NF10-0AB0 features robust electrical isolation between channels and the backplane bus. This design prevents ground loops from interfering with signal integrity. Moreover, the inputs withstand temporary overvoltages reaching 75V without sustaining damage. Integrated reverse polarity protection further safeguards the module against common field wiring errors.
