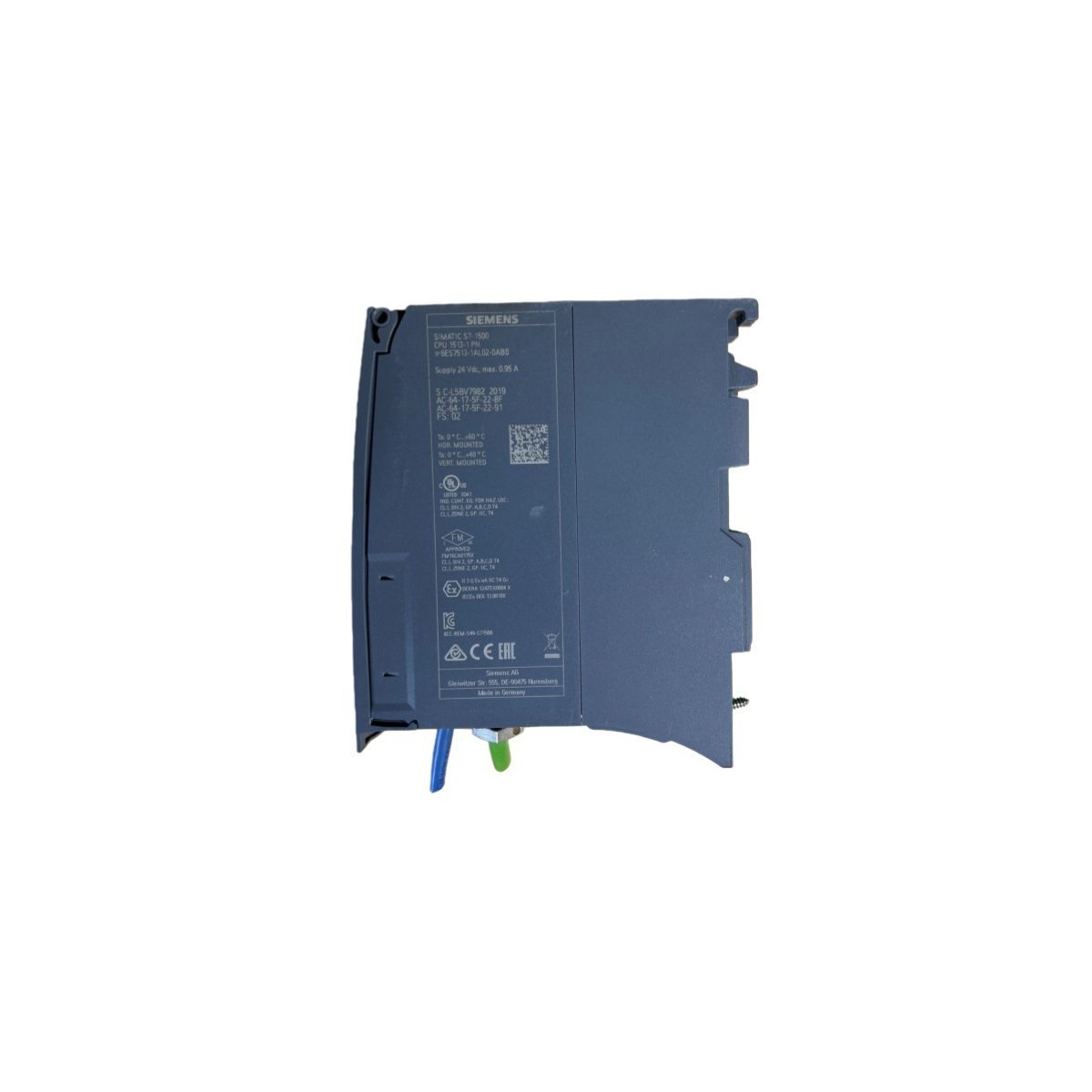

The Siemens 6ES7513-1AL02-0AB0 is a high-speed CPU 1513-1 PN for SIMATIC S7-1500 systems. It features 300KB program memory, 1.5MB data memory, and dual PROFINET ports, delivering 40ns bit performance for precise industrial control.
The Siemens 6ES7513-1AL02-0AB0 is a high-performance central processing unit designed for the SIMATIC S7-1500 controller family. This module serves as the primary intelligence for medium-scale automation projects. It excels in applications requiring high processing speeds and balanced memory ratios. Because it utilizes the advanced TIA Portal engineering framework, it simplifies complex system integration. The hardware effectively bridges the gap between basic controllers and high-end industrial processors.
| Feature | Detailed Specification |
| Brand | Siemens |
| Model Number | 6ES7513-1AL02-0AB0 |
| Work Memory (Program) | 300 KB |
| Work Memory (Data) | 1.5 MB |
| Bit Performance | 40 ns |
| Communication Port | PROFINET IRT (2-port switch) |
| Firmware Version | V2.9 (or higher) |
| Configuration Software | TIA Portal V17 or later |
| Operating Temperature | -30 °C to +60 °C (Horizontal) |
This CPU unit delivers impressive execution speeds with a 40-nanosecond bit performance. Such speed allows the controller to handle demanding logic tasks with minimal jitter. Furthermore, the integrated 1.5 MB data memory supports extensive recipe management and data logging. The dual-port PROFINET interface facilitates flexible network topologies without additional switches. Consequently, users can implement line or ring structures directly. The unit also supports isochronous mode for high-speed motion control synchronization.
