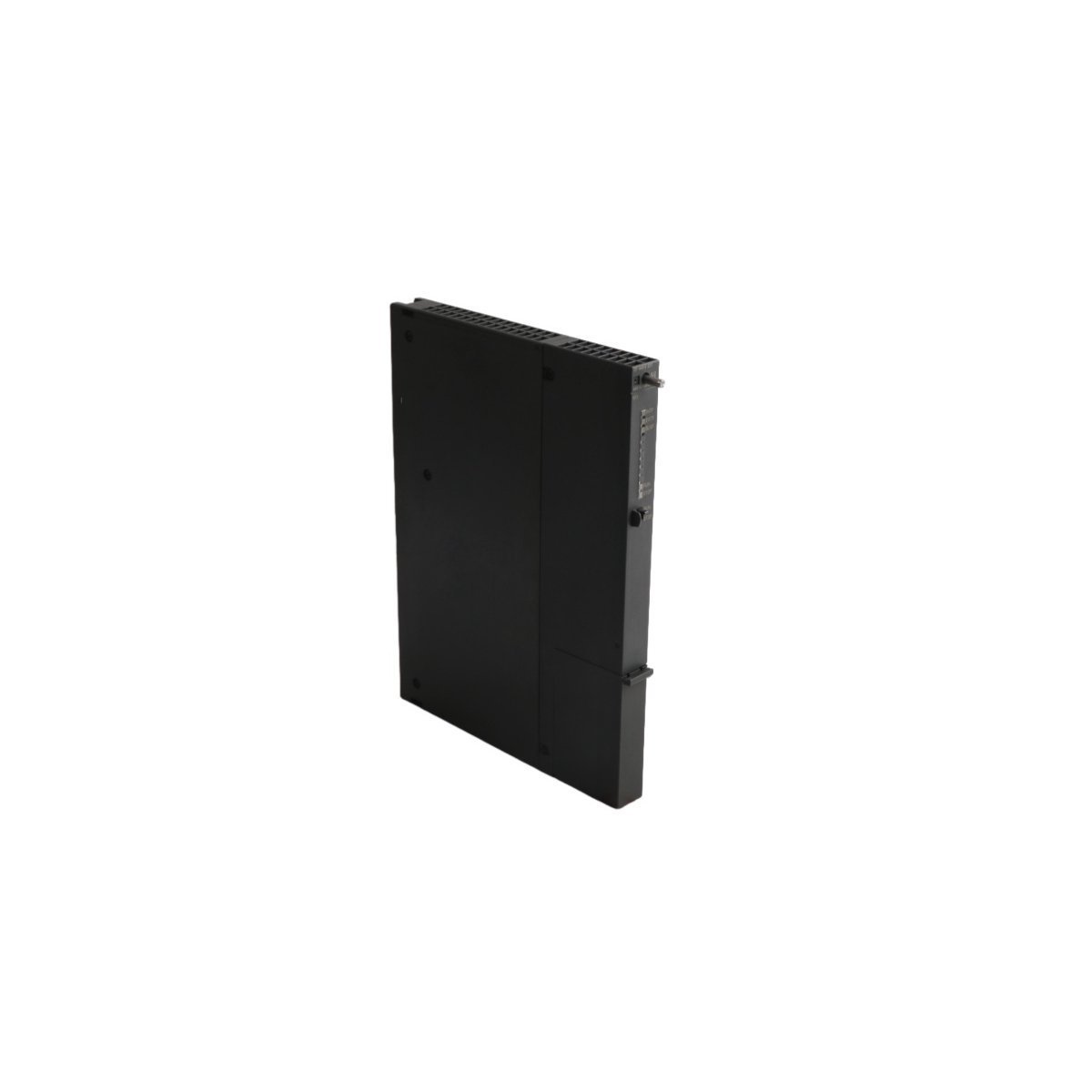

Siemens 6GK7443-5DX05-0XE0 Communication Module CP 443-5 Extended

The Siemens 6GK7443-5DX05-0XE0 is a professional-grade communication processor designed for the SIMATIC S7-400 PLC series. It functions primarily as an advanced PROFIBUS DP interface. This module enables high-speed data exchange across complex industrial networks. Moreover, it links the powerful S7-400 controller with various distributed field devices.

This “Extended” version provides enhanced connectivity options for large-scale automation projects. It handles both master and slave configurations with exceptional stability. Additionally, the processor supports S7 communication and standard PG/OP functions. This allows for seamless integration with HMI systems and programming tools. The hardware reliably manages communication tasks to reduce the main CPU load.

Technical Data and Specifications

Key Functional Characteristics

Robust PROFIBUS Networking

The module features a high-speed RS485 interface for PROFIBUS DP connectivity. It supports transmission speeds up to 12 Mbit/s for real-time control. Furthermore, the hardware ensures precise clock synchronization across the entire network. This capability proves essential for time-critical manufacturing processes.

Extensive Protocol Support

This communication processor handles multiple industrial protocols simultaneously. It manages PROFIBUS DP V0/V1 master tasks efficiently. Additionally, the unit facilitates data exchange with legacy SIMATIC S5 systems. This makes the module a perfect choice for plant modernization projects.
