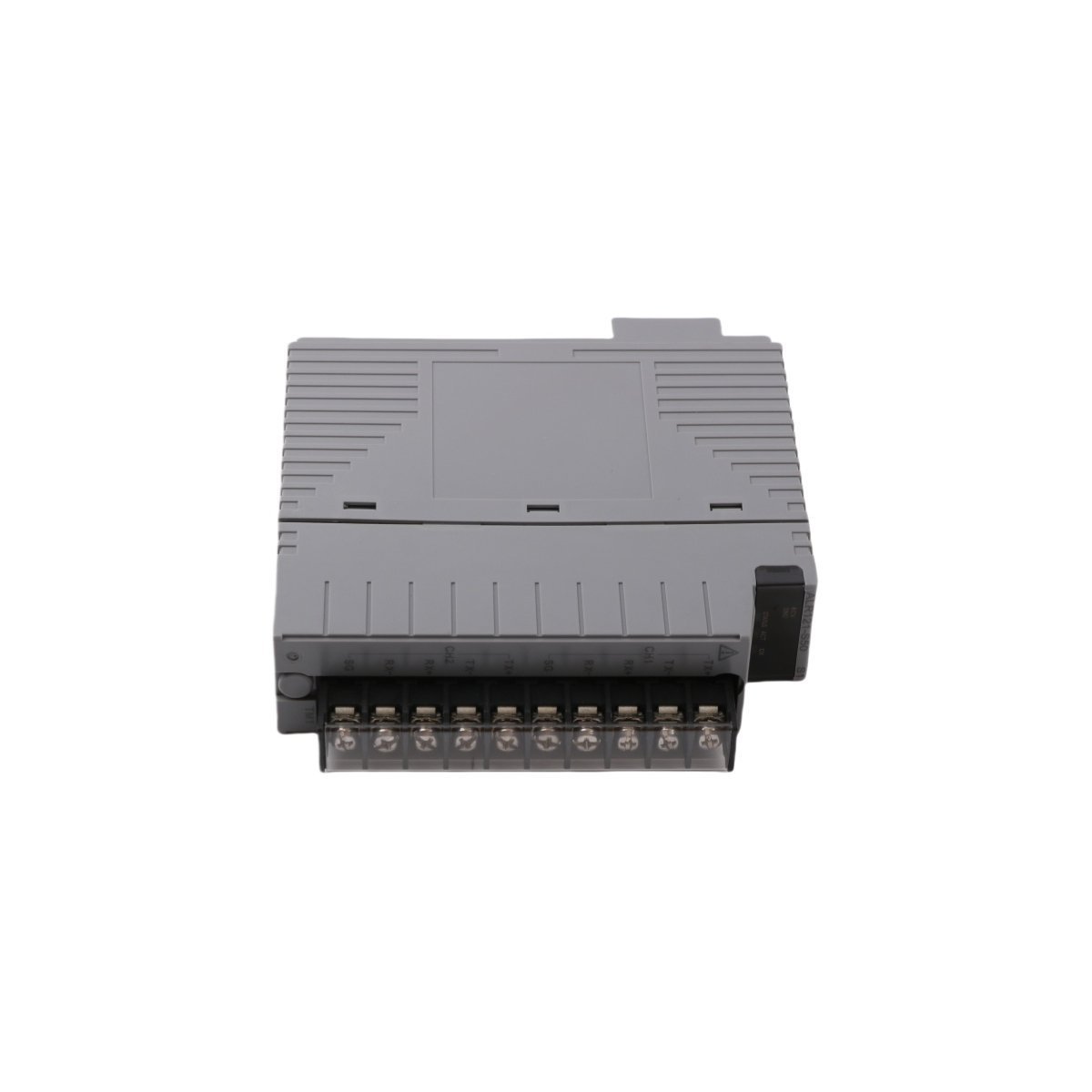

Yokogawa ALR121-S50 SERIAL COMMUNICATION MODULE

The Yokogawa ALR121-S50 serves as a high-integrity serial communication interface for industrial safety systems. This module primarily facilitates data exchange between ProSafe-RS Safety Control Stations and external Modbus devices. Because it carries SIL3 certification, the unit maintains strict safety integrity during all transmission cycles. It functions as a Modbus slave to provide essential process data to master controllers. Consequently, the hardware ensures that plant connectivity never compromises the primary safety logic.

Hardware Architecture and Reliability

The ALR121-S50 features a robust design to handle demanding industrial environments. It includes complete electrical isolation to prevent signal interference across the network. Furthermore, the module utilizes redundant internal contacts to enhance hardware availability. The front panel displays clear LED indicators for real-time status diagnostics. These visual tools simplify troubleshooting during routine maintenance or system startups. Additionally, the compact form factor allows for efficient installation within high-density control cabinets.

Industrial Applications and Performance

Engineering teams deploy this module for mission-critical tasks in various heavy industries. It plays a vital role in Emergency Shutdown Systems (ESD) and Fire and Gas (F&G) monitoring. In oil refineries, the module manages Modbus communication for combustion control loops. It also supports burner management systems requiring high data transparency and safety. Since it supports an extended temperature range, the unit operates reliably in diverse climate conditions. Therefore, it remains a trusted component for integrating safety and control layers.

Maintenance and Installation

The module supports hot-swapping to ensure continuous plant operation during hardware replacements. This feature significantly reduces the Mean Time to Repair (MTTR) for the safety system. Moreover, the intuitive wiring interface reduces the risk of connection errors during field setup. The hardware integrates seamlessly with standard Yokogawa ProSafe-RS engineering software for rapid configuration. This compatibility allows for fast deployment of complex serial communication networks.

Technical Specifications
