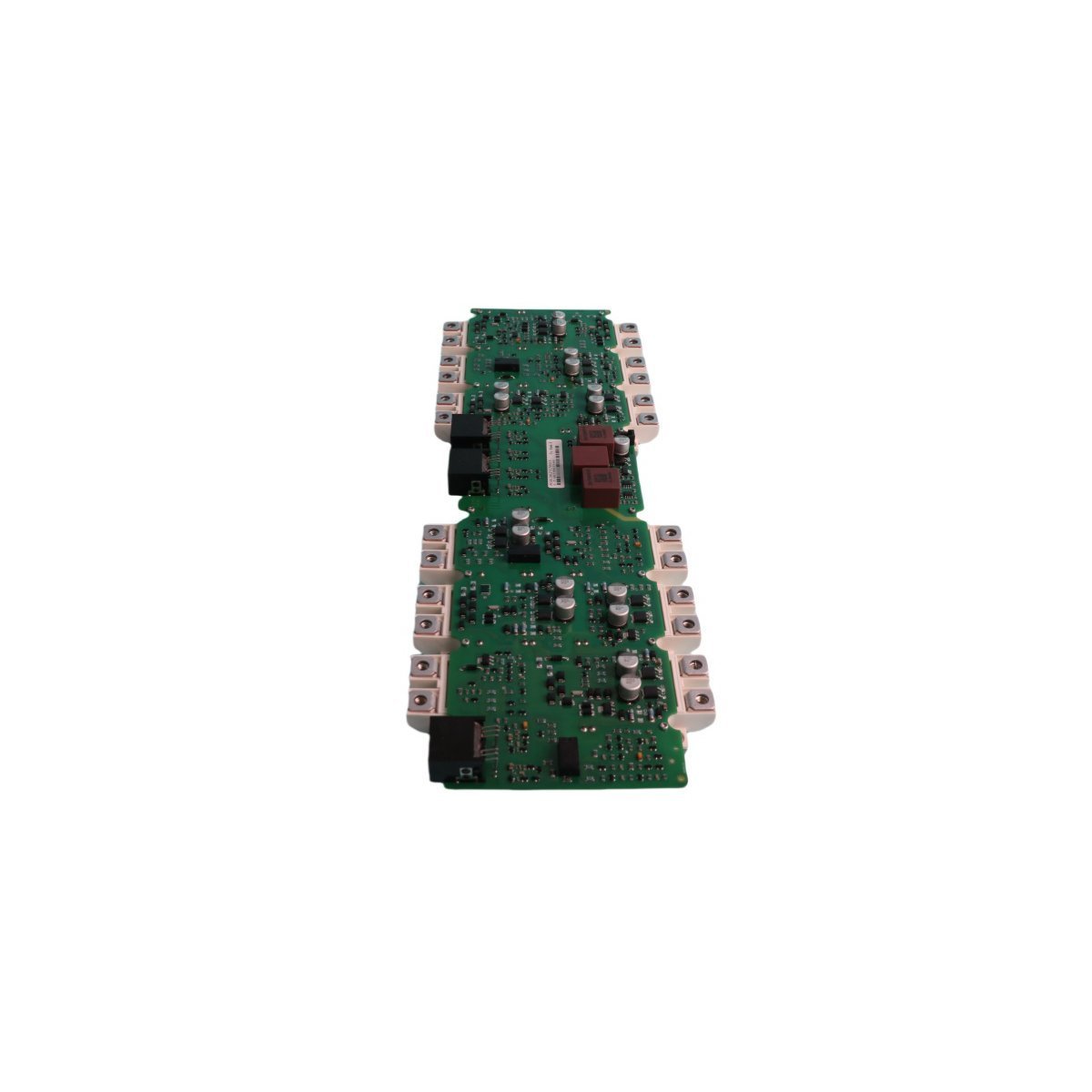

Siemens A5E42740130 Robicon High Voltage Inverter Power Unit

The Siemens A5E42740130 is a premium Robicon high-voltage inverter power unit. Featuring >96% efficiency and a compact German-engineered design, it converts 3-phase AC to regulated DC for high-performance industrial drive applications and intelligent system monitoring.

Request a Quote

High-Efficiency Power Conversion

The Siemens A5E42740130 stands as a high-performance power unit specifically engineered for Robicon high-voltage inverter systems. This sophisticated module manages the conversion of a 3-phase AC input, typically ranging from 380V to 480V, into a stable and regulated DC output between 510V and 720V. Because it utilizes Active Front End (AFE) technology, the unit achieves an exceptional power factor of over 0.98 and maintains efficiency levels exceeding 96%. This high-tier energy conversion minimizes heat dissipation and lowers overall operational expenses in heavy-duty industrial environments.

Core Technical Specifications

  • Manufacturer: Siemens (Robicon)
  • Product Series: High Voltage Inverter Series
  • Part Number: A5E42740130
  • Input Voltage: 3-Phase 380-480V AC (±10%)
  • Output Voltage: 510-720V DC
  • Input Frequency: 47-63 Hz
  • Efficiency: > 96%
  • Power Factor: > 0.98 (AFE version)
  • Physical Dimensions: 12.2 x 10.7 x 3.0 cm
  • Net Weight: 0.38 kg
  • Global Tariff Code (HS): 8537101190
  • Origin: Germany

Advanced Monitoring and Industrial Protection

Siemens designed the A5E42740130 to excel in demanding drive applications where system stability is paramount. The unit incorporates intelligent monitoring capabilities that constantly track power quality and thermal status, which effectively prevents unexpected system shutdowns. Moreover, the compact form factor allows for dense installation within control cabinets, making it a preferred choice for space-constrained facilities. Its robust construction protects sensitive internal electronics against the electrical noise and fluctuations commonly found in large-scale industrial power grids.

Seamless Automation Integration

As a vital element of the Siemens industrial portfolio, this power unit ensures effortless integration with PLC-based automation architectures and Ethernet-capable routers. Whether you are performing a critical system upgrade or implementing a new high-voltage drive installation, the A5E42740130 provides the reliability required for continuous production cycles. Furthermore, the German-engineered quality guarantees long-term durability, which reduces the frequency of maintenance intervals and enhances the total lifecycle value of the inverter system.

Tags:
