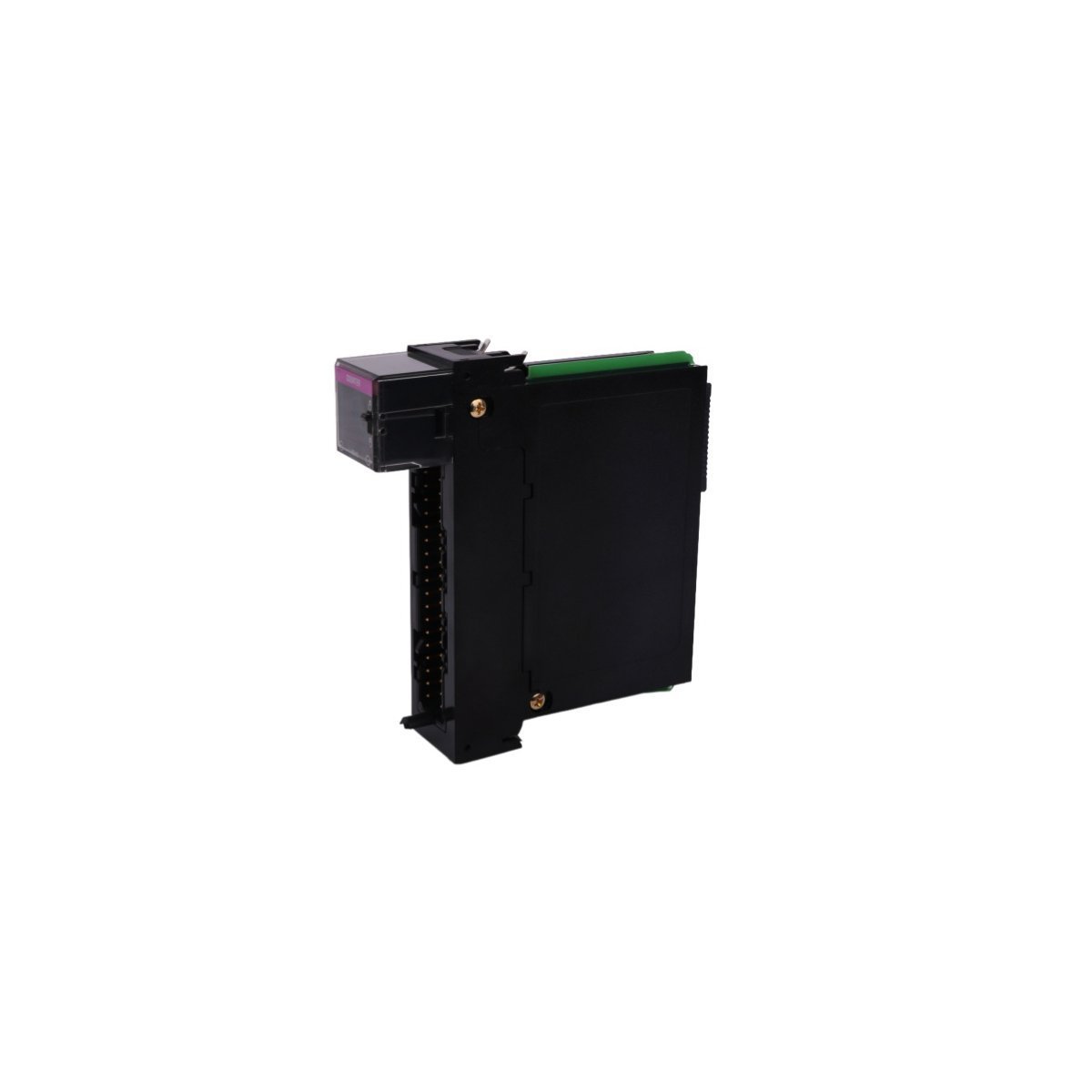

Allen-Bradley 1756-HSC ControlLogix High-Speed Counter Module

Product Overview

The Allen-Bradley 1756-HSC functions as a sophisticated counter module within the ControlLogix architecture, enabling precise input tracking for high-speed industrial processes. System integrators utilize this module to interface directly with incremental encoders, proximity sensors, and photoelectric detectors, effectively capturing rapid signal pulses that standard I/O modules often miss. Because it processes signals locally, the module reduces the overhead on the main controller, thereby maintaining synchronization and accuracy in motion control applications such as packaging, material handling, and assembly lines.

Technical Specifications

• Model Identification: 1756-HSC
• Manufacturer: Allen-Bradley (Rockwell Automation)
• Platform: ControlLogix
• Input Compatibility: Incremental Encoders, 3-Wire DC Sensors
• Status: Discontinued (Effective June 30, 2016)
• Physical Dimensions: 3.5 x 13 x 14.5 cm
• Weight: 0.9 kg
• Mounting: ControlLogix Chassis
• Operating Temperature: 0 to 60 °C

Enhanced Performance and Operational Reliability

The module significantly enhances process reliability by providing high-speed response times, which ensures that automated systems maintain tight tolerances during high-throughput operations. Moreover, this rapid processing capability minimizes the risk of signal loss in volatile industrial environments. Although Rockwell Automation discontinued this specific model in 2016, many legacy systems continue to rely on its proven architecture for critical counting tasks. In fact, the module remains a staple for stable, long-term operations where consistency is paramount.

Consequently, maintenance teams frequently utilize these units to replace existing modules, ensuring long-term operational continuity for established manufacturing infrastructure. Furthermore, this strategic approach allows plant managers to extend the lifespan of their current hardware without requiring a full system redesign. As a result, companies avoid the substantial costs and downtime associated with major software or hardware migrations, thereby maintaining a seamless and efficient production workflow.
