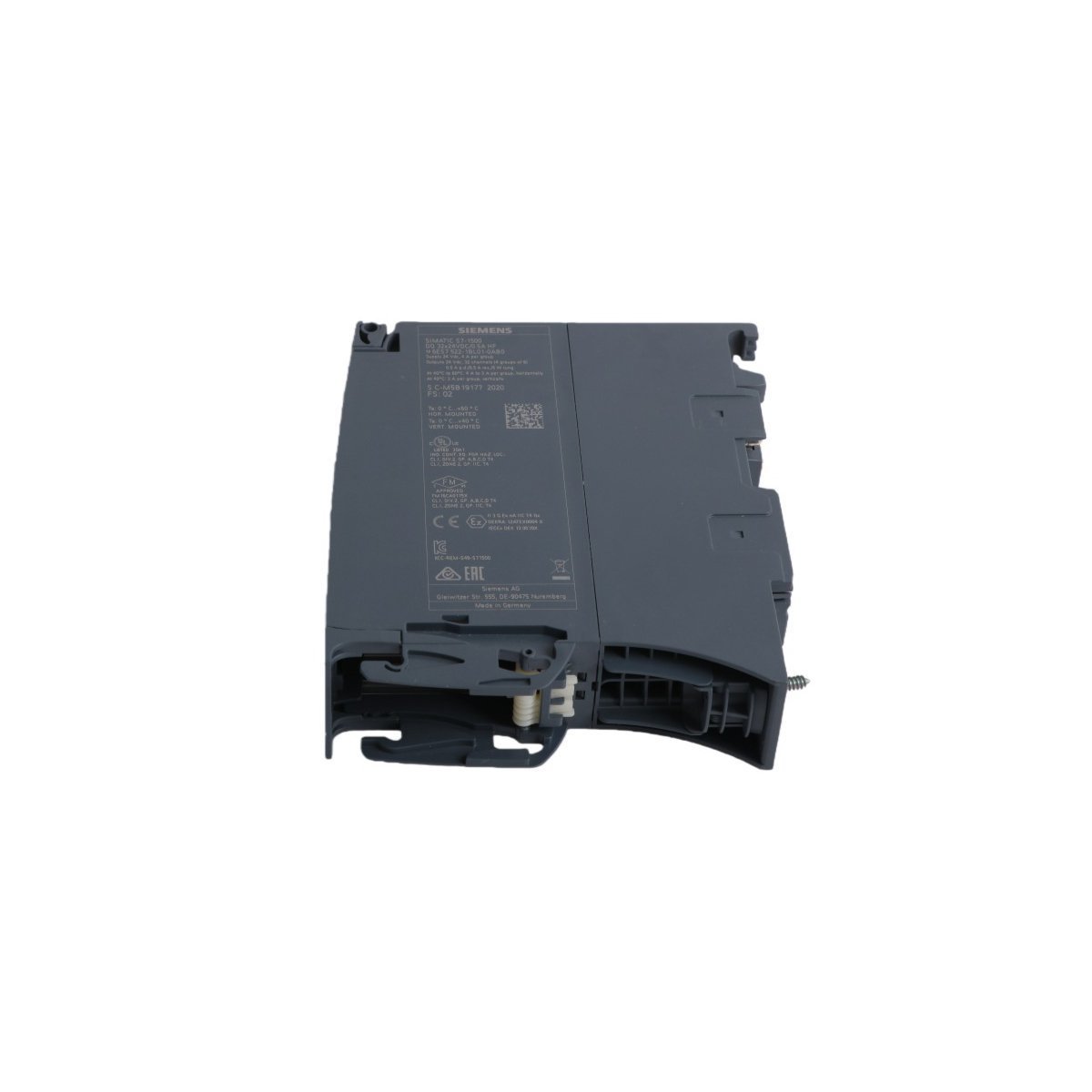

Siemens SIMATIC S7-1500 6ES7522-1BL01-0AB0 Digital Output Module

Functional Overview

The Siemens 6ES7522-1BL01-0AB0 serves as a high-performance discrete output interface for the SIMATIC S7-1500 PLC range. This module effectively bridges the gap between the controller’s logic and the physical process by switching 24V DC signals for actuators, valves, and contactors. Featuring 32 high-density channels in a slim 35mm wide housing, it actively optimizes cabinet space while maintaining the high data throughput required for modern manufacturing environments.

Technical Performance and Switching Capability

This module utilizes a transistor-based switching architecture (sourcing logic) to ensure rapid response times and long-term durability without mechanical wear. The electrical characteristics include:

• Output Channels: 32 Digital Outputs organized into groups of 8.
• Rated Voltage: 24 V DC (L+).
• Current Capacity: 0.5 A per channel, with a total aggregate current of 8 A per group.
• Switching Frequency: Supports up to 100 Hz for inductive loads and 2 kHz for resistive loads.
• Short-circuit Protection: Integrates electronic protection that actively limits current during fault conditions to prevent hardware damage.

Diagnostics and System Visualization

To minimize downtime and simplify commissioning, the 6ES7522-1BL01-0AB0 features comprehensive diagnostic capabilities. Operators can monitor the module’s status via the S7-1500 CPU display or the TIA Portal software through the following indicators:

• RUN/ERROR LEDs: Provide immediate status updates on the module’s operational readiness and internal health.
• Channel LEDs: Individual green LEDs for each of the 32 points indicate the current logic state (ON/OFF).
• Diagnosis Alarms: Detects and reports wire breaks and missing supply voltages at the channel group level.
• Identification & Maintenance (I&M): Supports I&M data 0 to 3 for fast electronic identification of the module’s version and installation date.

Advanced Integration Features

Siemens has engineered this module to support the “Industrial Internet of Things” (IIoT) readiness of the S7-1500 platform. It integrates seamlessly into the system architecture via:

• Isochronous Mode: Enables synchronized signal output with the bus cycle for high-precision motion control applications.
• Module Sharing: Supports Shared Device and MSI (Modular Shared Input/Output) functions, allowing multiple controllers to access the module simultaneously.
• Front Connectors: Utilizes the standardized 40-pin push-in or screw-type front connectors with a pre-wiring position to reduce installation time.
• Firmware Updates: Allows for field upgrades to ensure the module stays current with the latest system features and security patches.

Technical Specifications

• Number of Outputs: 32 (Sourcing/PNP)
• Power Dissipation: Typically 3.5 W
• Output Delay: Max 500 µs (from 0 to 1)
• Dimensions: 35 mm (W) x 147 mm (H) x 129 mm (D)
• Weight: Approximately 280 g
• Isolation: Tested at 707 V DC between channels and backplane bus
• Protection Class: IP20
