The Siemens 6SE7035-1TJ60-Z is a high-performance MASTERDRIVES Vector Control inverter. It features 510-650V DC link operation, 510A output, and precision PWM control for industrial three-phase drives.

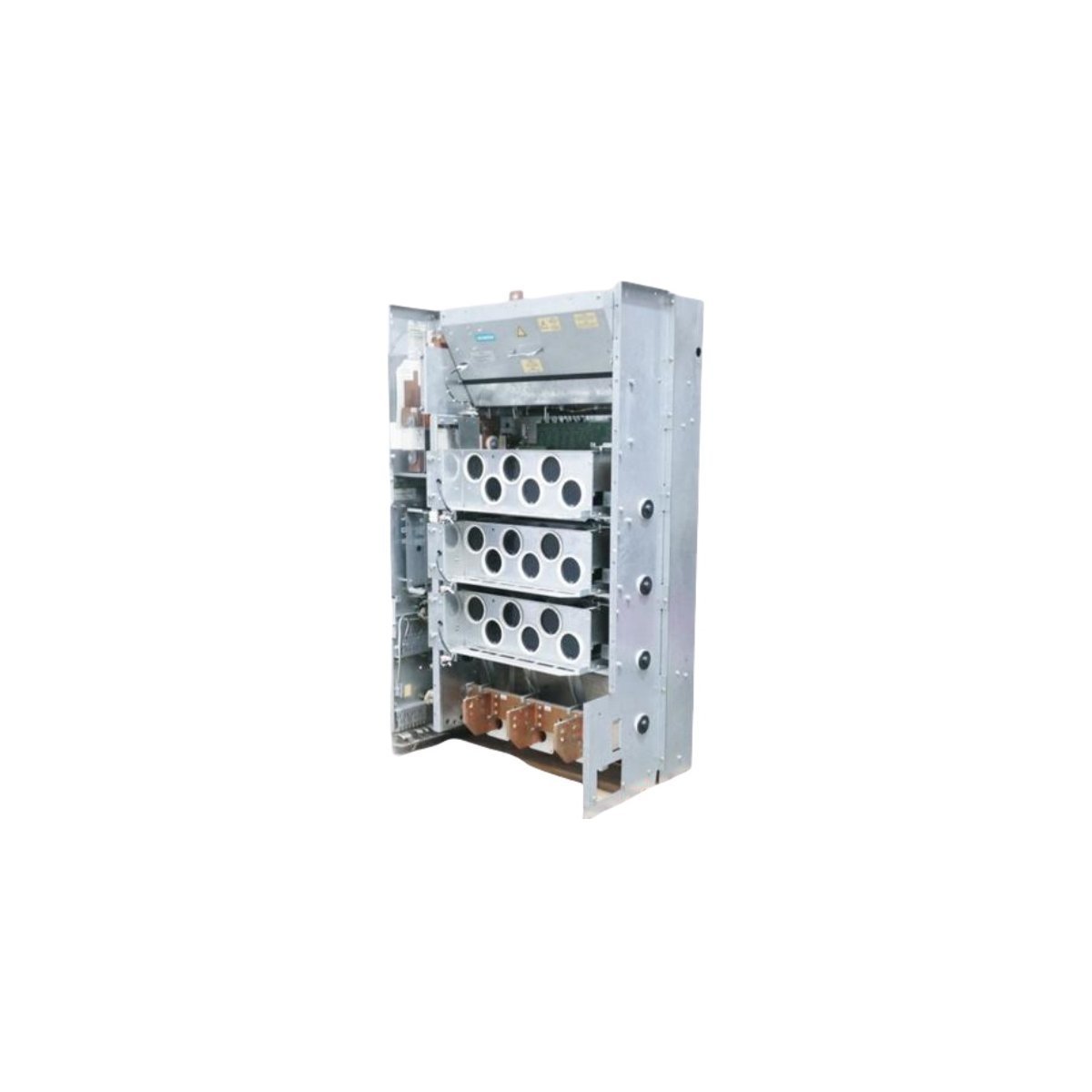

The Siemens 6SE7035-1TJ60-Z represents a high-performance inverter unit within the SIMOVERT MASTERDRIVES Vector Control series. Engineers utilize this module to achieve superior dynamic response and precision in three-phase drive applications. This specific unit operates within a DC link voltage range of 510V to 650V DC and employs sophisticated Pulse Width Modulation (PWM) to regulate output frequencies from 0 Hz up to 600 Hz. Whether managing simple speed control or complex torque-sensitive processes, the 6SE7035-1TJ60-Z provides the computational power necessary for modern industrial automation.
This Vector Control module excels at decoupling the flux-producing and torque-producing current components of an induction motor. By performing these complex vector calculations in real-time, the 6SE7035-1TJ60-Z allows an AC motor to achieve performance characteristics previously only possible with DC drives. The unit actively supports multiple feedback methods, including:
The Siemens 6SE7035-1TJ60-Z features an IP00 built-in design, prioritizing integration into centralized control cabinets. Operators manage the drive through several flexible interfaces, including the PMU operator panel, the removable OP1S user interface, or integrated terminal strips. To ensure future-proof scalability, the hardware includes six expansion slots. These slots accommodate various optional boards, such as PROFIBUS communication modules, additional I/O, or specialized encoder interfaces, allowing the drive to adapt as your process requirements evolve.
With a rated power of 250 kW and a continuous output current capacity of 510 A, this inverter handles heavy-duty industrial loads with ease. The internal electronics rely on a stabilized 24V DC power supply to maintain control logic integrity even during external power fluctuations. Its wide input tolerance (3-phase AC 380–480V ±10%) and adjustable switching frequency (2–16 kHz) allow technicians to tune the drive for optimal efficiency and noise reduction based on specific environmental needs.
