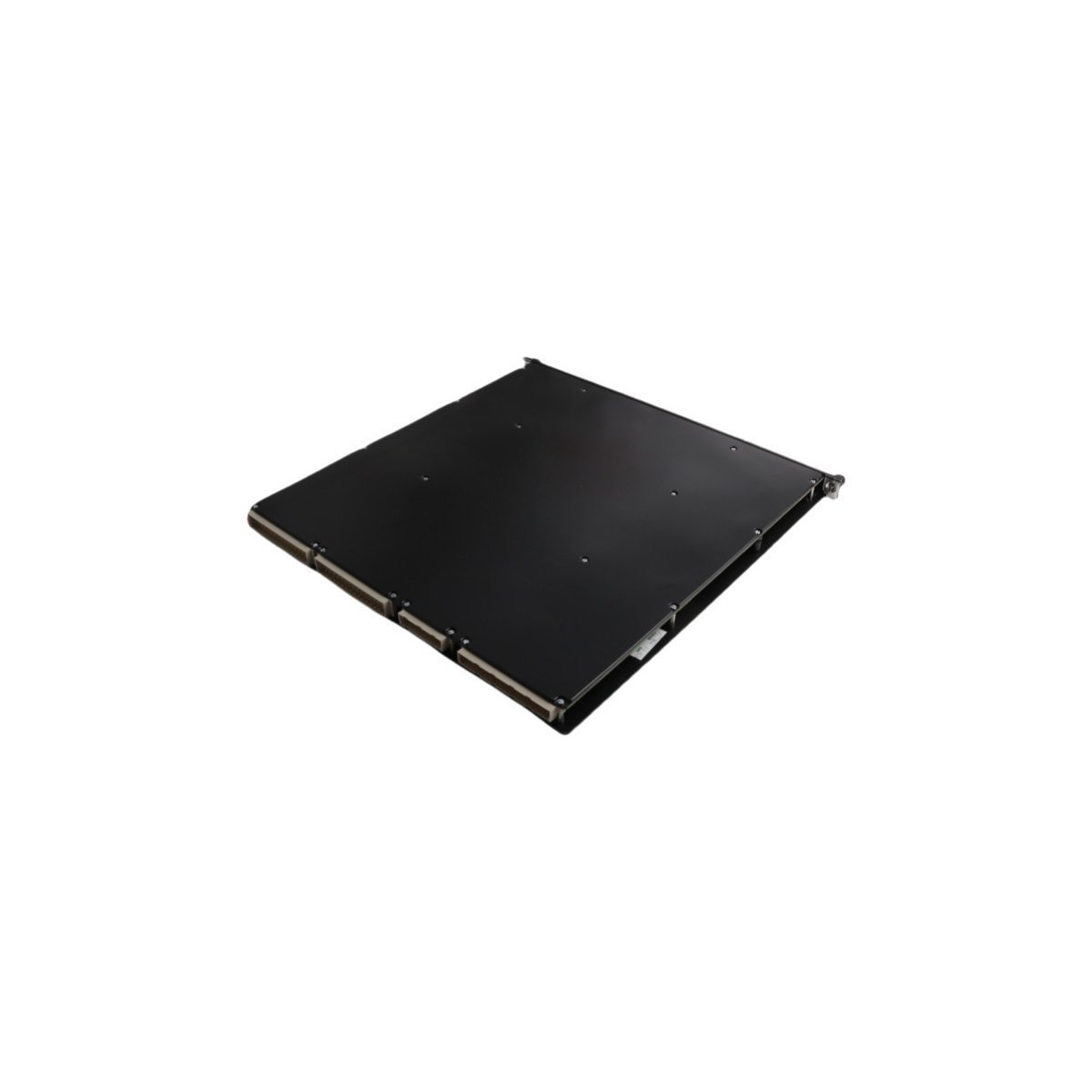

Triconex 3625N Digital Output Module

Functional Overview

The Triconex 3625N serves as a critical safety-certified digital output interface within the Tricon High-Availability Controller platform. This module actively employs Triple Modular Redundancy (TMR) architecture to ensure that a single hardware failure does not compromise the safety or availability of the process. By utilizing three isolated internal paths that “vote” on the final output state, the unit provides the highest level of fault tolerance for mission-critical applications such as Emergency Shutdown (ESD) and Fire and Gas (F&G) systems.

TMR Architecture and Voting Logic

The 3625N utilizes a sophisticated “Quad” output circuit design to manage its 16 discrete channels. This hardware-based voting mechanism ensures that the commanded state is accurately reflected at the field terminals. The technical advantages include:

• Triple Redundancy: Every output signal is processed by three independent microprocessors and three separate output switches.
• Fail-Safe Operation: The “Quad” voter circuit actively detects both “stuck-on” and “stuck-off” fault conditions, ensuring the system can always drive the load to its safe state.
• Hot-Swappability: Operators can replace a faulty module while the system is online without interrupting the process, as the redundant partner module maintains the output state.
• Load Compatibility: Designed for 24 V DC applications, supporting both resistive and inductive loads typical of industrial solenoid valves.

Diagnostics and Fault Detection

To maintain its SIL 3 rating, the 3625N performs continuous background diagnostics to verify the integrity of the output circuits. It simplifies maintenance through integrated monitoring features:

• Output Verifier: The module actively senses the voltage and current at the output terminals to ensure the field device matches the commanded state.
• Loop Supervision: Detects field-side issues such as open lines, short circuits, and missing field power.
• Status Indicators: The front panel features LED indicators for Module Status (Pass, Fault, Active) and individual Channel Status (On/Off/Fault).
• System Alarms: Reports internal discrepancies to the Triconex workstation, allowing for proactive maintenance before a system-level failure occurs.

Application and Safety Compliance

Because the Triconex 3625N is a “Nuclear-Qualified” (N-rated) component, it meets the most stringent regulatory requirements for high-risk industries. It is the primary choice for:

• Emergency Shutdown Systems (ESD): In offshore platforms and refineries.
• Burner Management Systems (BMS): For large-scale industrial boilers and furnaces.
• Nuclear Power Plant Control: Safety-related instrumentation and control (I&C) systems.
• Turbine Protection: Coordinating rapid-response valve closures.

Technical Specifications

• Number of Channels: 16 (Isolated)
• Nominal Voltage: 24 V DC
• Maximum Current: 2.0 A per channel (steady state)
• Minimum Load: 10 mA
• On-State Voltage Drop: Less than 2 V DC
• Safety Rating: SIL 3 certified
• Operating Temperature: 0 °C to 60 °C
• Point-to-Point Isolation: 1500 V DC
