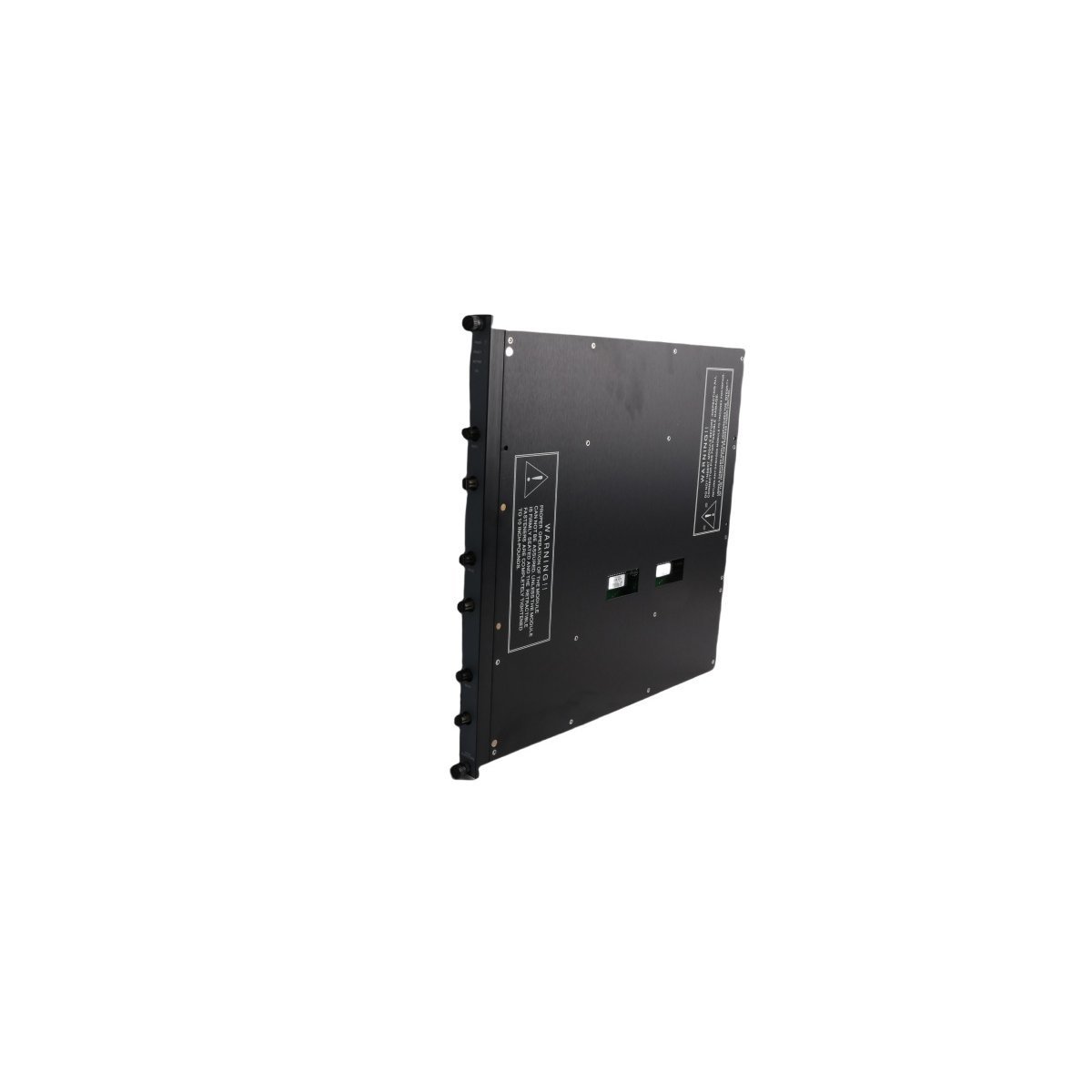

Triconex 4200N Remote Extender Module (RXM)

Product Overview

The Triconex 4200N functions as a high-performance Remote Extender Module (RXM) specifically for the Tricon Triple Modular Redundancy (TMR) system. Furthermore, it enables the physical extension of the Tricon backplane, which allows users to position remote I/O chassis several kilometers away from the main controller. This capability proves essential for large-scale industrial sites—such as refineries and offshore platforms—where I/O points span vast areas yet require centralized control from a single safety-instrumented system (SIS).

Core Functional Capabilities

• Extends System Reach via Fiber Optics: By utilizing advanced fiber optic cabling, the 4200N transmits data between the primary controller and remote racks. Consequently, this optical link provides total electrical isolation and immune-to-EMI communication over distances exceeding 10 kilometers.
• Maintains Triple Modular Redundancy (TMR): The module actively preserves the high-integrity safety architecture of the Tricon system. Specifically, it operates in sets of three to ensure that the “Two-Out-Of-Three” (2oo3) voting logic remains intact across the remote extension, thereby eliminating single points of failure.
• Ensures High-Speed Data Synchronization: The RXM manages the high-speed bus extension with minimal latency. In doing so, it synchronizes data across the extended backplane and ensures that remote I/O modules respond to safety logic with the same deterministic speed as local modules.
• Provides Galvanic Isolation: Because it uses fiber optic media, the 4200N shields the main control cabinet from ground loops, lightning strikes, and high-voltage surges. This protection becomes particularly vital for equipment located at remote field locations.
• Simplifies Large-Scale Integration: The module integrates seamlessly with Triconex TriStation 1131 software. As a result, engineers configure and monitor remote I/O points as if they resided in the local rack, which effectively reduces programming complexity and commissioning time.

Technical Specifications

• Brand: Triconex (Schneider Electric)
• Model Number: 4200N
• Module Type: Remote Extender Module (RXM)
• Connectivity: Fiber Optic (Multimode or Singlemode options)
• Distance Support: Up to 12 km (depending on fiber type and configuration)
• Net Weight: 1.88 kg
• Dimensions: 2.2 cm x 40.5 cm x 40.0 cm
• Manufacturing Origin: USA
• HS Code: 8537101190

Industrial Implementation

Safety engineers strategically deploy the Triconex 4200N in environments that demand distributed safety control without sacrificing centralized processor speed. For instance, it serves as a standard component in Emergency Shutdown (ESD) and Fire and Gas (F&G) systems. In these setups, the 4200N connects field sensors in remote satellite instrument houses (SIH) to the main SIS over a secure, redundant fiber loop. Moreover, its rugged design and “active” status ensure it meets the rigorous reliability demands of continuous-process industries, ultimately preventing unnecessary shutdowns caused by signal degradation over long distances.
