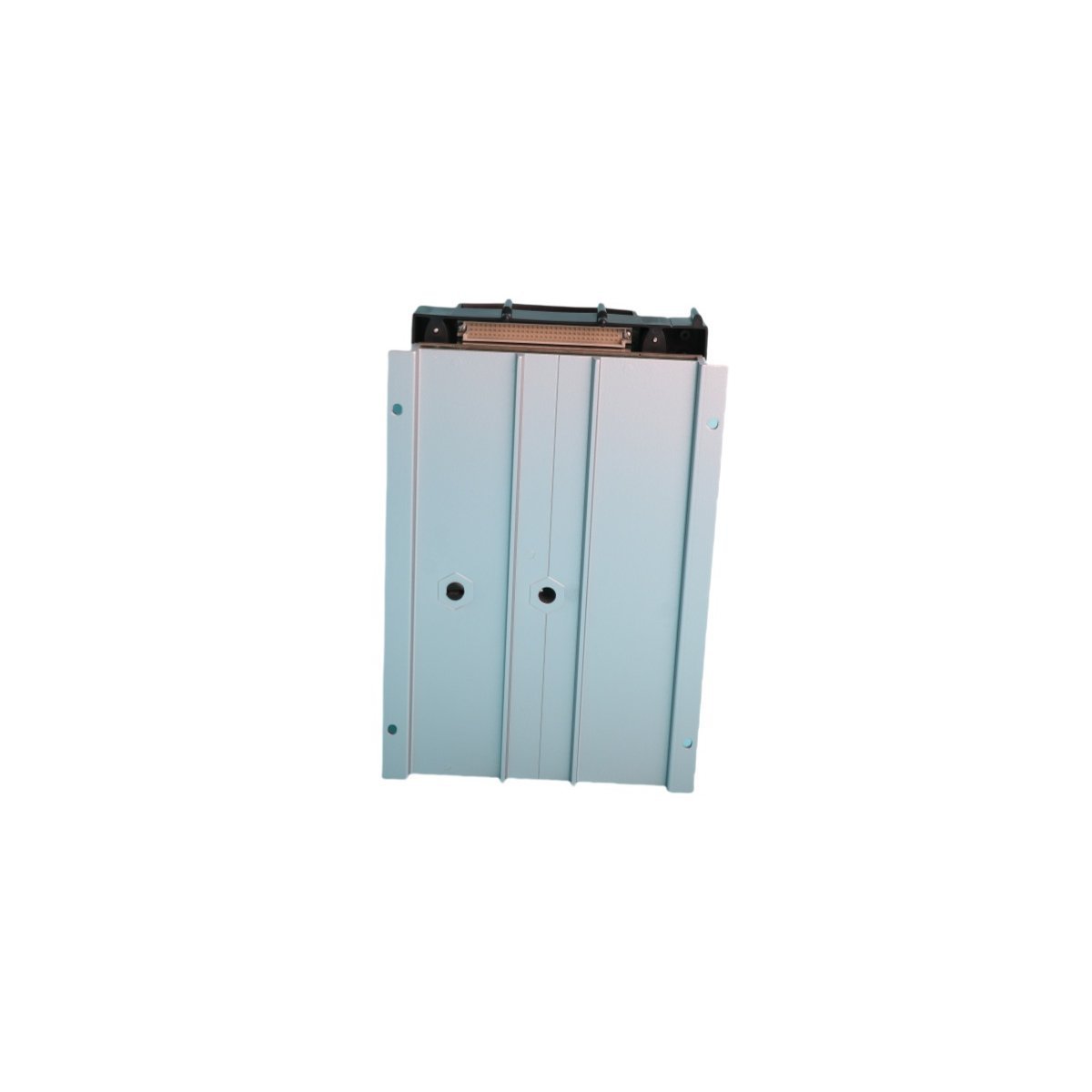

The Triconex 7400221-100 (PI2381) is a high-performance pulse input baseplate designed for the Tricon TMR safety system. Engineered to support the 2381 Pulse Input modules, this baseplate provides the secure signal distribution, high-frequency integrity, and redundant architecture required for SIL 3-rated turbine speed monitoring and overspeed protection.
The Triconex 7400221-100, specifically designated as the PI2381 Baseplate, operates as a specialized field termination assembly within the Tricon Triple Modular Redundant (TMR) safety system. This component functions as the critical physical interface that bridges the gap between high-speed field pulse sensors and the 2381 Pulse Input modules. Because pulse signals—often used for turbine speed monitoring—require high signal integrity and low interference, the PI2381 provides a dedicated, electrically stable environment for signal routing. By utilizing a ruggedized backplane design, this baseplate ensures that the TMR architecture receives clean, high-frequency data for critical overspeed protection and flow measurement.
The 7400221-100 manages high-frequency pulse data by distributing incoming signals across the three redundant paths inherent to the Tricon system. To facilitate maximum safety, the baseplate supports the installation of redundant 2381 Pulse Input modules, allowing the system to maintain operation even during a module failure or replacement. Furthermore, the unit incorporates integrated termination resistors and grounding points specifically tuned for pulse-width modulation (PWM) and frequency-based inputs. Moreover, since the PI2381 utilizes standardized multi-pin connectors, it streamlines the integration of field wiring with the internal system bus.
Transitioning from physical signal acquisition to logic processing, the baseplate coordinates the power distribution required for active sensors. In addition to its primary routing functions, the 7400221-100 includes dedicated test points that allow technicians to verify signal quality without disconnecting the field wiring. Consequently, this design minimizes the risk of accidental loop breaks during routine maintenance. As a result, the PI2381 baseplate provides the high-reliability foundation necessary for SIL 3-rated safety instrumented functions, particularly in high-speed rotating equipment and turbomachinery control.
