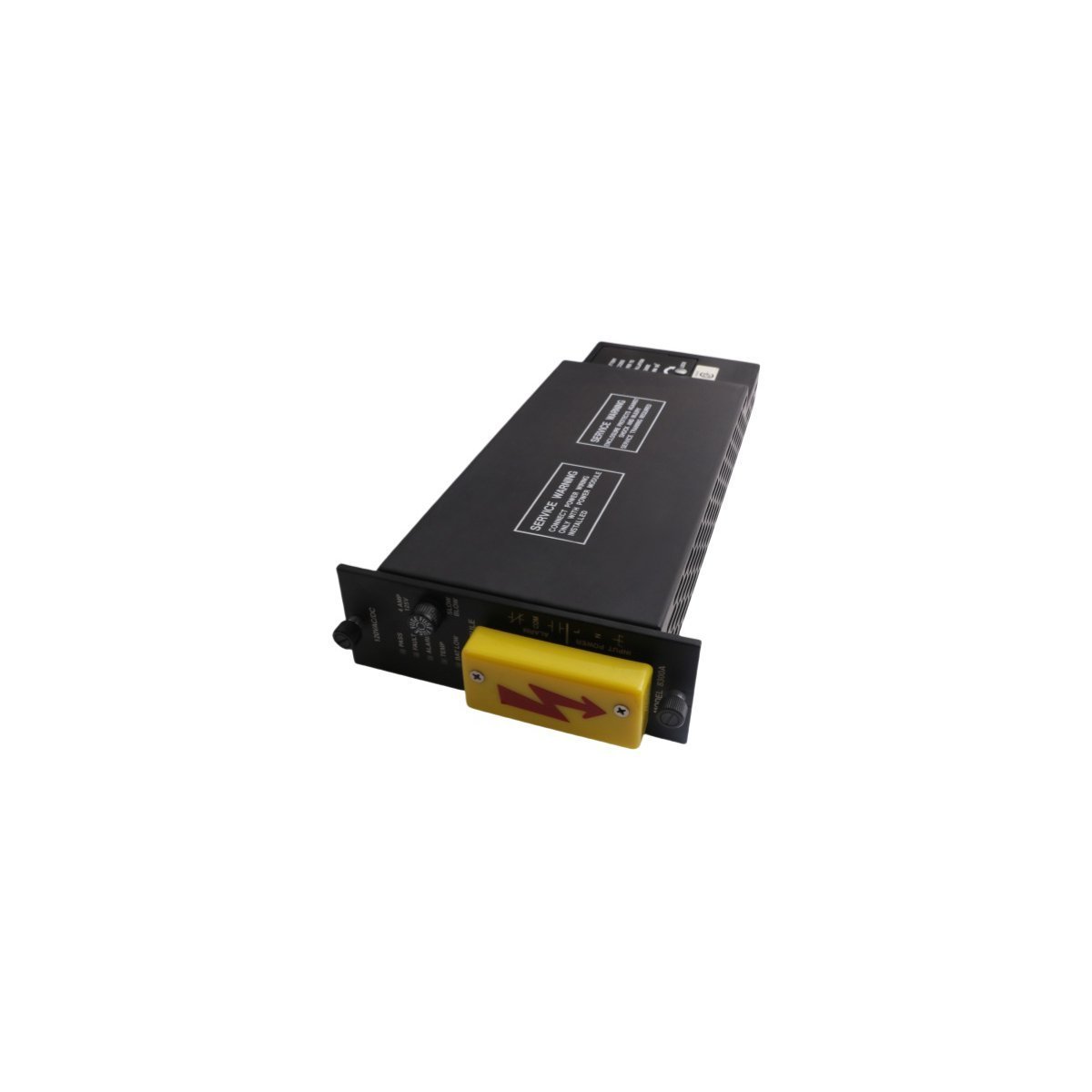

The Triconex 8300A is a high-reliability 120 VAC Power Supply Module designed for the Tricon TMR main chassis. Supporting parallel redundancy and hot-swap capabilities, this module delivers the stabilized DC power required for SIL 3 safety systems, featuring integrated over-temperature protection and comprehensive diagnostic monitoring for mission-critical industrial automation.
The Triconex 8300A operates as a high-capacity Power Supply Module (PSM) specifically engineered for the Tricon Triple Modular Redundant (TMR) controller chassis. This module functions as the primary energy conversion unit, transforming external 120 VAC input power into the regulated DC voltages required to energize the main processors, I/O modules, and the communication backplane. Because the Tricon platform prioritizes “fault-tolerant” operation, the 8300A serves as a critical link in the system’s power management strategy. By maintaining high-precision voltage regulation and internal electrical isolation, the module ensures that line-side disturbances do not compromise the integrity of the safety-instrumented system (SIS).
The 8300A manages electrical distribution through a sophisticated load-sharing architecture. In a standard Tricon chassis, two power modules (typically an 8300A and a redundant counterpart) function in parallel to provide a “Summable” or redundant power configuration. If one power supply fails or loses its input source, the second module immediately assumes the full load without any interruption to the controller logic. Furthermore, the unit incorporates advanced diagnostic circuitry that monitors internal health, including over-temperature conditions and output voltage deviations. Transitioning from raw power to system health data, the module communicates its status directly to the main processors for real-time alarming.
To further increase system resilience, the 8300A features integrated protection against overvoltage, overcurrent, and short-circuit conditions on the backplane. Moreover, since the module supports a “Hot-Replacement” philosophy, maintenance personnel can swap a faulty power supply while the safety system remains fully operational. In addition to its primary conversion role, the 8300A includes a specialized mechanical locking mechanism to prevent accidental disconnection during periods of high vibration. Consequently, the module provides a stable electrical foundation for achieving SIL 3 safety integrity in demanding environments. As a result, the 8300A remains a preferred choice for large-scale industrial facilities that cannot afford unscheduled downtime.
