SKU: DO3201

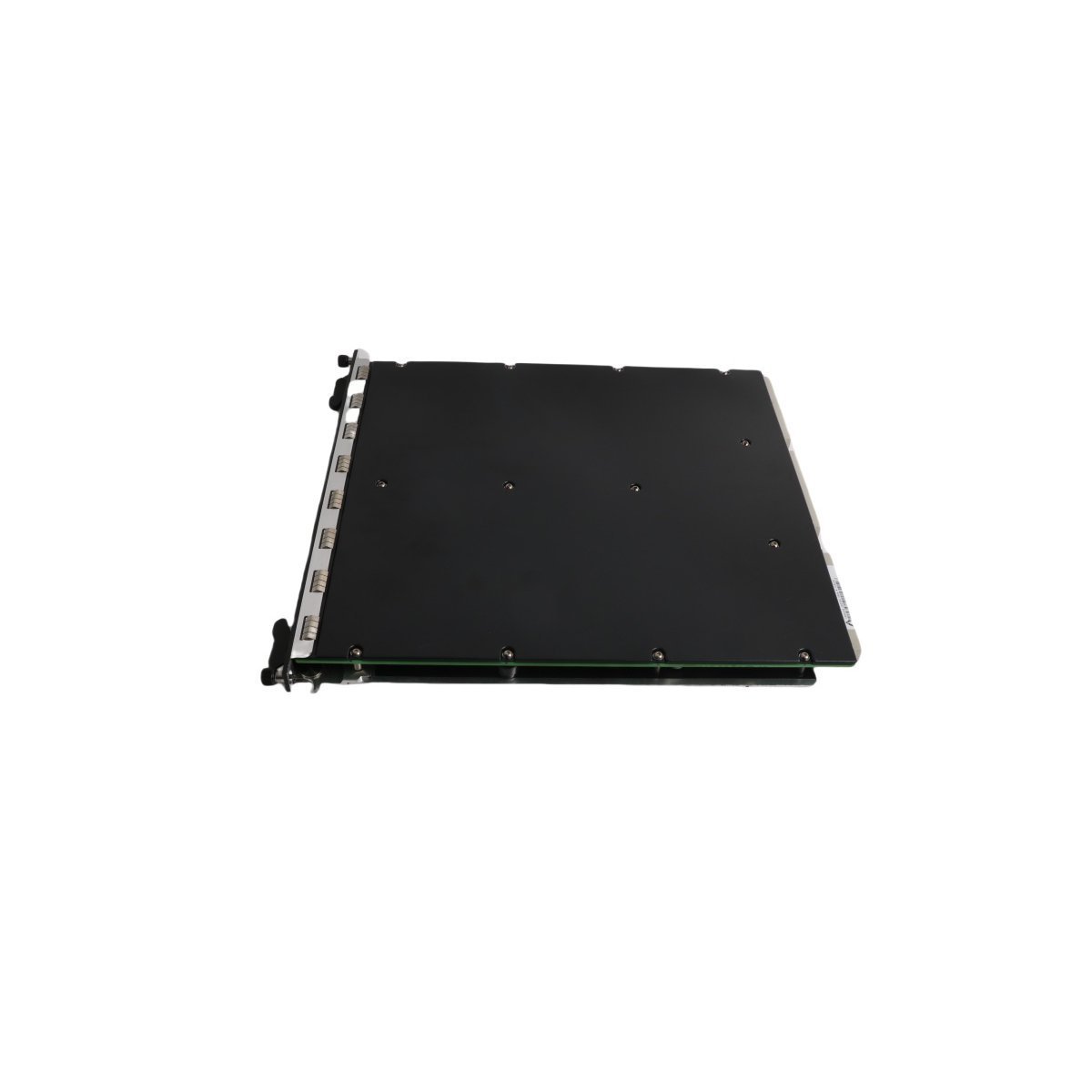

Triconex DO3201 Digital Output Module

The Triconex DO3201 is a TMR (Triple Modular Redundant) digital output module designed for the Triconex Safety System. It features SIL3 certification from TÜV Rheinland and provides fault-tolerant control for emergency shutdown and critical safety applications in high-risk industrial environments.

Product Overview

The Triconex DO3201 is a high-performance digital output module that serves as a vital component within the EcoStruxure Triconex Safety Instrumented System (SIS). Engineered for the most demanding industrial environments, this module translates logic commands into field actions while maintaining the system’s strict safety standards. It delivers the fault tolerance required for critical control applications, ensuring that hazardous processes remain within safe operating boundaries.

Triple Modular Redundant (TMR) Architecture

The DO3201 module utilizes Triconex’s signature Triple Modular Redundant (TMR) technology to eliminate single points of failure.

Execute Parallel Processing: The module operates through three identical, independent channels that process calculations and logic in parallel.
Implement Hardware Voting: An internal voting mechanism compares the data from all three channels. The system adopts the majority result as the final output, which ensures that a single channel failure never interrupts the field signal.
Deliver Seamless Fault Tolerance: By maintaining active redundancy, the DO3201 provides error-free control even during hardware malfunctions, allowing the plant to continue operation safely while technicians address the fault.

Safety Certification and Reliability

As a cornerstone of modern safety systems, the DO3201 meets the highest international benchmarks for risk reduction.

Achieve SIL3 Compliance: TÜV Rheinland has certified the DO3201 for use in Safety Integrity Level 3 (SIL3) applications. This certification confirms the module’s suitability for high-risk environments where failure is not an option.
Reduce Unplanned Downtime: The module’s self-diagnostic capabilities identify internal faults immediately. This proactive monitoring minimizes the chance of “spurious trips” or unplanned shutdowns, protecting both equipment and production schedules.
Ensure Continuous Safeguarding: Even during module testing or light maintenance, the DO3201 maintains its protective functions, providing a constant safety shield for the facility’s assets and personnel.

Primary Industrial Applications

Operators deploy the Triconex DO3201 in sectors where precision and reliability are paramount:

Emergency Shutdown (ESD): Triggers safety valves and actuators to bring a process to a safe state during a crisis.
Fire and Gas (F&G) Systems: Activates alarms, suppression systems, and ventilation controls.
Burner Management Systems (BMS): Manages fuel shut-off valves and ignition sequences in industrial furnaces.
Turbine Control: Provides overspeed protection and critical trip logic for high-speed rotating equipment.
