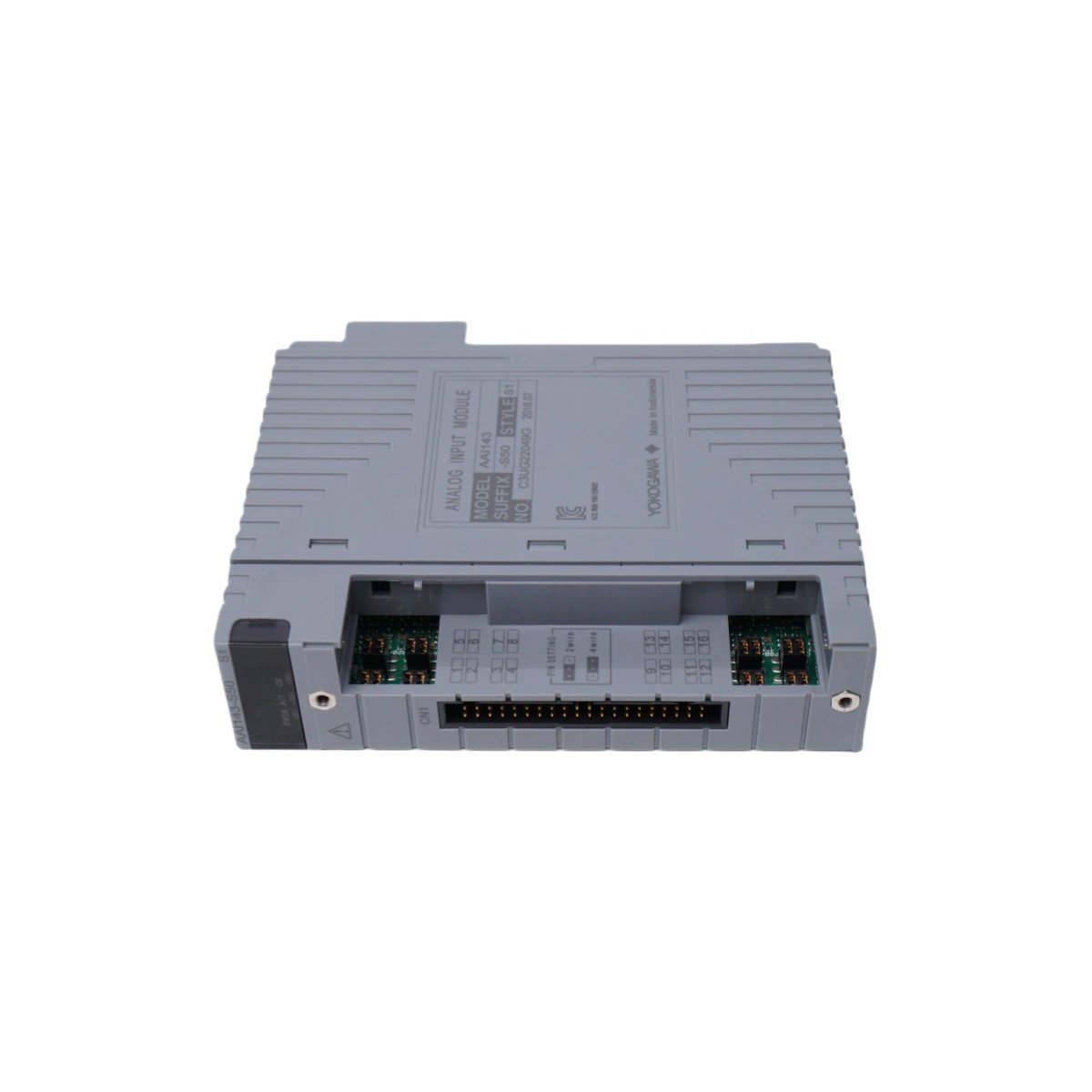

The Yokogawa AAI143-S50 is a 16-channel analog input module for CENTUM VP systems. It processes 4-20 mA signals with ±0.1% accuracy and supports HART 7. This isolated module features hot-swap capability and SIL2 compliance for critical industrial monitoring.
The Yokogawa AAI143-S50 serves as a high-density analog input interface for the CENTUM VP distributed control system. This module provides 16 channels for 4 to 20 mA direct current signal acquisition. Furthermore, it incorporates advanced signal conditioning to ensure high-precision data processing. Engineers utilize this hardware to interface field transmitters with the control network efficiently. The module architecture prioritizes signal integrity and long-term stability in industrial environments.
This module features complete channel-to-channel isolation to prevent electrical interference. Consequently, ground loops do not compromise the accuracy of individual measurements. The AAI143-S50 supports the HART 7 protocol for smart device management. This allows technicians to perform remote diagnostics and configuration on field instruments. Additionally, the hot-swap capability enables module replacement without interrupting the active process.
Reliability remains a primary benefit of the AAI143-S50 design. The unit complies with SIL2 safety standards for critical control loops. It also carries ATEX and IECEx certifications for hazardous area use. Integrated LED indicators provide immediate status updates regarding module health. These visual cues simplify troubleshooting and maintenance for plant personnel. The robust construction withstands harsh conditions typically found in heavy industry.
The AAI143-S50 operates effectively across diverse sectors including oil, gas, and chemicals. It monitors critical parameters such as pressure, flow, and level. Refineries use this module to maintain precise control over distillation processes. Power plants rely on its accuracy for boiler and turbine monitoring systems. Furthermore, its high channel density helps reduce the overall footprint of control cabinets. This makes it an ideal choice for facility upgrades and new installations alike.
| Characteristic | Data |
| Model Identifier | AAI143-S50 |
| Number of Channels | 16, Isolated |
| Input Signal | 4 to 20 mA DC |
| Accuracy | ±0.1% of Full Scale |
| Input Resistance | 250 Ohms |
| Data Update Cycle | 10 ms |
| HART Communication | Supported (HART 7) |
| System Compatibility | CENTUM VP / CS 3000 |
| Operating Temperature | -20 to 70°C |
| Weight | 0.30 kg |
