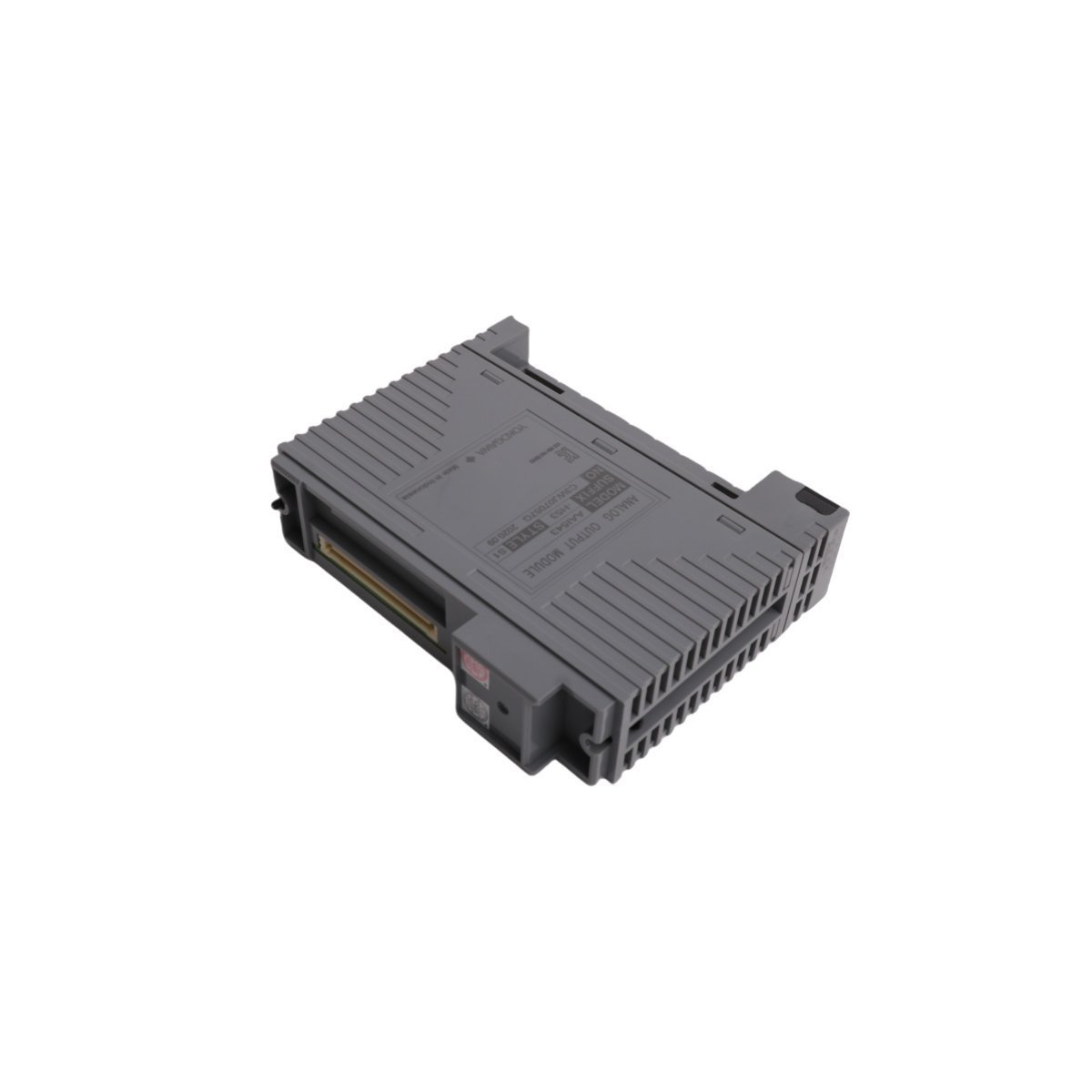

Yokogawa AAI543-H50 Current Output Module

The Yokogawa AAI543-H50 functions as a high-density current output module for the RIO System. This module provides 16 isolated channels designed specifically for 4 to 20 mA signal transmission. It supports HART communication, allowing seamless integration with smart field devices. Engineers typically utilize this module in Centum VP and Centum CS 3000 distributed control systems. The hardware supports dual-redundancy to ensure high system availability. Its compact design helps reduce cabinet space requirements in industrial environments.

Key Features and Functional Benefits

This module features 16 independent output channels with galvanic isolation. Isolation protects the system from ground loops and signal interference. The AAI543-H50 supports hot-swapping during active operation. Users can replace modules without shutting down the entire process. The dual-redundant configuration allows for automatic failover to a standby unit. This capability prevents process interruptions during hardware failures.

The module operates reliably across a wide temperature range. It meets international safety standards for hazardous area installations. Integrated LED indicators provide real-time diagnostic feedback for each channel. These lights help technicians identify loop faults or module errors quickly. The unit uses a standard pressure clamp terminal or dedicated cable connection.

Industrial Applications

The AAI543-H50 serves critical roles in continuous process industries. It controls various final control elements like valves and actuators. Refineries use these modules to manage flow and pressure loops. Chemical plants rely on the 4-20 mA signals for precise dosing operations. Power generation facilities implement this module for turbine and boiler control. The HART compatibility simplifies remote device configuration and asset management.

Technical Specifications
