SKU: AIP504-10

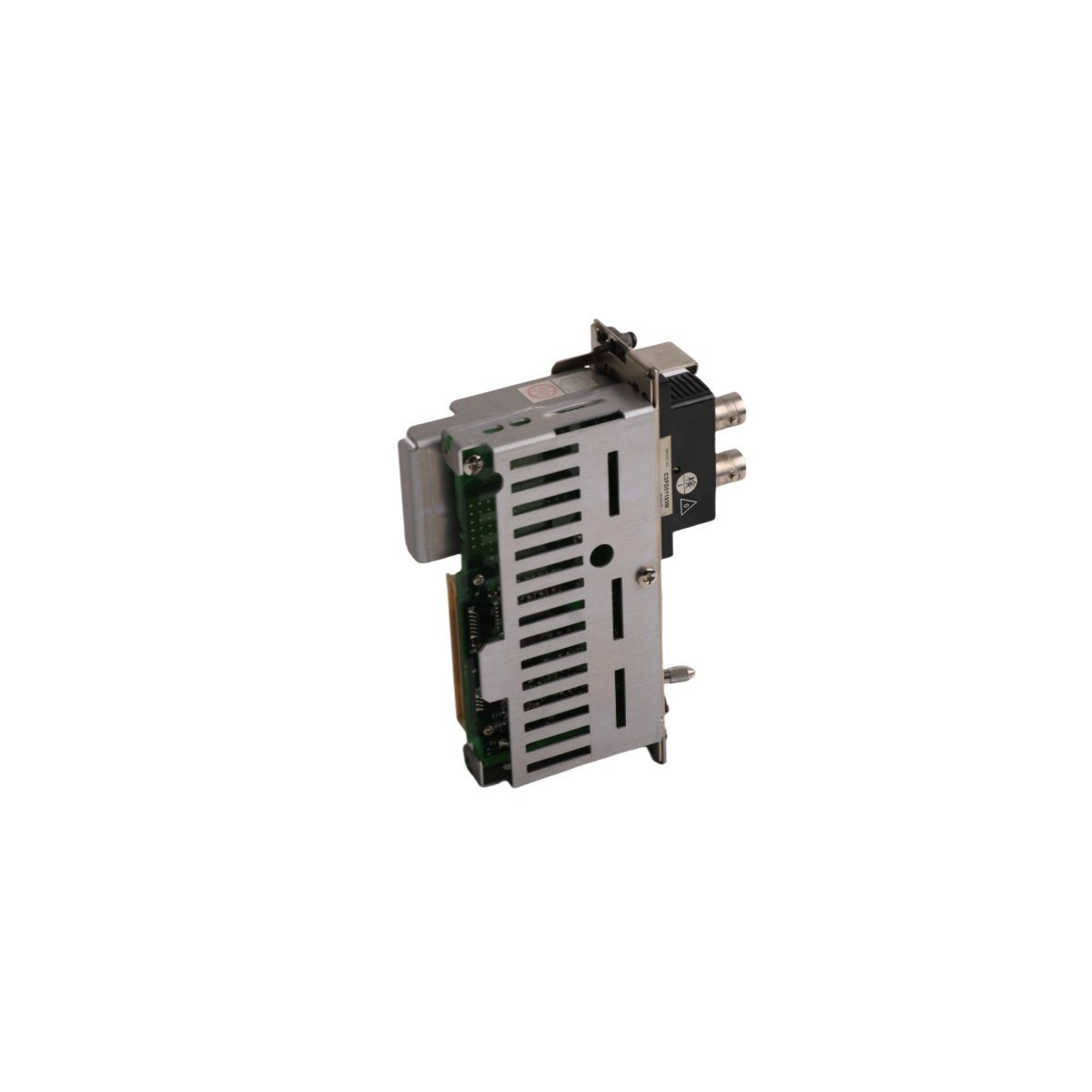

Yokogawa AIP504-10 V-NET Coupler Module for CENTUM DCS

The Yokogawa AIP504-10 is a 100% brand-new V-NET Coupler Module designed for CENTUM DCS networks. It provides high-speed communication bridging and robust signal isolation, ensuring stable data transmission for critical industrial automation and process control applications.

Product Overview

The Yokogawa AIP504-10 serves as a vital communication bridge within the V-NET system architecture, facilitating high-speed data exchange between field control stations and human interface stations. This V-NET Coupler Module ensures that real-time process data flows securely across the control network. Furthermore, the unit acts as a physical interface that manages signal isolation and protocol synchronization, which maintains the integrity of the Distributed Control System (DCS). Consequently, plant operators can rely on the AIP504-10 for consistent, low-latency connectivity in mission-critical automation environments.

Primary Industrial Applications

System engineers typically integrate the Yokogawa AIP504-10 into large-scale plant networks where reliable communication is paramount. Key applications include:

Interfacing field control units with central monitoring systems in chemical processing plants.
Supporting high-availability control networks in oil and gas refineries.
Providing a stable communication link for power generation facility management.
Facilitating data synchronization across distributed nodes in pharmaceutical manufacturing.

Engineering Advantages and Characteristics

The AIP504-10 incorporates several advanced engineering features that optimize network performance and equipment longevity:

High-Performance Signal Coupling: The module utilizes precision electronic components to bridge V-NET segments, ensuring that timing and signal levels remain within strict operational tolerances.
Power Quality Resilience: Because sensitive measurement devices require stable voltage, the AIP504-10 performs optimally when paired with active harmonic filters or high-power-factor UPS units. These external measures suppress electrical noise that could otherwise degrade communication accuracy.
Electromagnetic Compatibility (EMC): The unit complies with European EMC Directives regarding harmonic emissions; therefore, it integrates smoothly into complex control cabinets without causing interference to adjacent 16-bit analog input modules.
Optimized Thermal Design: Yokogawa engineered the hardware with a compact form factor that facilitates efficient heat dissipation, which prevents thermal stress during continuous 24/7 operations.
Simplified Network Expansion: The coupler allows for modular scaling of the V-NET backbone, enabling facilities to add control capacity without reconfiguring the existing network infrastructure.
