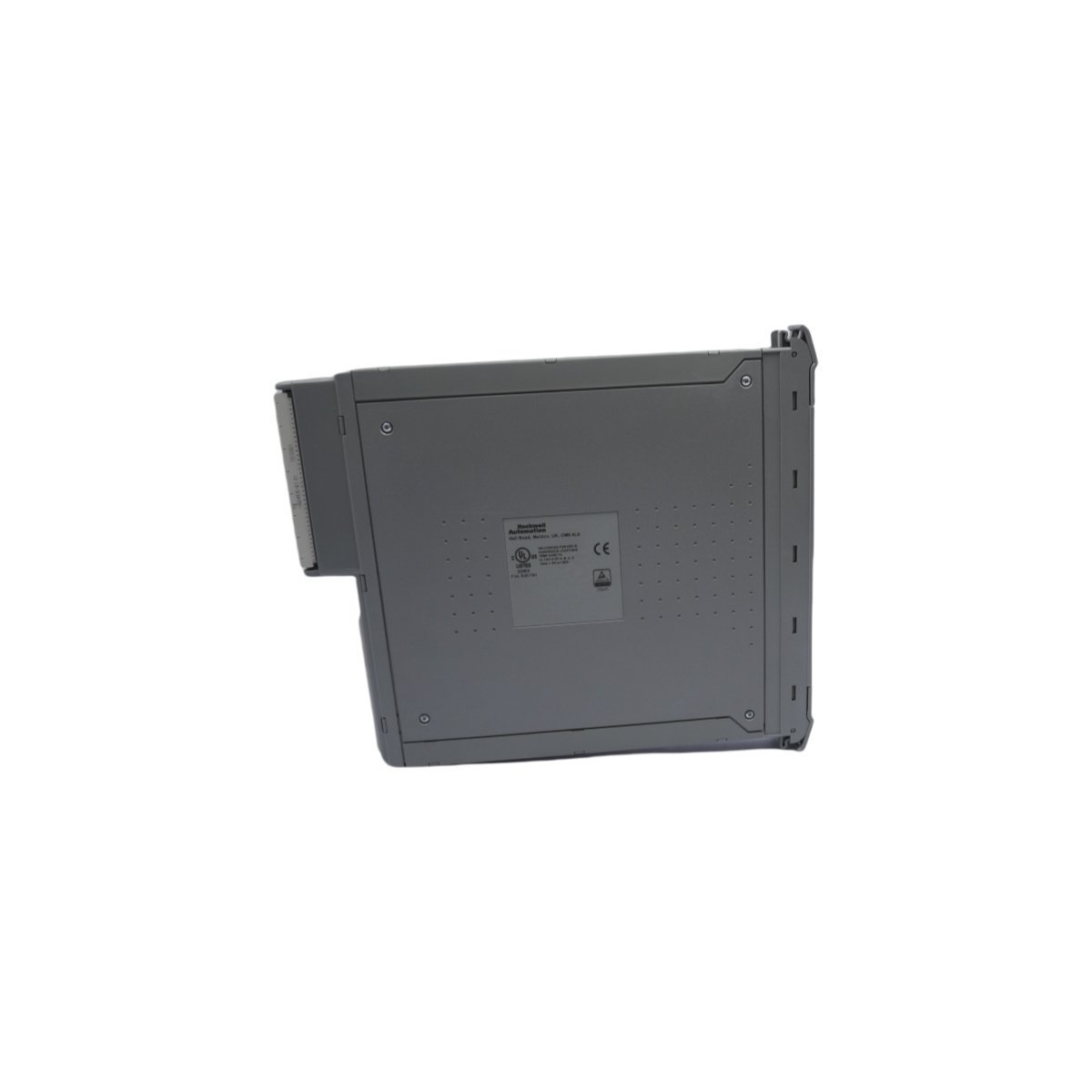

ICS Triplex T8311 Trusted TMR Expander Interface Module

Product Overview

The ICS Triplex T8311 functions as a high-integrity Expander Interface within the Rockwell Automation Trusted Triple Modular Redundant (TMR) system. This module provides the critical communication link required to extend the I/O bus from a main controller chassis to additional expansion chassis. By facilitating high-speed, fault-tolerant data transfer, the T8311 enables large-scale industrial operations to scale their I/O capacity without compromising the Safety Integrity Level (SIL) of the overall system. Furthermore, it manages the distribution of the “Inter-module Bus,” ensuring that the TMR voting architecture remains synchronized across multiple physical racks.

Technical Performance and System Resilience

To maintain mission-critical uptime, the T8311 utilizes a redundant hardware design that aligns with the Trusted system’s philosophy of “safety through diversity.” The module actively manages signal timing and integrity across the expansion cables, effectively neutralizing the impact of electromagnetic interference (EMI). Moreover, because the T8311 features a high-grade aluminum alloy enclosure, it provides superior heat dissipation and physical protection in harsh environments. This thermal management ensures that the internal electronics operate within optimal ranges, thereby extending the module’s lifecycle. Additionally, integrated status LEDs provide local visual diagnostics, allowing technicians to verify link health and power status at a glance.

Technical Specifications

• Manufacturer: ICS Triplex (Rockwell Automation)
• Model Number: T8311
• Module Type: Trusted TMR Expander Interface
• System Series: Trusted Fault Tolerant Control System
• Chassis Compatibility: Main and Expansion Chassis
• Housing Material: High-grade Aluminum Alloy
• Net Weight: 1.18 kg
• Dimensions: 3.1 cm x 30.2 cm x 26.5 cm
• Communication Interface: Redundant Expander Bus Port
• Power Consumption: Optimized for low-heat dissipation

Industrial Application and Reliability

The T8311 is specifically engineered for high-consequence industries such as petrochemical refining, offshore gas production, and nuclear energy. In these sectors, the expander interface allows for the distribution of I/O modules across different cabinets while maintaining the 2-out-of-3 (2oo3) voting logic essential for safety-instrumented functions. Furthermore, since the module supports hot-swapping, maintenance personnel can replace an interface unit without shutting down the active control loops. This capability, combined with the module’s resistance to single-event upsets (SEUs), ensures maximum process availability. Ultimately, the T8311 provides the flexible, robust infrastructure needed to expand complex automation systems while upholding the strictest global safety standards.
